8.1.5 Calibrating Operation
8-6

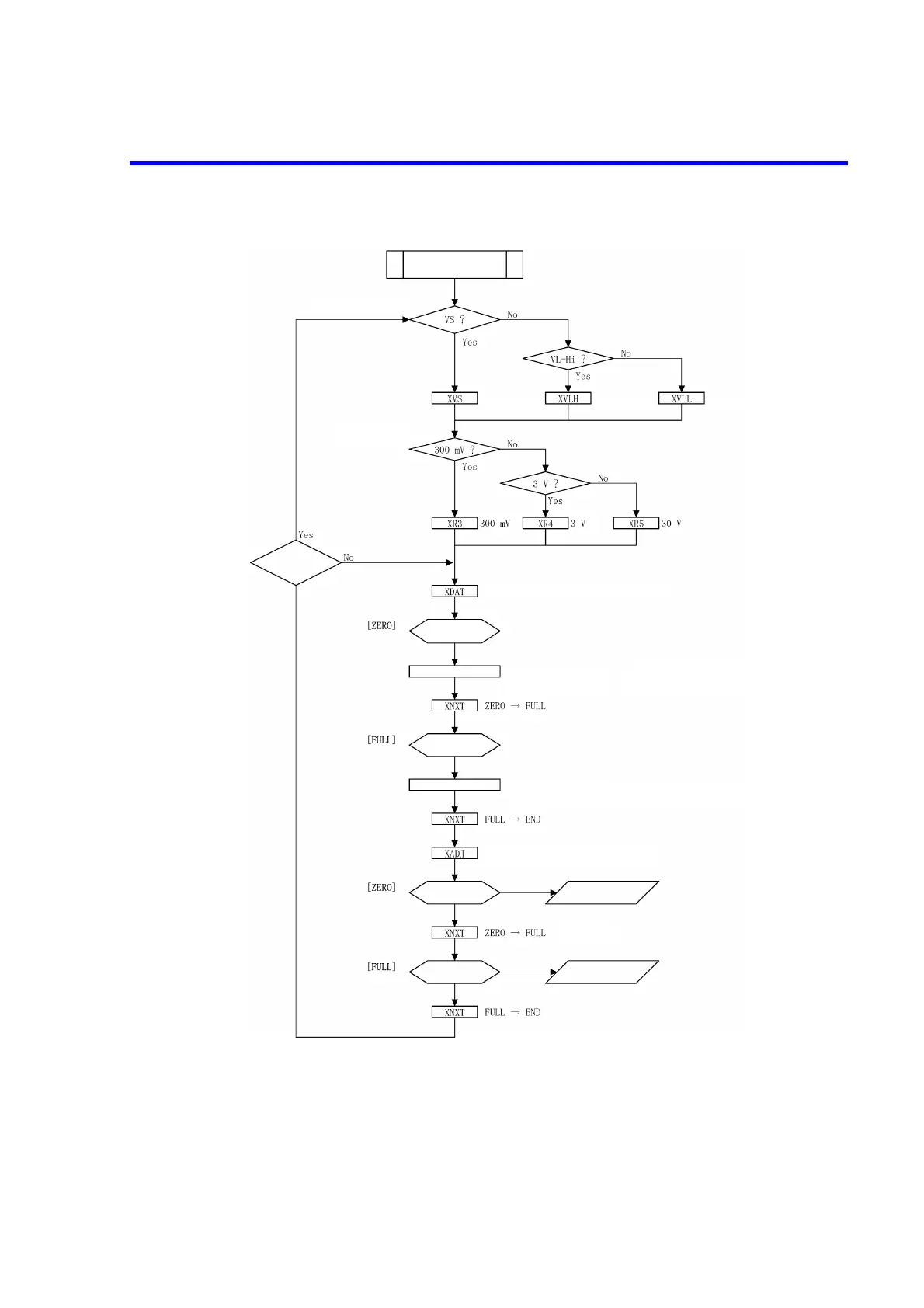

Figure 8-3 6241A Calibration Procedure (2)
Voltage-source and
Limiter calibration
[Set calibration mode]
[Setting range]
VL-Hi mode
Execute the DMM data input.
Acquire
DMM data.
XD DMM data
Input DMM data.
ex. “XD-2.0e-6”
VL-Lo mode
VS mode
Acquire
DMM data.
Execute calibration result check.
Acquire
DMM data.
XD DMM data
Input DMM data.
ex. “XD3003.0e-3”
*Input data outside the set range results in a
parameter error.
Store and display
calibration result data.
Acquire
DMM data.
Store and display
calibration result data.
*Input data outside the set range results in a
parameter error.
Within
tolerance?
