6241A/6242 DC Voltage Current Source/Monitor Operation Manual
4.2.6 MENU Key (Parameter Setting)
4-7
In Random mode
SWEEP VAL
Sweep Adr Sets start and stop addresses in Random Sweep mode. Selects the
parameters by using NULL (SEL).
Bias Value Sets bias value (source value before the sweep start).
PSW Base Sets the Pulse-Sweep base-value.
In the Linear 2 mode
SWEEP VAL
First Value Sets the Two Slope Linear Sweep first value.
Middle Value Sets the Two Slope Linear Sweep middle value.
Last Value Sets the Two Slope Linear Sweep last value.
Step1 Val Sets the Two Slope Linear Sweep Step1 value (first value to mid-
dle value).
Step2 Val Sets the Two Slope Linear Sweep Step2 value (middle value to
last value).
Bias Value Sets the bias value (source value before the sweep start).
PSW Base Sets the Pulse-Sweep base-value.

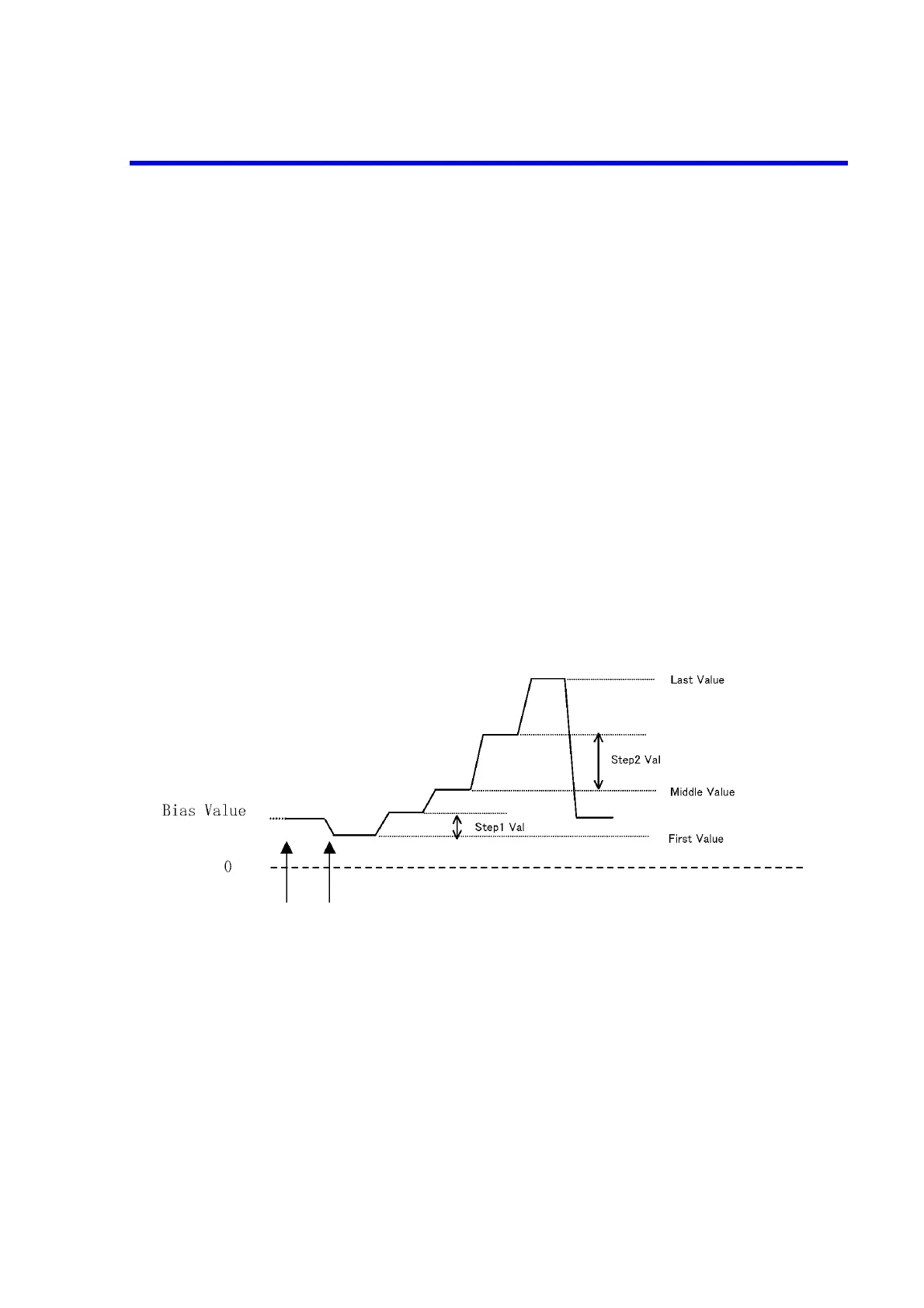

Figure 4-3 Two Slope Linear Sweep
TIME Sets the sweep source time.
Hold Time Sets the time from the start to the starting step-cycle, in the sweep
source mode.
Src Delay Sets the delay time (Tds) from the start of the period (Tp) to the
sweep generation, in the pulse source and sweep source modes.
Meas Delay Sets the delay time (Td) from the measurement trigger to the mea-
surement start.
Pls Width Sets the pulse width (Tw) in the pulse source and sweep source
modes.
