6241A/6242 DC Voltage Current Source/Monitor Operation Manual
2.1.1 Front Panel
2-7
2.1.1.8 Output Section

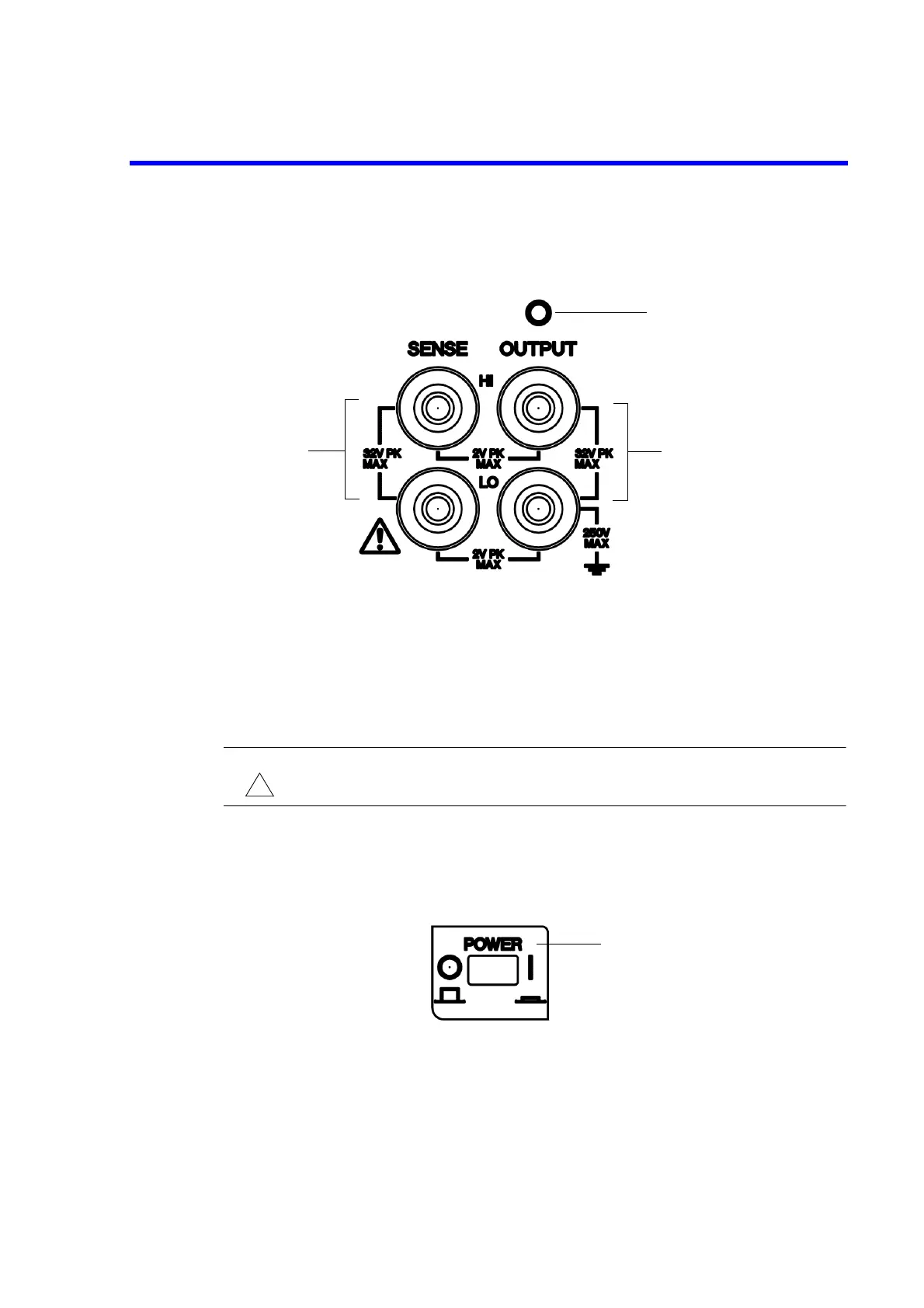

Figure 2-9 Output Section
1. OUTPUT terminal: Voltage and current output terminal
2. SENSE terminal: Functions as a sensing terminals for voltage output in the remote
sense mode (4-wire connection) and input terminals for volt-
age-measurement.
3. OUTPUT Indicator: Lights when the output relay is ON (Operate or Suspended status).
WARNING:
A hazardous voltage is output if an external hazardous voltage is applied to the case, causing
a potential difference between the case and the LO. Electric shock danger.
2.1.1.9 POWER Switch
Figure 2-10 POWER Switch
1. POWER Switch: Turns the power ON or OFF.
