5.2.5 Measurement Function
5-34
5.2.5.3 Measurement Delay Time and Measurement Value

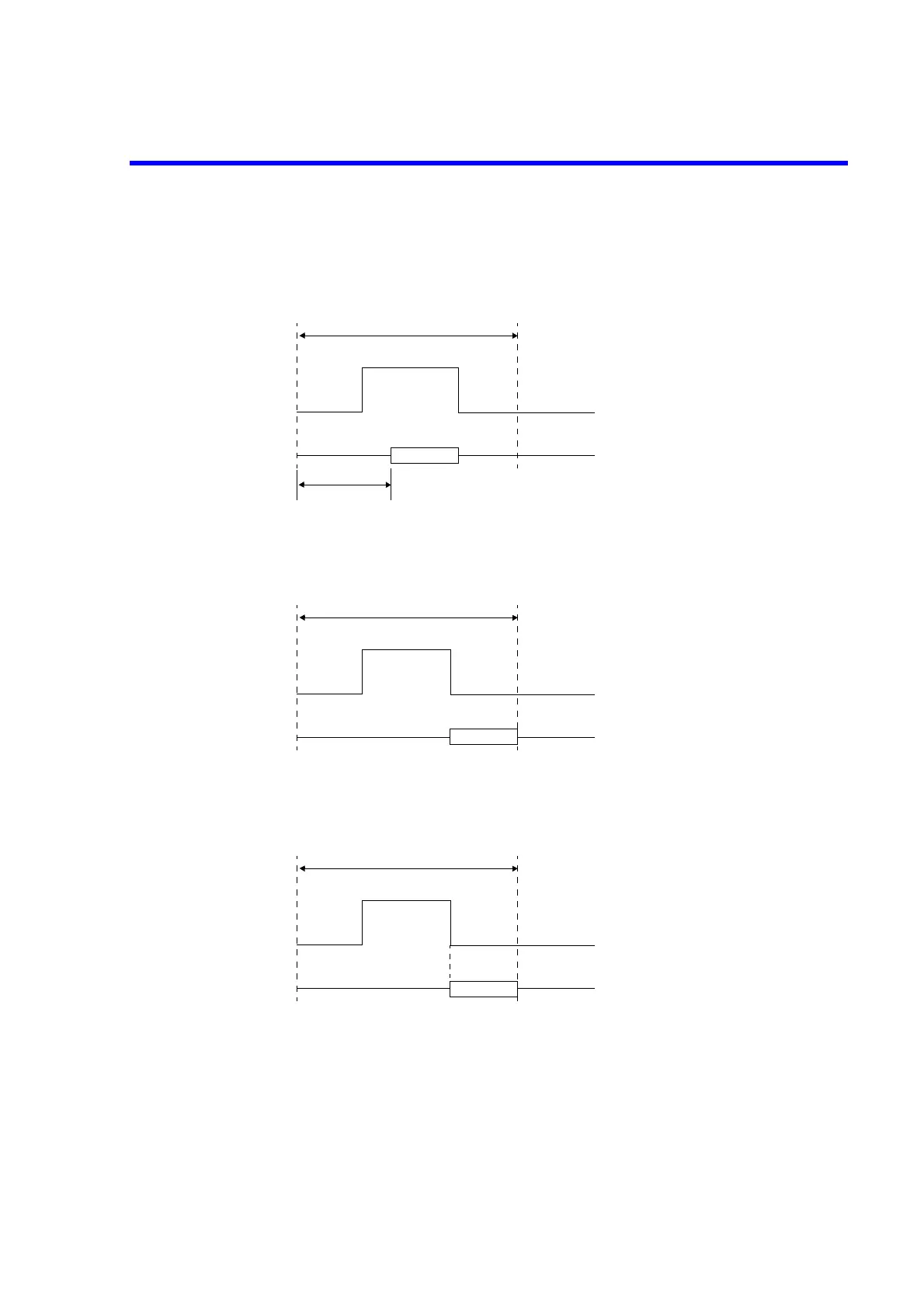

1. Measuring with Pulse Value Timing
When displaying the resistance value, the calculation is made by the measurement value and pulse
value.
2. Measuring with Base Value Timing
When displaying the resistance value, the calculation is made by the measurement value and base val-
ue.
3. Measuring at the Timing Overlapping with Pulse Value and Base Value
The measurement value changes to the value that is proportional to the time ratio of the pulse value
to base value in the measured time. The resistance value is calculated from the measurement value
and pulse value, which makes the value inaccurate.
Pulse source
Tp
Base value
Pulse value
Base value
Td
Measurement
Tp
Base value
Pulse value
Base value
Measurement
Tp
Base value
Pulse value
Base value
Measurement
