6241A/6242 DC Voltage Current Source/Monitor Operation Manual
2.2.2 Setting Limiter Value
2-21
2.2.2 Setting Limiter Value
Press LIMIT to set the limiter value setting screen.
To change the limiter value, follow the procedure described in Section 2.2.1, “Setting Source Value.” How-
ever the range cannot be set. (The optimum range is always displayed.)
HI and LO limiter values have two settings. This section describes the difference between them. (“HL
value” refers to HI limiter value, and “LL value” refers to LO limiter value.)
How to change the setting function is described in the MENU, SOURCE, and LMT Input.
± Balance setting

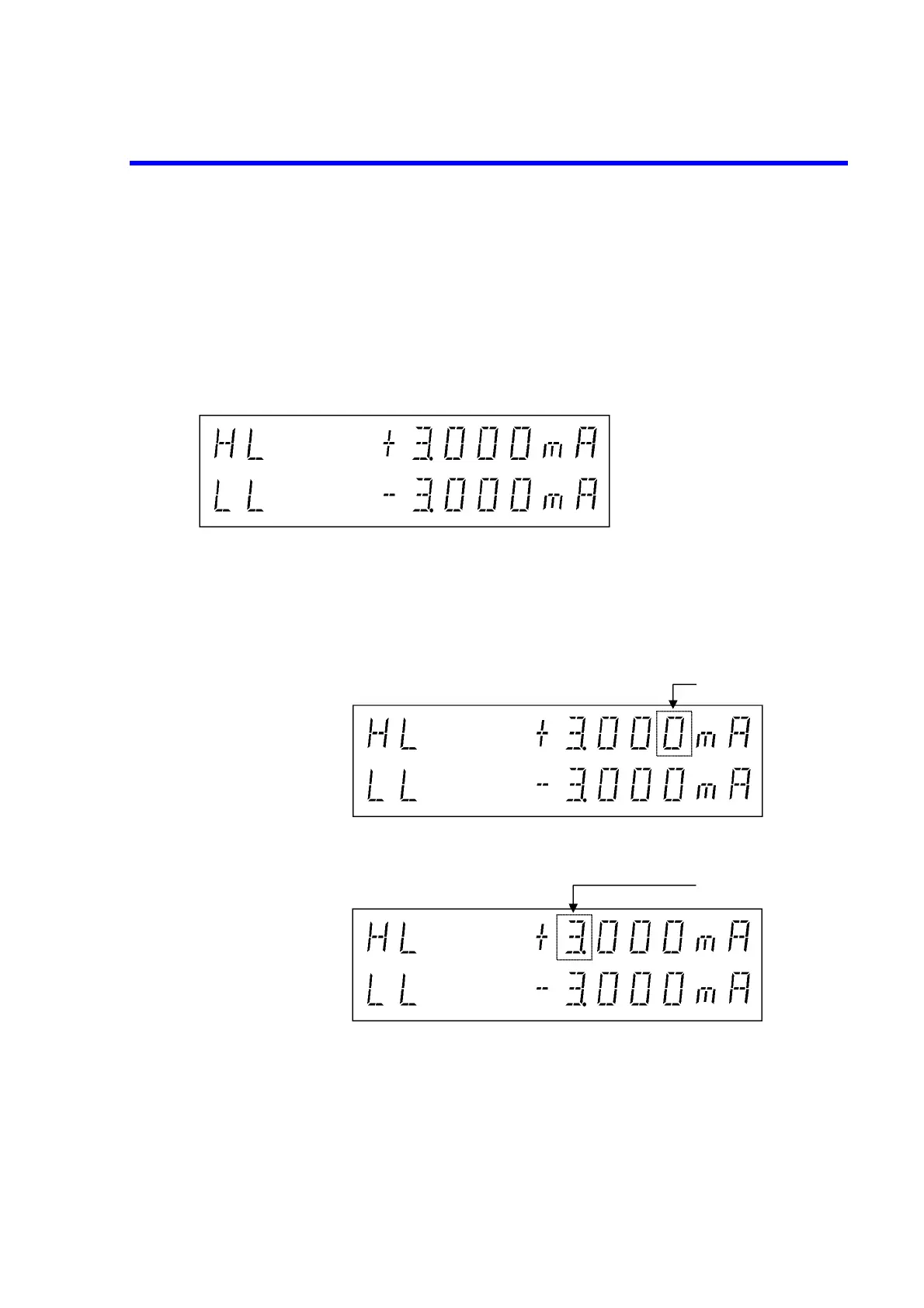

1. Press LIMIT.
The cursor appears on the HL value.
2. Move the cursor to 3.
Cursor (blinking)
Cursor (blinking)
