6241A/6242 DC Voltage Current Source/Monitor Operation Manual
6.5 Status Register Structure
6-11

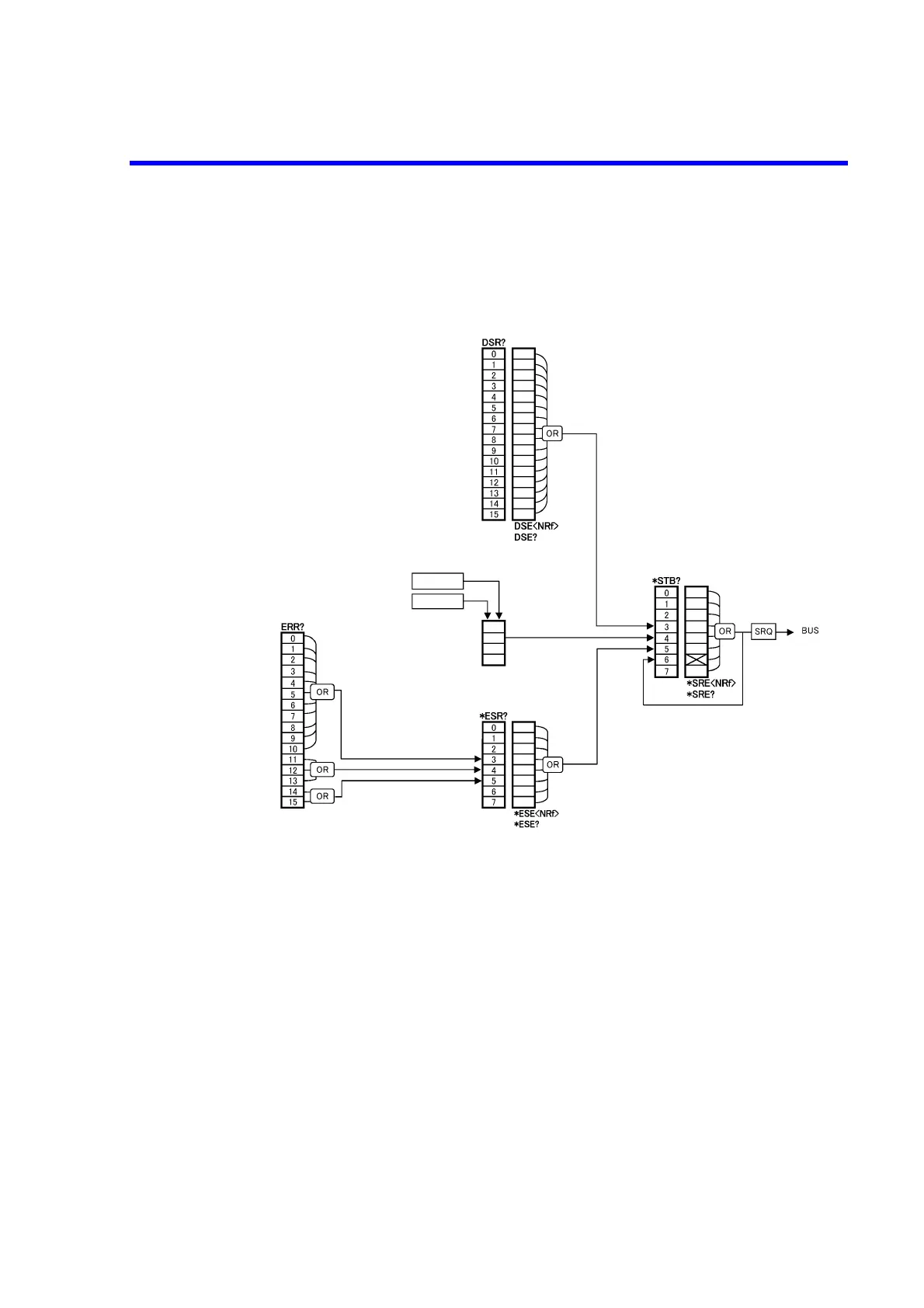

Figure 6-1 below shows the 6241A/6242 status register structure.
Figure 6-1 Structure of Status Register
Status Register Structure
Device Event Status Register
Comparator HI
Comparator GO
Comparator LO
Designated number of memory stored reached
Suspend start
Detect Low side limit
Detect High side limit
Input the external operating interruption signal
Input the external trigger signal
Memory full
Start operation
Calibration completed
Sweep completed
Sweep step completed
Measurement completed
Device Event Status Enable register
Self-test error at power ON
Self-test error
Calibration coefficient loss
Overload
The fan stops
Overheating
Source unit error
Parameter loss*1
Operate relay life
Calculation error
Over range
Command argument error
Command execution error
Command format error
Unknown Command
Error register
Measurement
data
Query data
Standard Event Status register
*OPC Operation has completed
Turn Power OFF and ON
Output buffer
Standard Event Status Enable register
Status Byte Register
Service Request Enable Register
*1: Parameter loss means saved parameter data loss or backup parameter data loss.
