6241A/6242 DC Voltage Current Source/Monitor Operation Manual
5.2.8 Source Timing and Measurement Timing
5-44

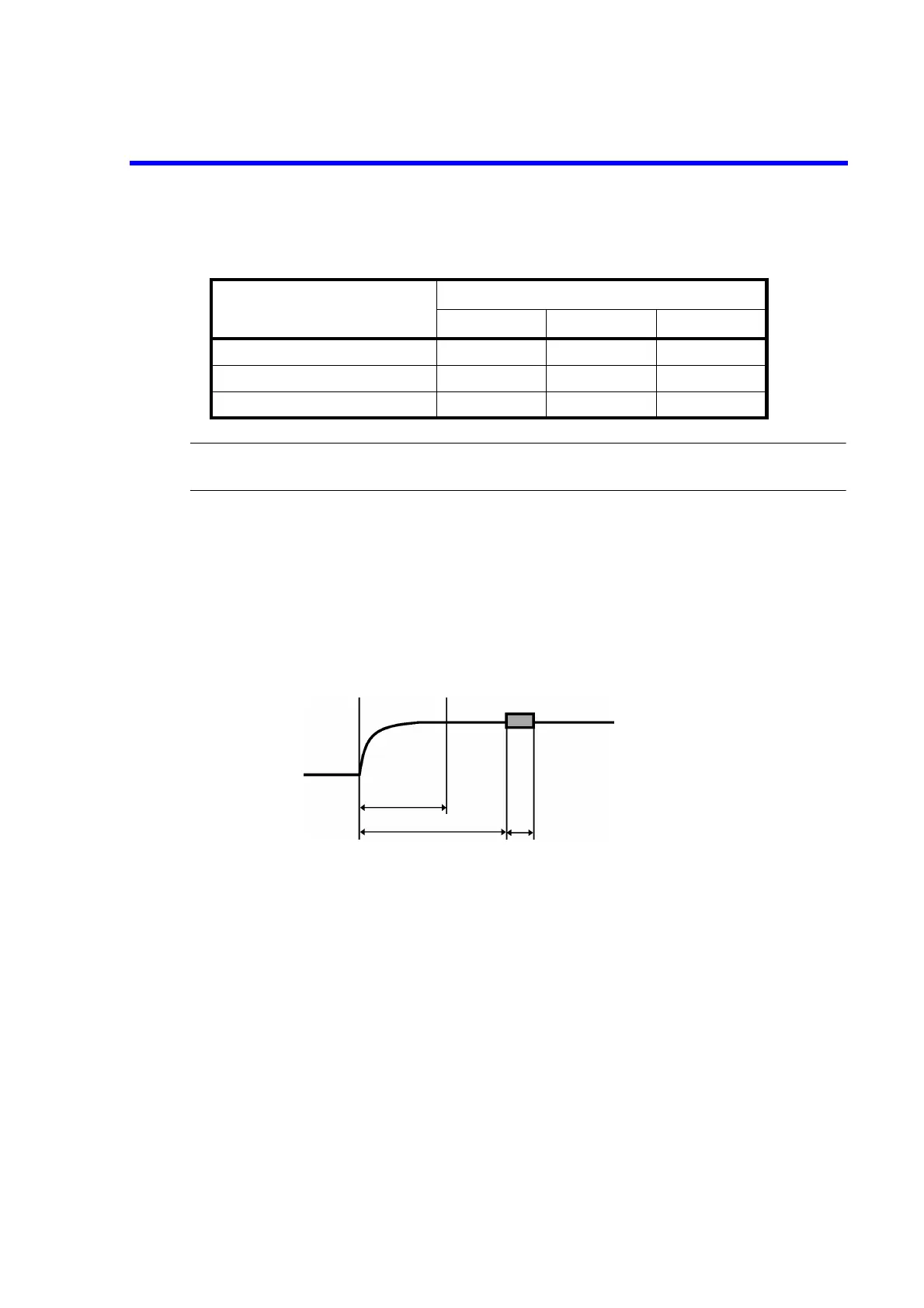

The following table shows rounded-off result and the minimum set value for each resolution.
NOTE: If set as Tp < (Td + Tm), the actual period becomes Td + Tm, and TpALM indicator illuminates. Auto
zero may not execute in some cases.
5.2.8.2 Measurement Delay and Settling Time
In Pulse source and Sweep source mode, the 6241A/6242 waits for a source value and the settling of a
sample and then starts measurement.
This section describes the settling time of the 6241A/6242 and the measurement delay to be set.
1. Switching the settling time
The settling time can be set to enhance the system throughput or to reduce noise and ensure stability
with respect to L and C loads. Select and set A) SOURCE → 5) Response on the Menu screen.
Fast : Fast mode
Slow: Slow mode
Period time
Resolution
10 μs 100 μs1 ms
Source delay time (Tds) 30 μs 200 μs2 ms
Measurement delay time (Td) 50 μs 200 μs2 ms
Pulse width (Tw) 50 μs 100 μs1 ms
TmTd
Ts
Ts : Settling time
(Time to within 0.1% final value)
Td : Measurement delay:
