8.2.3 Connections
8-15
8.2.3 Connections

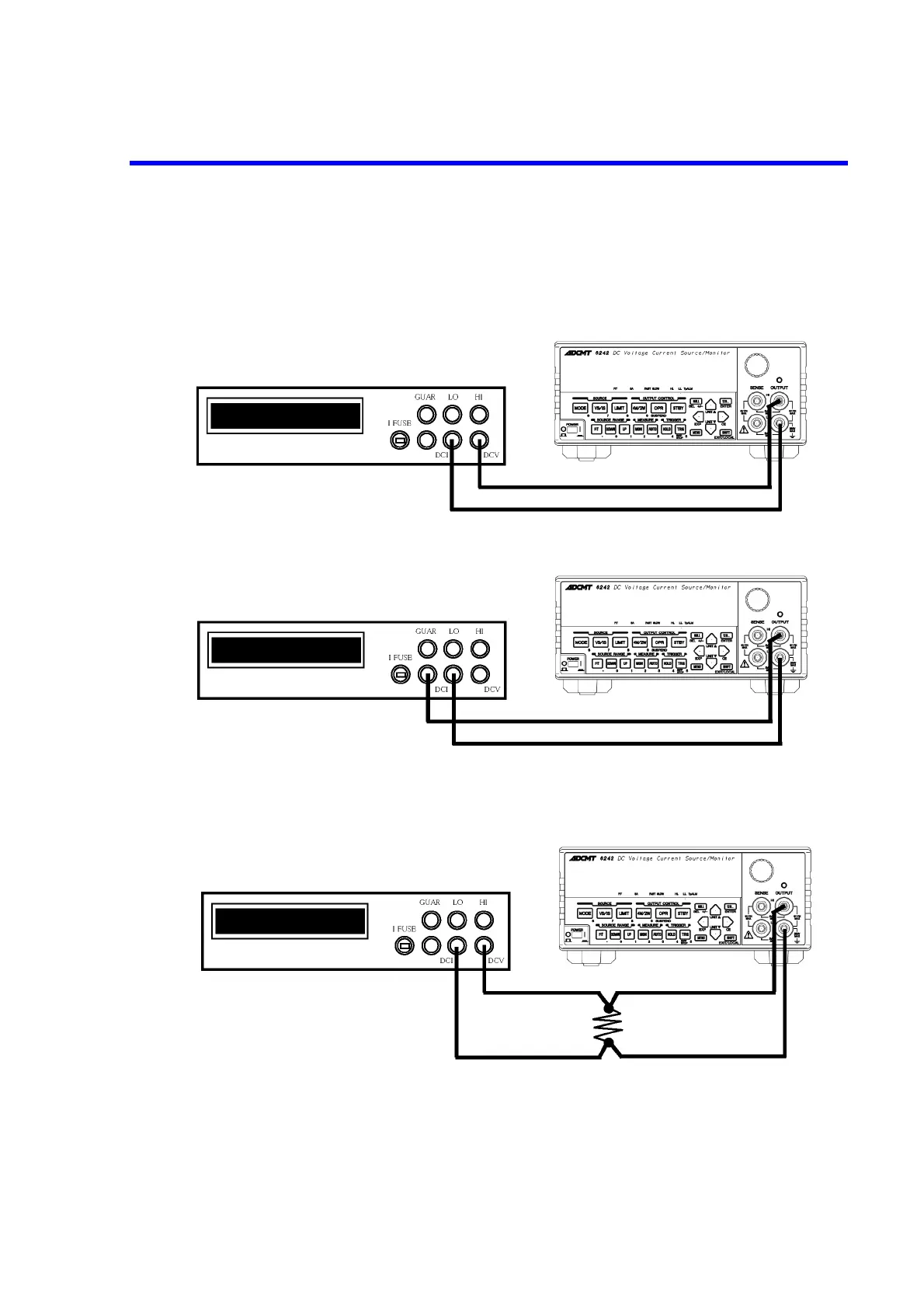

Figure 8-7 below shows the connections for calibration using the 6581.
Figure 8-7 6242 Connections for Calibration
(a) Connections used for confirmation and calibration of Voltage source measurement.
(b) Connections used for confirmation and calibration of Current source measurement
(30 μA to 300 mA range)
6581
6242
6242
(c) Connections used for confirmation and calibration of Current source measurement
(3 A, 5 A range)
6581
6242
Standard resistor (100 mΩ, 10 mΩ)
6581
