6241A/6242 DC Voltage Current Source/Monitor Operation Manual
4.2.6 MENU Key (Parameter Setting)
4-11
CONST Sets constants for calculations.
High Value Sets the comparator-calculation upper-limit value.
Low Value Sets the comparator-calculation lower-limit value.
SCL Val_A Sets Constant A for scaling calculation.
SCL Val_B Sets Constant B for scaling calculation.
SCL Val_C Sets Constant C for scaling calculation.
Null Value Changes Null data when NULL calculation is ON.
Not displayed when NULL calculation is OFF.
EXT SIGNAL Sets the external control signal. The external control signal ports
are on the rear panel.
OPR Signal
Selects the external control signal Input/Output functions of
INTERLOCK/OPERATE IN/OUT.
STBY In:
Sets Standby by changing the input signal from Lo to
Hi. Operate is turned ON by using the key or remote
command.

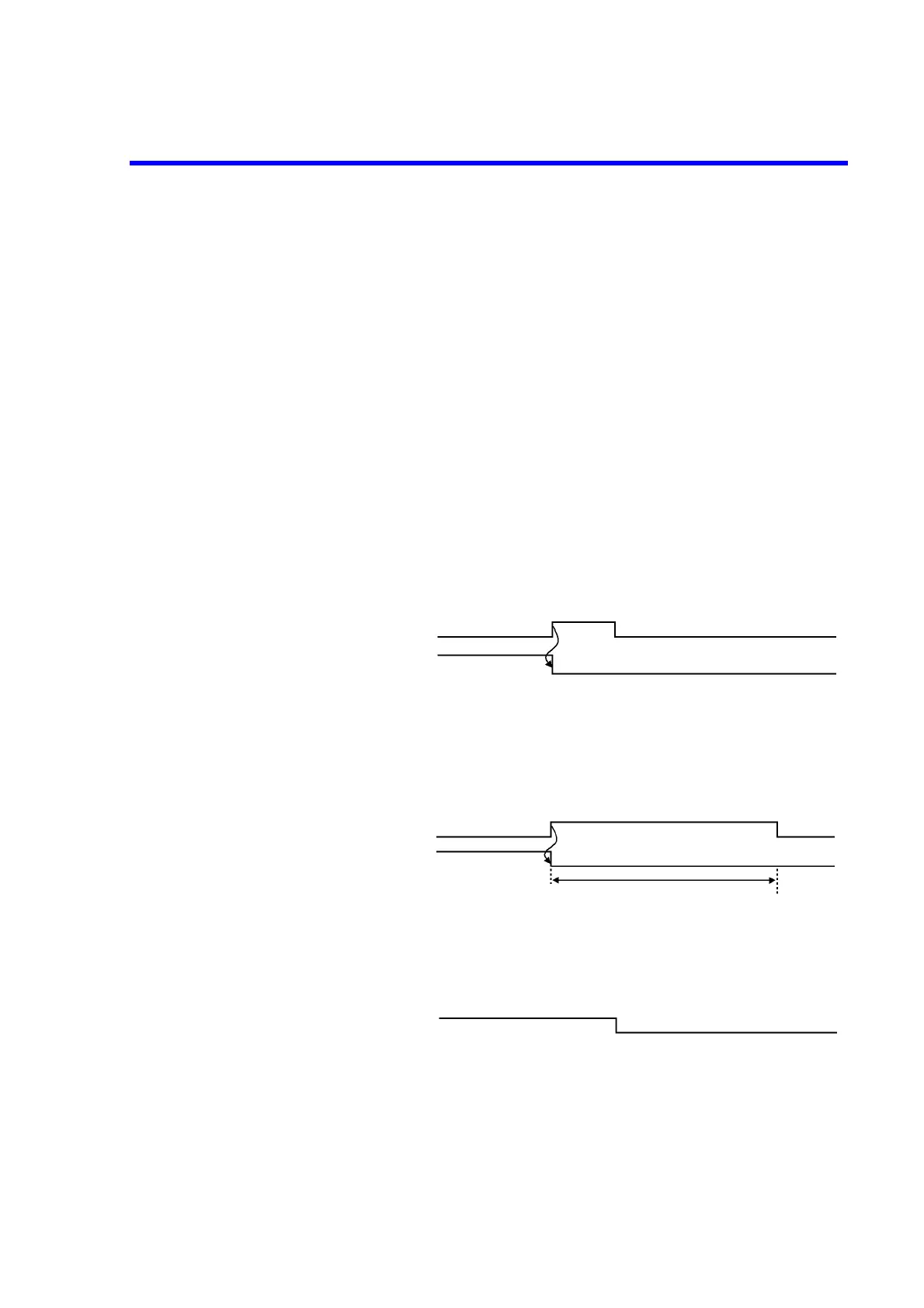

Figure 4-4 STBY In
Inter Lock In
Sets Standby by changing the input signal from Lo to
Hi. While the input signal is Hi, Operate and Suspend
are disabled.
Figure 4-5 InterLock In
Operate Out:
Outputs Lo when the 6241A/6242 is in the Operate, and
Hi in Standby or Suspended status.
Figure 4-6 Operate Out
Inputting STBY In signal
Operating Status
Operate or
Suspend
Standby
Inputting INTERLOCK signal
Operating Status
Operate or
Suspend
Standby
Operate and Suspend are disabled.
Standby or Suspend
Operate
Outputting Operate Out signal
To Next Page
