6241A/6242 DC Voltage Current Source/Monitor Operation Manual

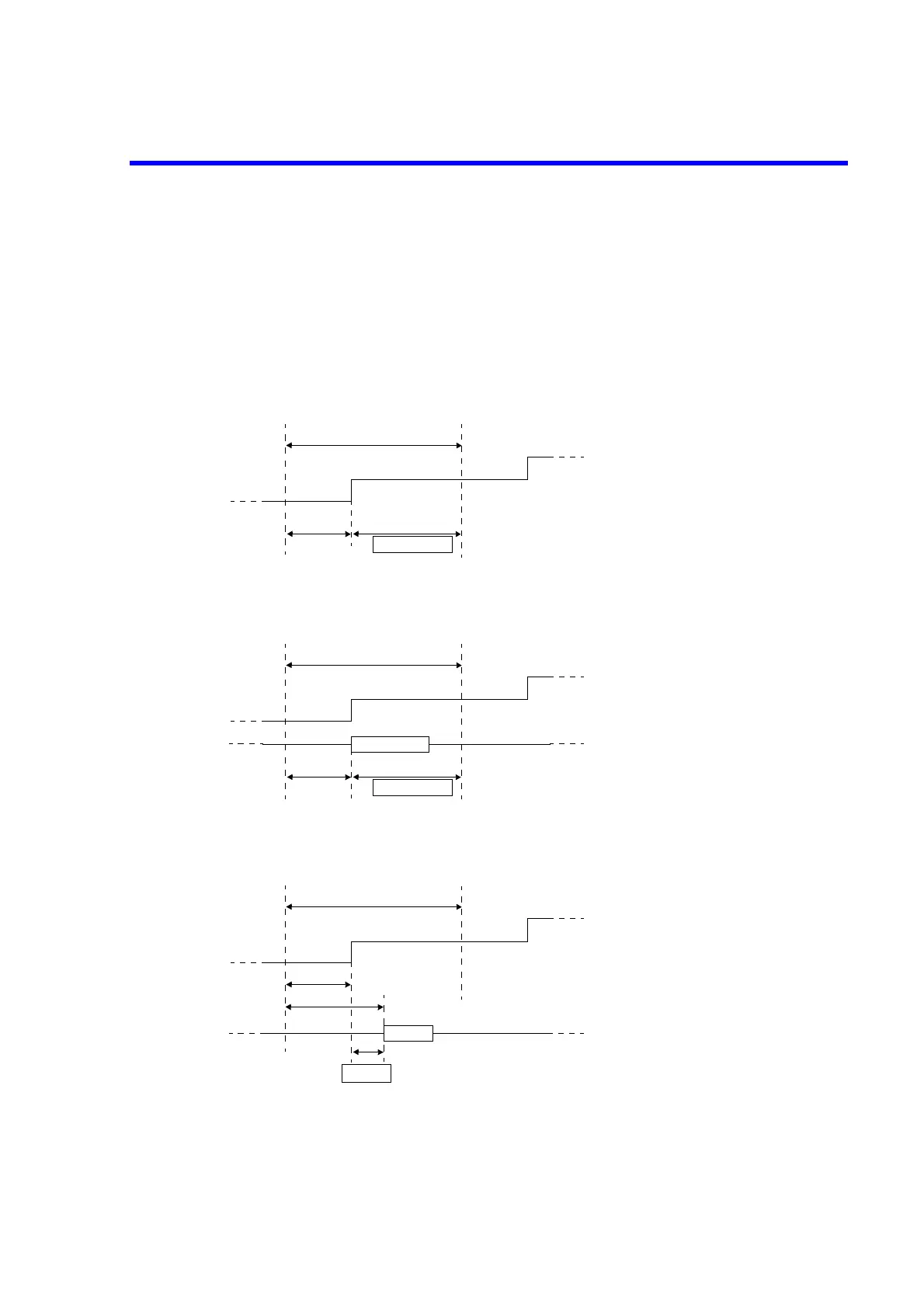

5.2.8 Source Timing and Measurement Timing
5-42
5.2.8.1 Restriction on Time Parameter
Time parameters have restrictions for setting in relation to the others. If the time parameters are set to
exceed the restriction, the error messages are displayed when the operation is turned on or when sweep
starts, and measurement does not start.
1. Restricted settings
Source delay time (Tds) + 300 μs < period time (Tp)
Measurement delay time (Td) + 300 μs < period time (Tp)
Source delay time (Tds) Measurement delay time (Td)
Source delay time (Tds) + pulse width (Tw) + 300 μs < period time (Tp)
Tp
Tds
300 μs or more
Tp
Td
300 μs or more
Measurement
Tp
Tds
Td
0 ≤ Δ t
Measurement
