6241A/6242 DC Voltage Current Source/Monitor Operation Manual
5.2.8 Source Timing and Measurement Timing
5-43
• Period time (Tp) ≤ 600 ms
Conditions: Source mode Pulse mode or Pulse Sweep mode
Integration time Sample hold mode
2. Relationship between setting restrictions and source mode

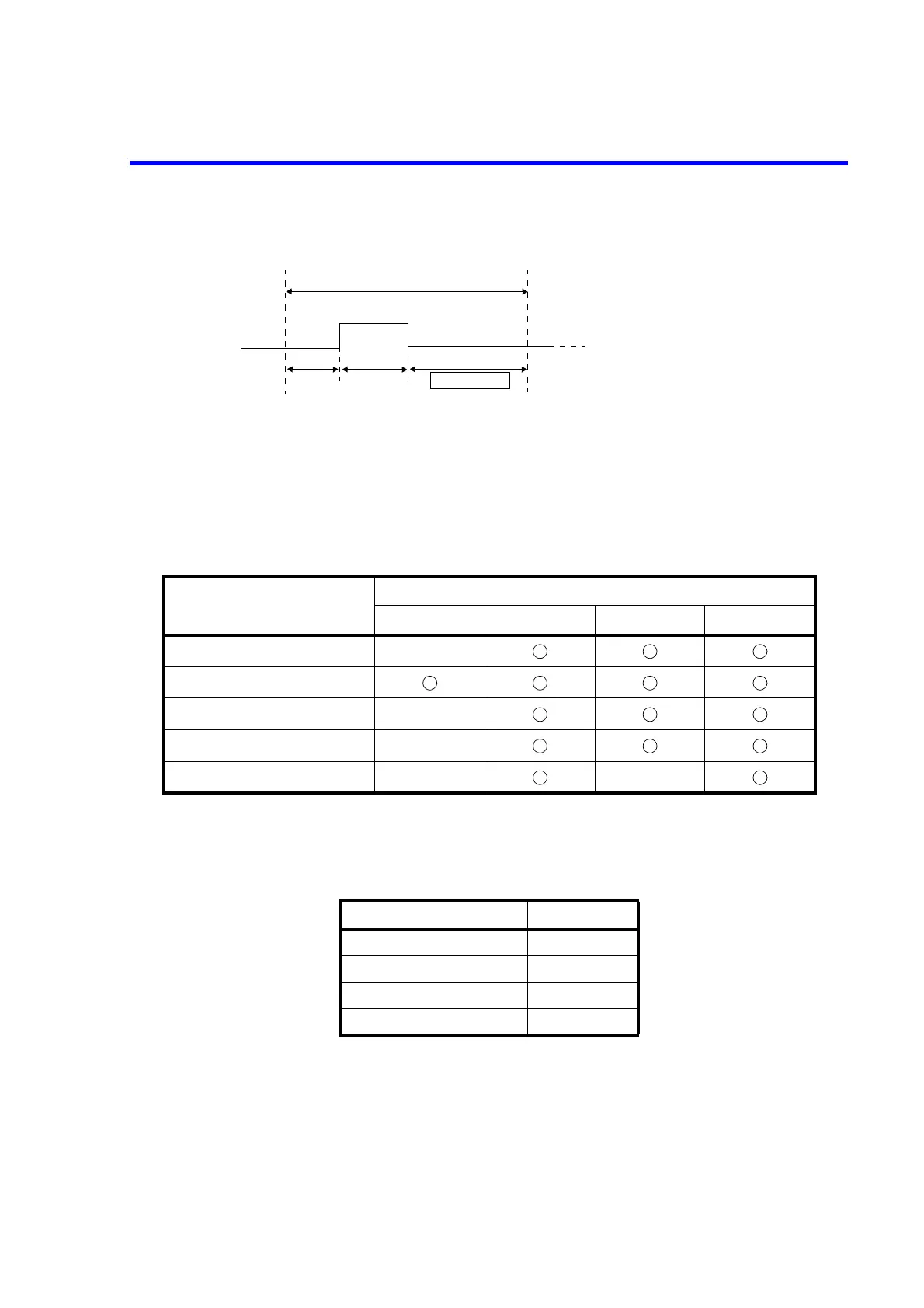

The table below shows the relationship between the restrictions in section 1 above and the source
mode.
3. Source delay time, measurement delay time, and pulse width set time
The source delay time, measurement delay time, and pulse width set resolution are determined by the
period time resolution. The rounded off value is set as the resolution.
Restrictions:
Source mode
DC PLS DC-SWP PLS-SWP
[Tds + 300 μs < Tp] -
[Td + 300 μs < Tp]
[Tds ≤ Td] -
[Tds + Tw + 300 μs < Tp] -
[600 ms ≤ Tp] - -
Period time setting range Resolution
0.500 ms to 60.000 ms 1 μs
60.01 ms to 600.00 ms 10 μs
600.1 ms to 6000.0 ms 100 μs
6001 ms to 60000 ms 1 ms
Tp
Tds 300 μs or more
Tw
To Next Page
