2.2.7 Sweep Measurement
2-43
2.2.7 Sweep Measurement
This section describes the process which reads out the measurement data from memory by using the sweep
source mode.
Using voltage source current measurement (VSIM), the 6241A/6242 linear-sweeps from 0.5 to 5 V in 0.5
V steps as shown in Figure 2-17 below.

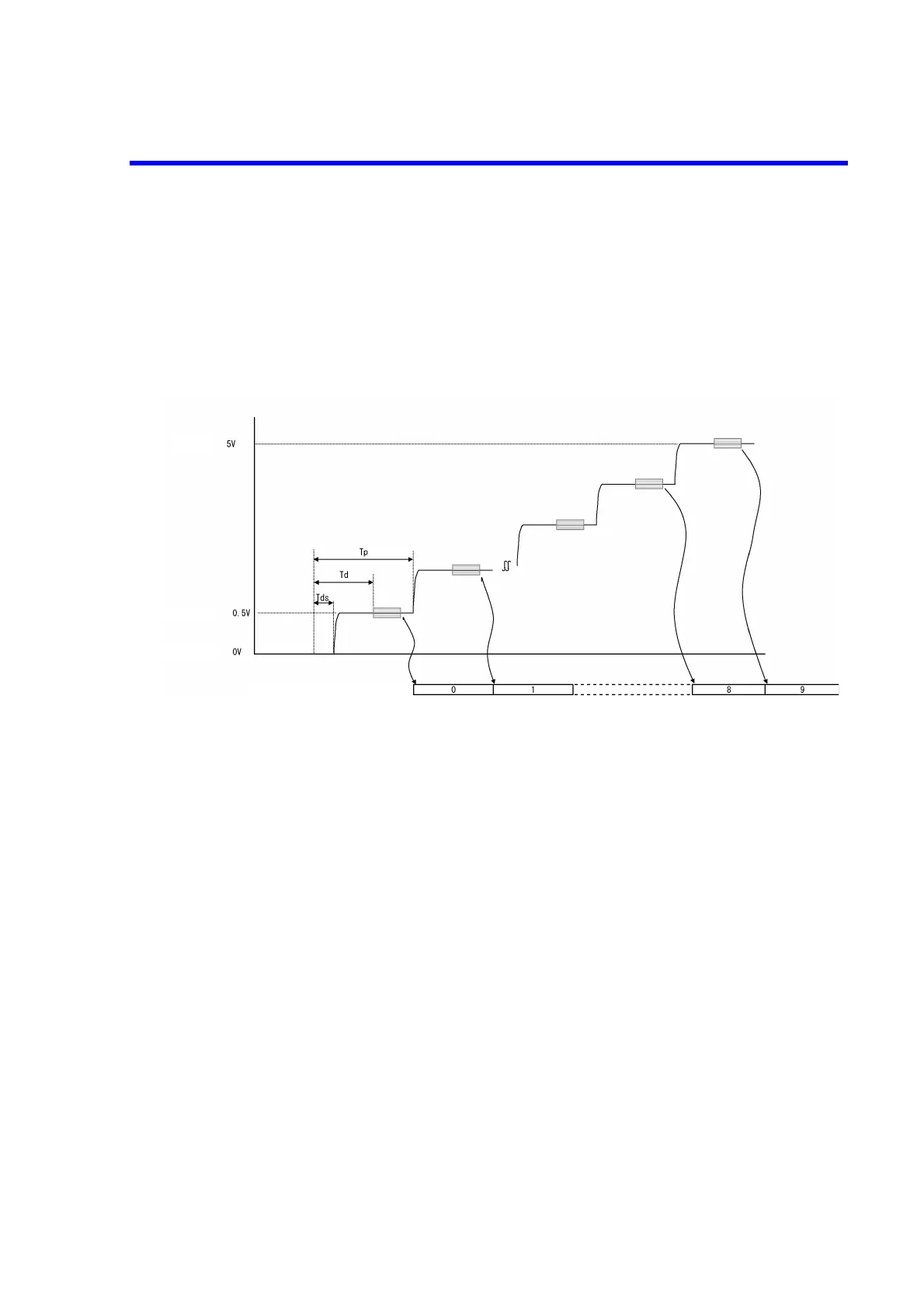

Figure 2-17 Sweep Measurement
Source mode: DC Sweep
Sweep type: Linear Sweep (default)
Bias value: 0 V (default)
Start value: 0.5 V
Stop value: 5 V
Step value: 0.5 V
Integral time: 1 PLC (default)
Source delay time (Tds): 1 ms
Measurement delay time (Td): 4 ms
Period time (Tp): 100 ms
Current limiter: 30 mA
Measurement data memory address
Bias value
Start value
Stop value
