ADCMT 6241A - SOURCE RANGE Section; MEASURE Section

6241A/6242 DC Voltage Current Source/Monitor Operation Manual
2.1.1 Front Panel
2-4
2.1.1.3 SOURCE RANGE Section

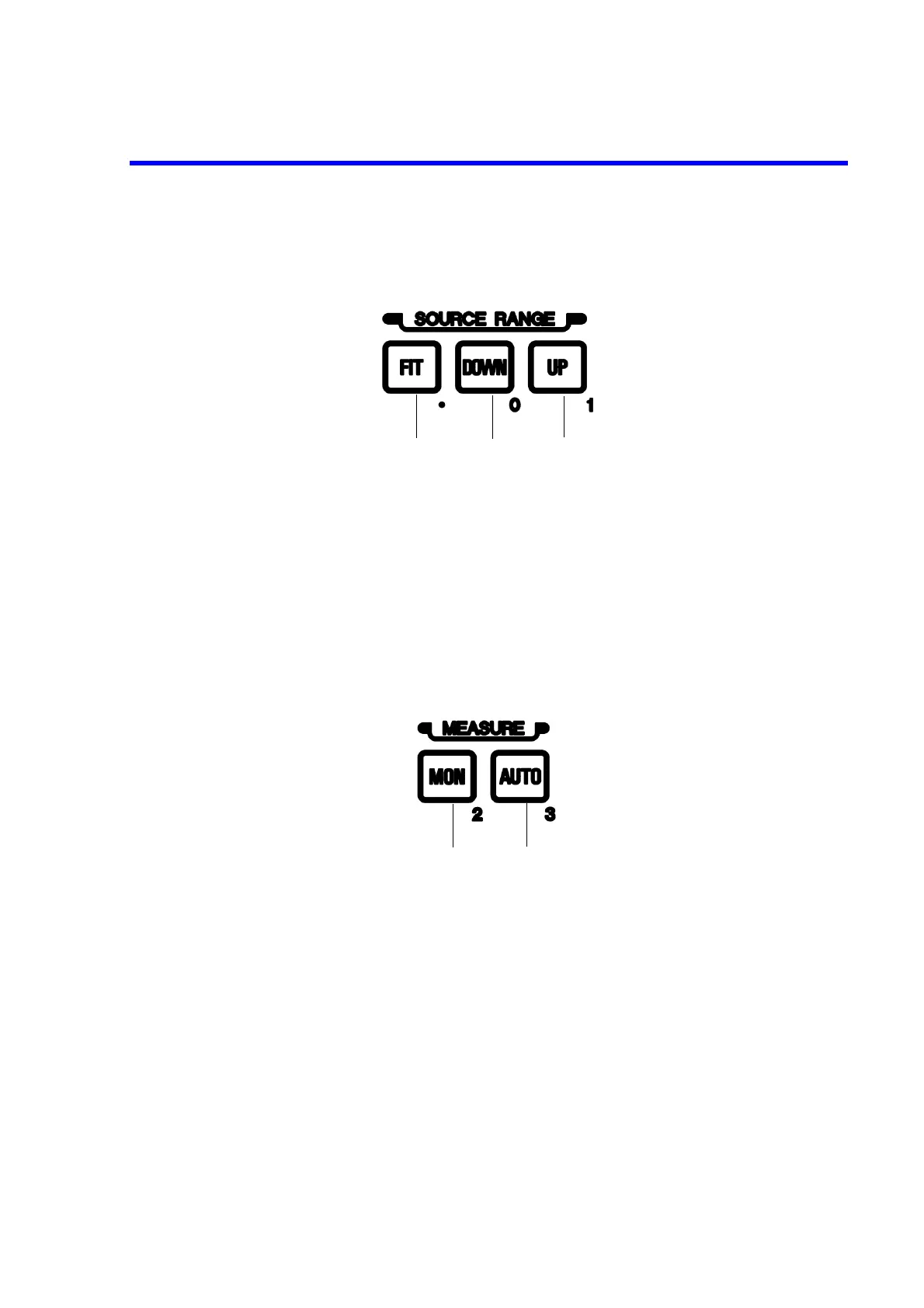

Figure 2-4 SOURCE RANGE Section
1. FIT key: Selects the optimum fitting range (FIT) or the current range to
input the source values.
2. DOWN key: Lowers the source range.
3. UP key: Raises the source range.
2.1.1.4 MEASURE Section
Figure 2-5 MEASURE Section
1. MON key: Selects the measurement function (voltage, current, or resistance
measurement).
2. AUTO key: Selects the measurement range (Auto or Fixed).
1
2
3
1
2
