ADCMT 6241A User Manual

6241A/6242 DC Voltage Current Source/Monitor Operation Manual
2.1.1 Front Panel
2-5
2.1.1.5 OUTPUT CONTROL Section

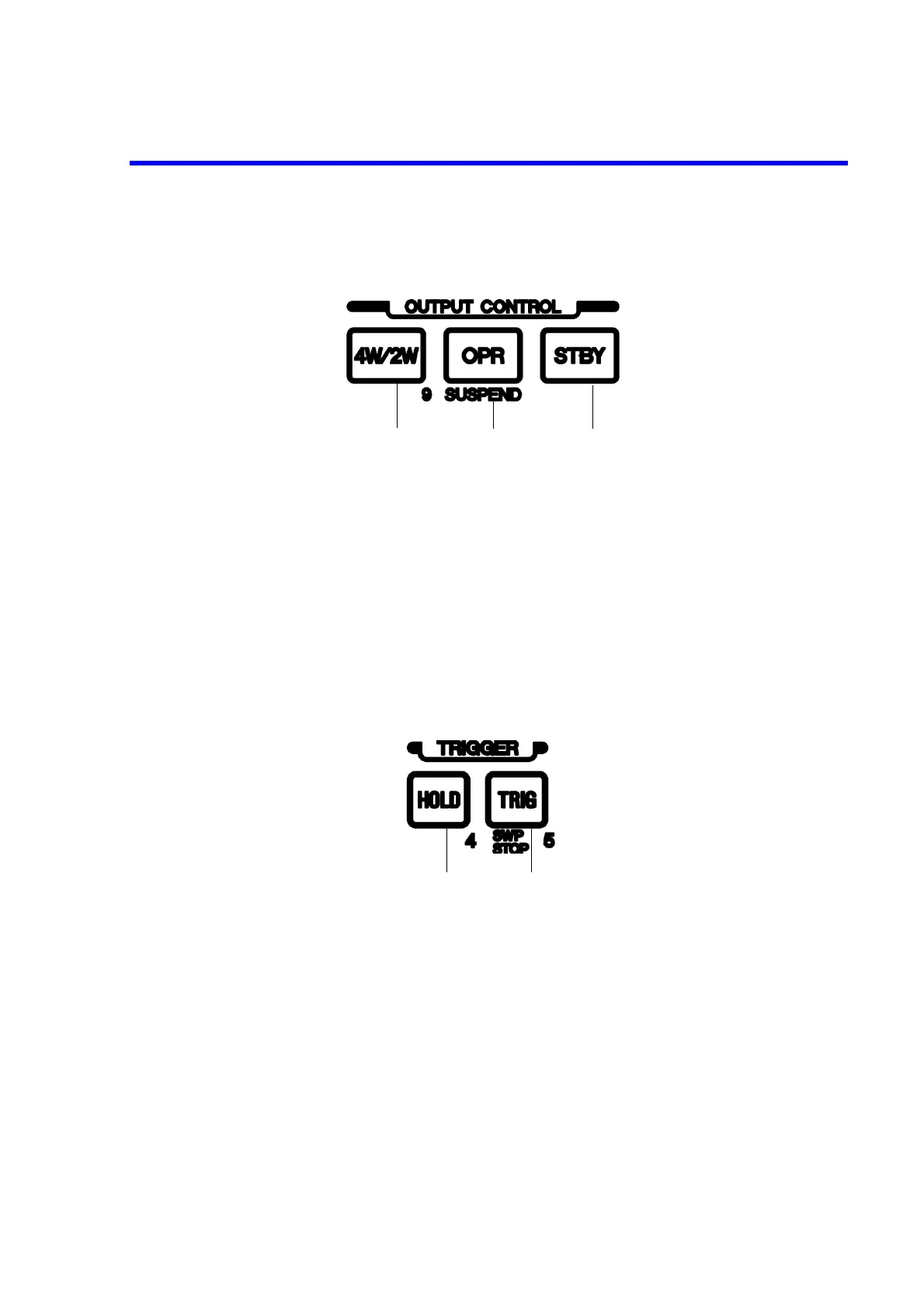

Figure 2-6 OUTPUT CONTROL Section
1. 4W/2W key: Selects the output sensing 4-wire or 2-wire connection.
2. OPR key: Switches between Operate and Suspend.
* :Suspend status outputs the suspended voltage without turning
OFF the output relay. OPR indicator blinks.
3. SUSPEND (SHIFT, OPR) key: Sets Suspend regardless of the operational or standby status.
4. STBY key: Sets the output standby status.
2.1.1.6 TRIGGER Section
Figure 2-7 TRIGGER Section
1. HOLD key: Selects the trigger mode (AUTO or HOLD).
2. TRIG key: Triggers the measurement and pulse source when the trigger
mode is in the HOLD state in the DC and Pulse Source mode, and
starts, pauses or restarts the Sweep, or changes to the next step in
the sweep source mode.
3. SWP STOP (SHIFT, TRIG) key
Stops the sweep.
1
2, 3
4
1 2, 3
