6241A/6242 DC Voltage Current Source/Monitor Operation Manual
3.2 Battery Charge and Discharge Test
3-4
Discharge test: As shown in Figure 3-2, discharge with a 500 mA constant current, pulse width 20 ms, and
a 1 second period. Finish the discharge when the voltage reaches 1.0 V.
Store the battery voltage in the memory to display it after completing the test.
However, the data stored in memory is only up to 8000 seconds from starting the discharge
due to the limitation of memory capacity.

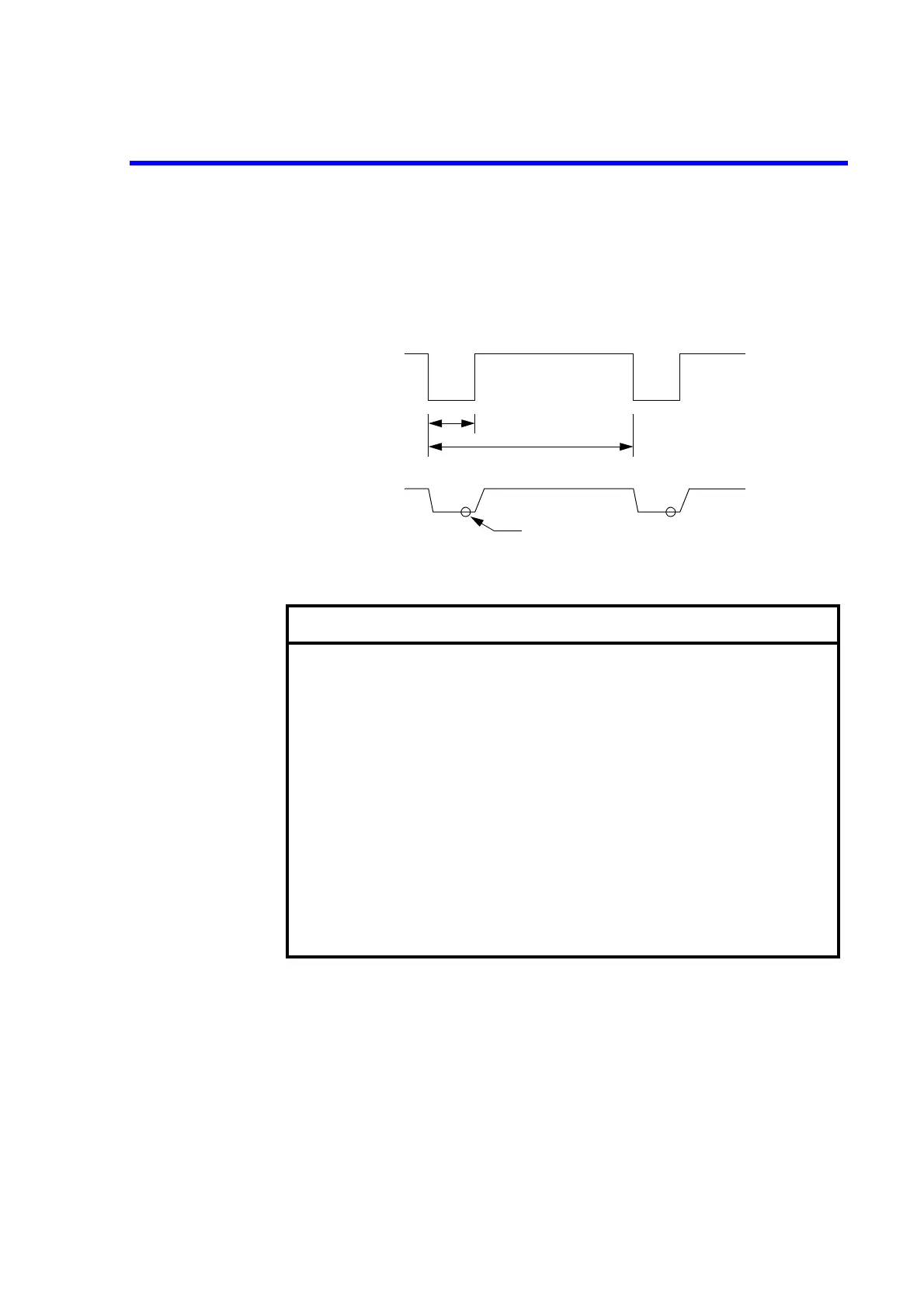

Figure 3-2 Waveform of Battery Discharging Test
Discharge test conditions
Source mode
Pulse current
Base current
Limiter
Suspend voltage
Pulse width
Period
Integration time
Measurement delay
Measurement range
Memory
Comparator
Remote sensing
:
:
:
:
:
:
:
:
:
:
:
:
:
Pulse
-500 mA
-10 mA
HL value; 1.45 V
LL value; 0.95 V
HiZ; 1.20 V
20 ms
1 s
1 ms
18 ms
3 V range fixed
NORMAL, STORE ON
ON
Upper limit value 1.5 V
Lower limit value 1.0 V
4-wire
IS
VM
-10 mA
-500 mA
20 ms
1 s
Voltage-measurement
