6241A/6242 DC Voltage Current Source/Monitor Operation Manual
1.4.2 Power Specification
1-6
1.4.2 Power Specification
Table 1-3 below shows the 6241A/6242 power supply specifications.
CAUTION: To prevent damage to the 6241A/6242, do not apply a voltage or frequency that exceeds the speci-
fied range.
Ensure that the power voltage setting on the instrument rear panel matches the voltage of the commercial
power supply.

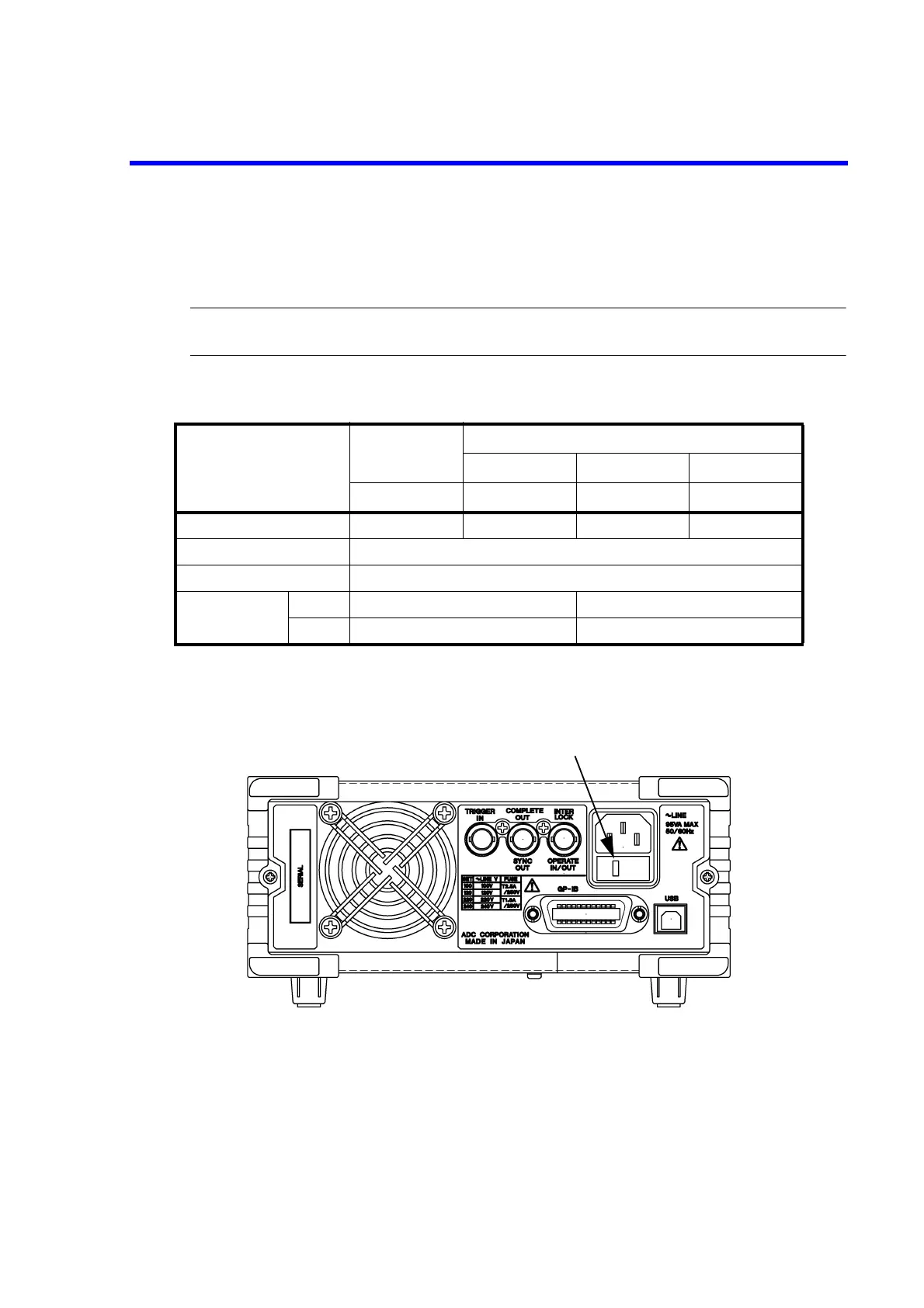

Figure 1-2 Set Power Voltage Indicator
Table 1-3 Power Supply Specification
Standard
Optional
32 42 44
100 VAC 120 VAC 220 VAC 240 VAC
Input voltage range 90 V to 110 V 108 V to 132 V 198 V to 242 V 207 V to 250 V
Frequency range 48 Hz to 66 Hz
Power consumption 95 VA or less (6241A)/180 VA or less (6242)
Fuse
6241A T2.5 A/250 V T1.6 A/250 V
6242 T4 A/250 V T2 A/250 V
Voltage setting indicator
