6241A/6242 DC Voltage Current Source/Monitor Operation Manual
3.2 Battery Charge and Discharge Test
3-5
Connecting the DUT
1. Use a 4-wire connection as shown in Figure 3-3 so that the cable does not cause
a voltage drop.
2. Connect COMPLETE OUT terminal with OPERATE IN terminal on the rear
panel by using the BNC-BNC cable A01036.
This is to set the unit Standby automatically after completing the charge or dis-
charge.

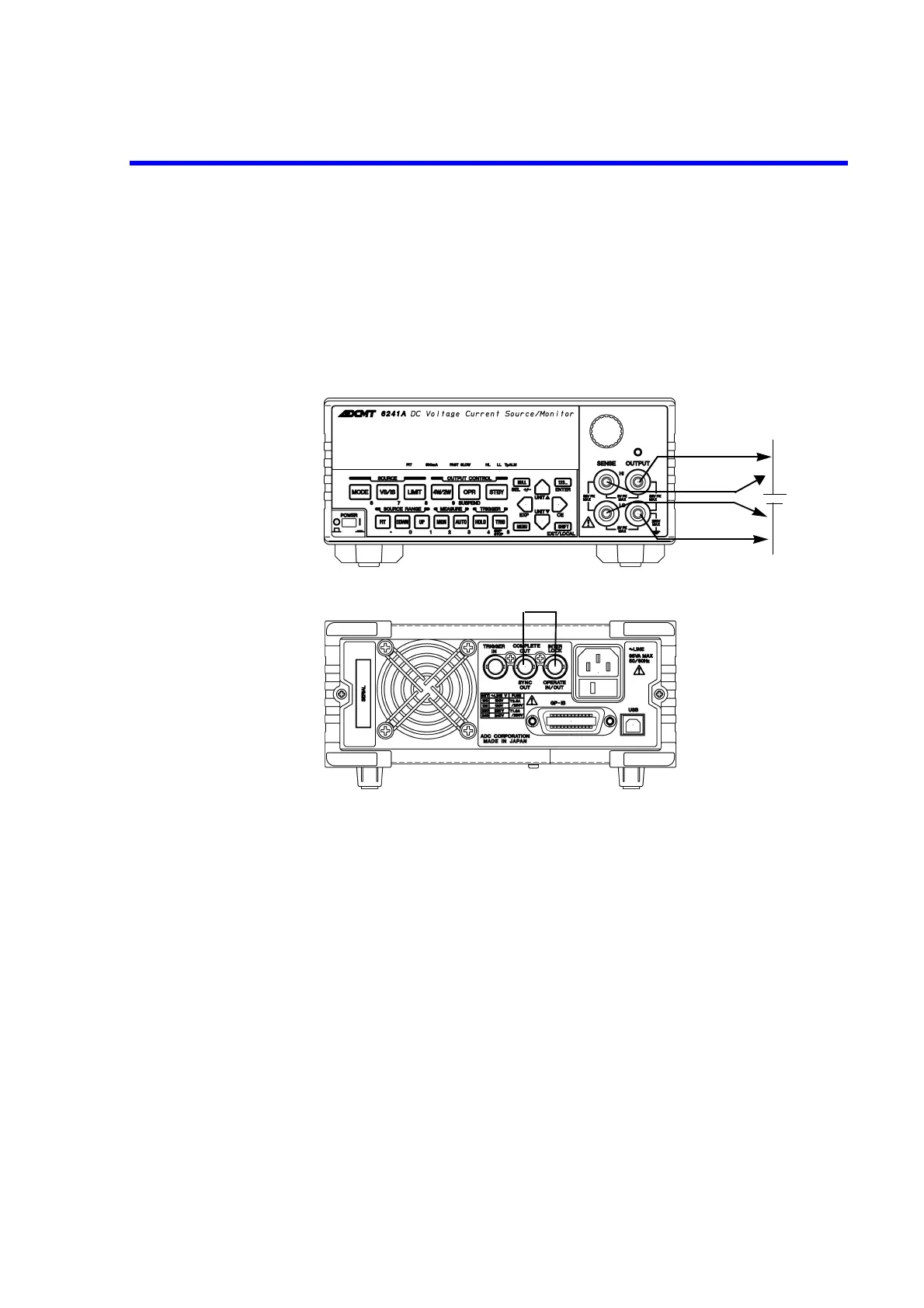

Figure 3-3 Battery Charge Discharge Test Connection
Charge test
1. Set at Current-source Current-measurement.
2. Set the charge test conditions parameters.
3. Turn Operate ON.
The battery starts charging with constant current and the charging current reduces
as the battery voltage reaches to +1.45 V.
The battery charge completes automatically and is set to Standby when reaching
100 mA or less.
Battery
+
-
Front
Rear
