5.2.3 Sweep Source Mode Operation
5-18
5.2.3.3 Random Sweep and Random Pulse Sweep
The Random Sweep function sweeps the source value stored in the random memory from specified Start
address to Stop address.
The memory can store optional values. Therefore, it can generate the function wave.
As Random Pulse Sweep shares the memory, whether to generate DC wave or Pulse wave is selectable.

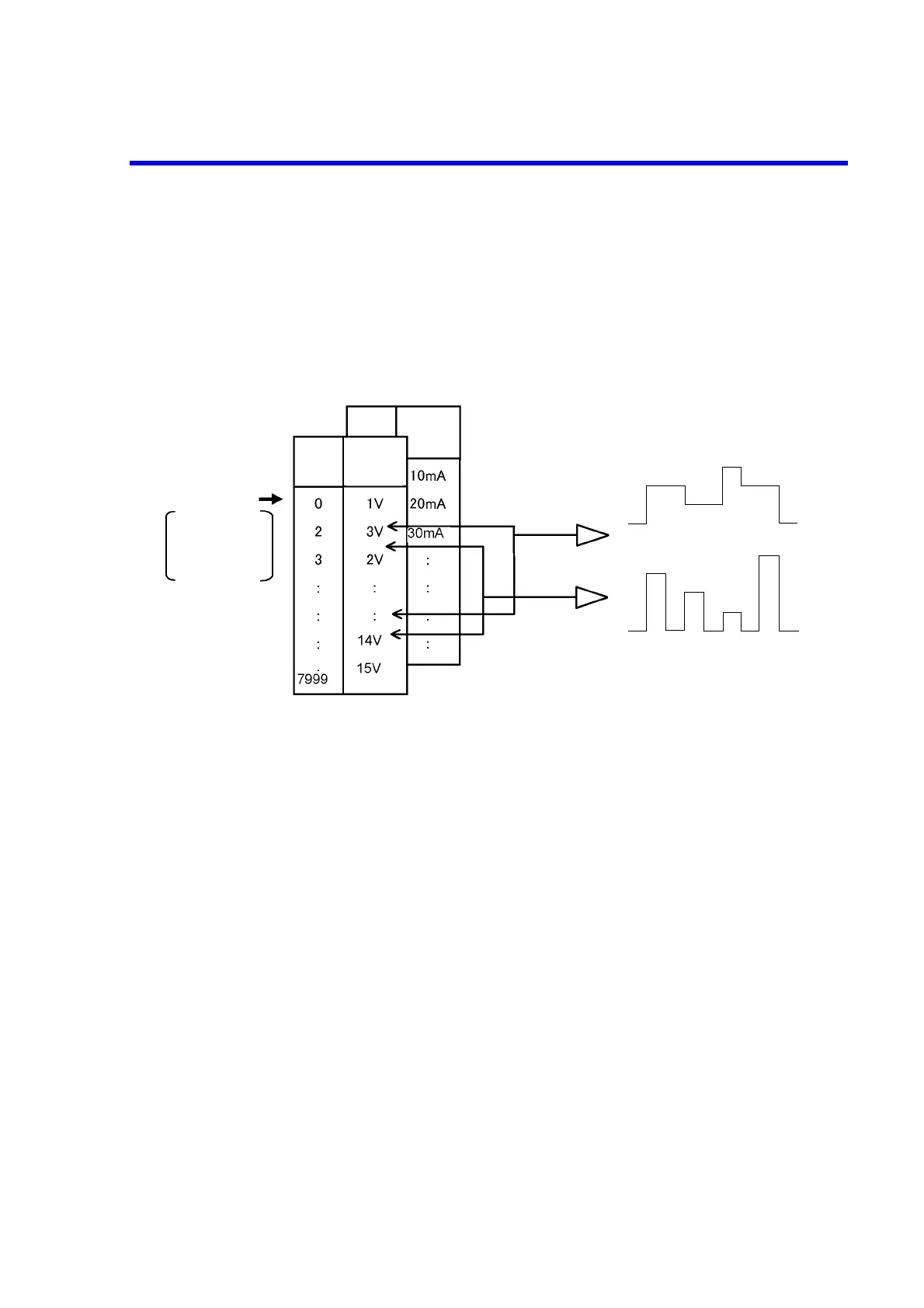

Figure 5-8 below shows this relation.
Figure 5-8 Random Sweep and Random Pulse Sweep
• Random memory can be set for each voltage and current function from 0 to 7999.
Voltage and
current functions
are stored
separately.
Random Sweep
Random Pulse Sweep
Voltage-
source
value
Output waveform
Start address
Stop address
Address
Address
Storing the
source value
Current-
source
value
