ADCMT 6241A User Manual

6241A/6242 DC Voltage Current Source/Monitor Operation Manual
8.1.5 Calibrating Operation
8-5
8.1.5 Calibrating Operation
Use GPIB or USB remote command to calibrate the 6241A.
Figures 8-2 to 8-6 show the calibration procedure. For more information on remote commands, refer to
Section 6.7.3, “Remote Command List.”

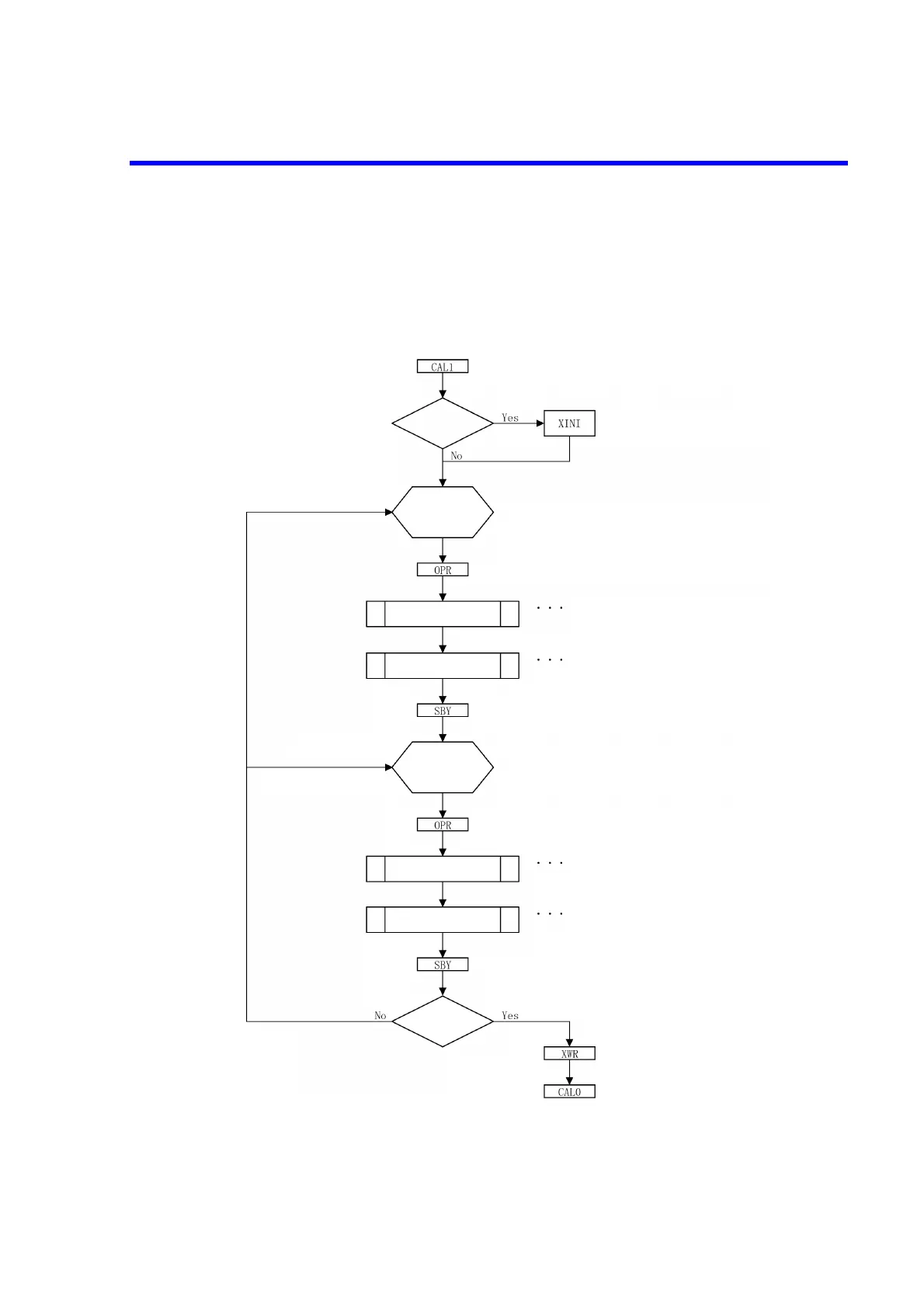

Figure 8-2 6241A Calibration Procedure (1)
Enter calibration mode.
Initialize the calibration data.
(Default → Ram)
Calibration mode operation
Refer to calibration procedure (2).
Refer to calibration procedure (3).
Voltage-source and
Limiter calibration
Voltage-measurement
calibration
Standby
[Current calibration]
Calibration mode operation
Refer to calibration procedure (4).
Current-source and
Limiter calibration
Current-measurement
calibration
Standby
Save the calibration data.
(Ram → Flash)
Calibration mode completed.
Initialize the
calibration
data?
[Voltage calibration]
Prepare DMM
• Cable
Prepare DMM
• Cable
Refer to calibration procedure (5).
Calibration
completed?
