6241A/6242 DC Voltage Current Source/Monitor Operation Manual
2.2.6 Pulse Measurement
2-39
13. Press the MON twice to switch voltage-measurement. (See Point B in Figure
2-15)
2.2.6 Pulse Measurement
This section describes an example operation which uses the pulse source mode.
The following describes the example of measurement by changing A and B measurement points as shown
in Figure 2-16 for voltage source current measurement (VSIM).

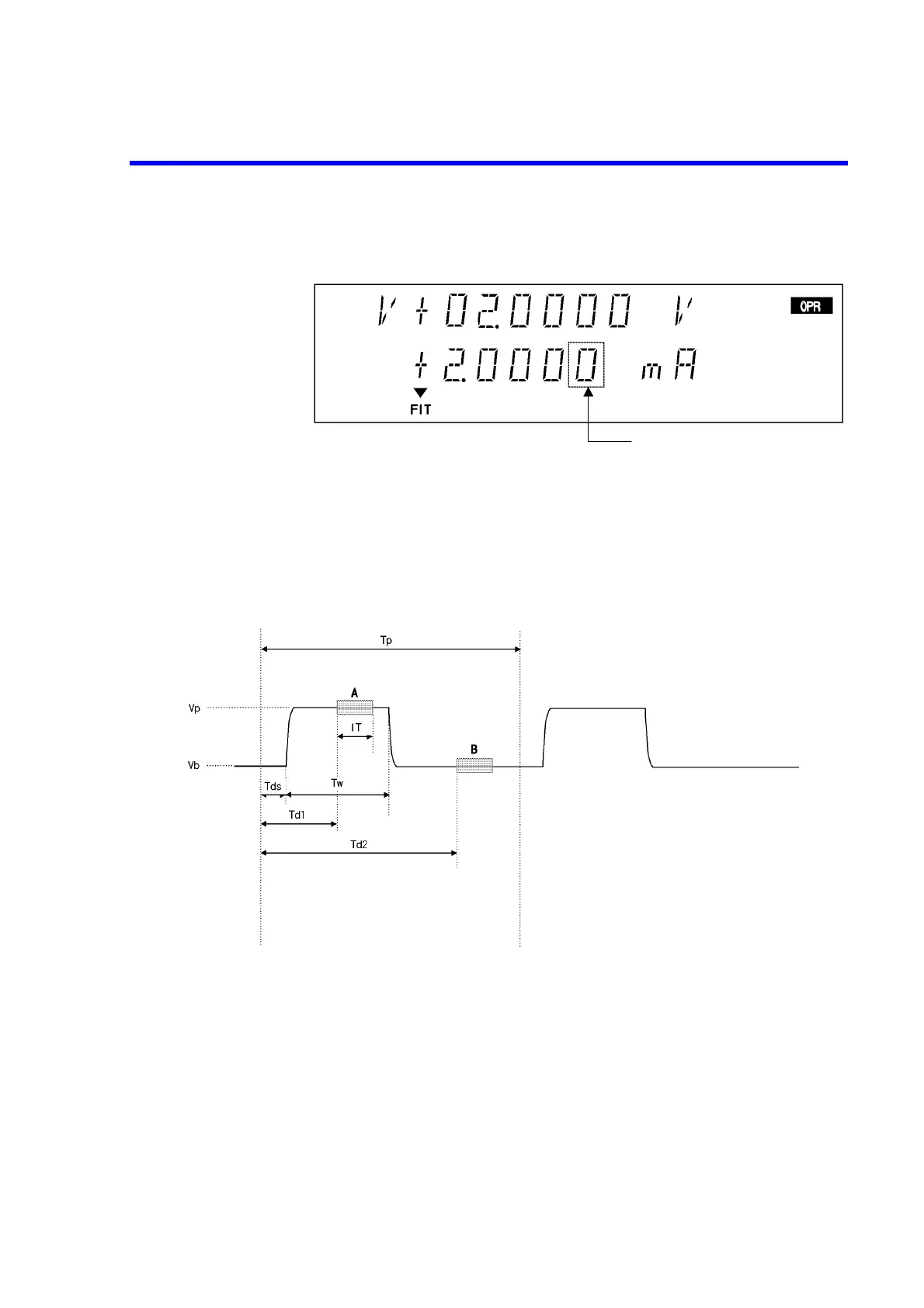

Figure 2-16 Pulse Measurement
Cursor (blinking)
Tds: Source delay time ; 1 ms
Tw: Pulse width ; 50 ms
Td1: Measurement delay time (at A) ; 3 ms
Td2: Measurement delay time (at B) ; 60 ms
Tp: Period time ; 130 ms
IT: Integration time ; 1 PLC (default)
Vp: Pulse value ; 2 V, 2.5 V
Vb: Base value ; 1 V, 0.5 V
