5.2.3 Sweep Source Mode Operation
5-15
5.2.3.1 DC Sweep Source Mode Operation

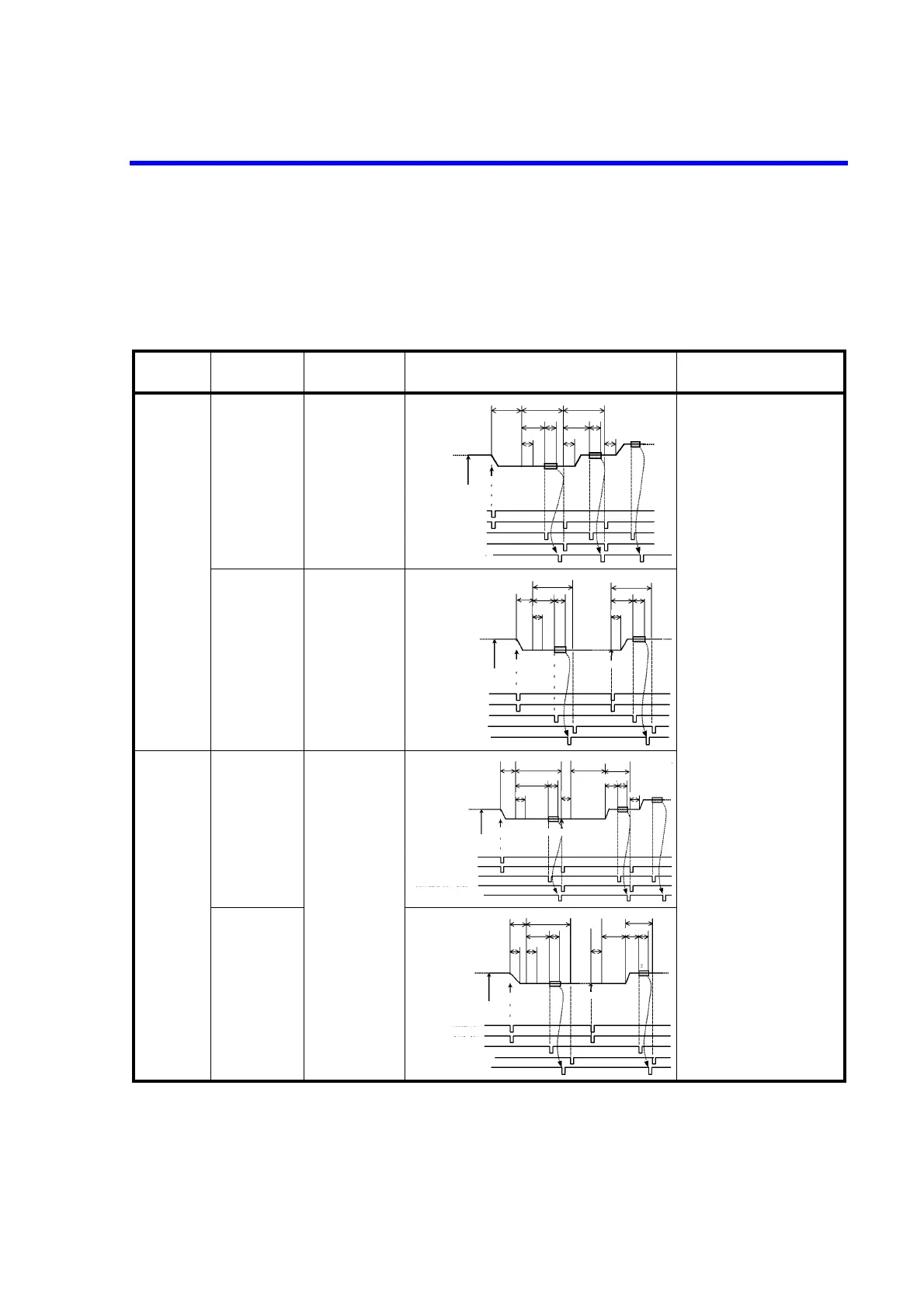

Table 5-5 below shows the DC sweep source mode operation.
Table 5-5 DC Sweep Source Mode (1/2)
Operational
condition
Trigger mode Explanation Operation Remarks
Operate
ON
AUTO
Executes consec-
utive measure-
ments with the set
period time Tp.
Th: Hold Time
Tp: Period Time
Td: Measurement
Delay Time
Tds:Source Delay Time
Tm: Measurement Time
(Integration time +
Measurement data
processing time)
Tcn: Operation Processing Time
Trc: Range Change Processing
Time
HOLD
Executes mea-
surement after
trigger input.
Change the
source range
AUTO
Source range
changed while
sweeping.
HOLD
Th
Tp
Tp
Td
Tm
Td
Tm
Tds Tds
Tds
3
2
1
Bias
Operate
Start trigger
COMPLETE OUT [HI/GO/LO]
SYNC OUT
COMPLETE OUT [END]
COMPLETE OUT [FRONT]
TRIGGER IN
2
Operate
Th
Td
Tm
Tm
Td
Tp
Tds
1
Start trigger
Bias
Trigger
SYNC OUT
COMPLETE OUT [FRONT]
TRIGGER IN
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [END]
Tp
Tds
Th
Bias
1
2
3
Tp
Tp-Tds
Trc
Td
Tm
Td-
Tm
Tds
Tds
Start trigger
Source range changed
Operate
SYNC OUT
COMPLETE OUT [FRONT]
TRIGGER IN
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [END]
Tds
Operate
Th Tp
Tm
Trc
Tm
TdsTs
Td-Tds
1
Start trigger
Bias
Trigger
SYNC OUT
COMPLETE OUT [FRONT]
TRIGGER IN
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [END]
Td
Tds
Tp-Tds
