2.1.2 Screen Display (Annotations)
2-8
2.1.2 Screen Display (Annotations)
This section describes the screen display (annotations).

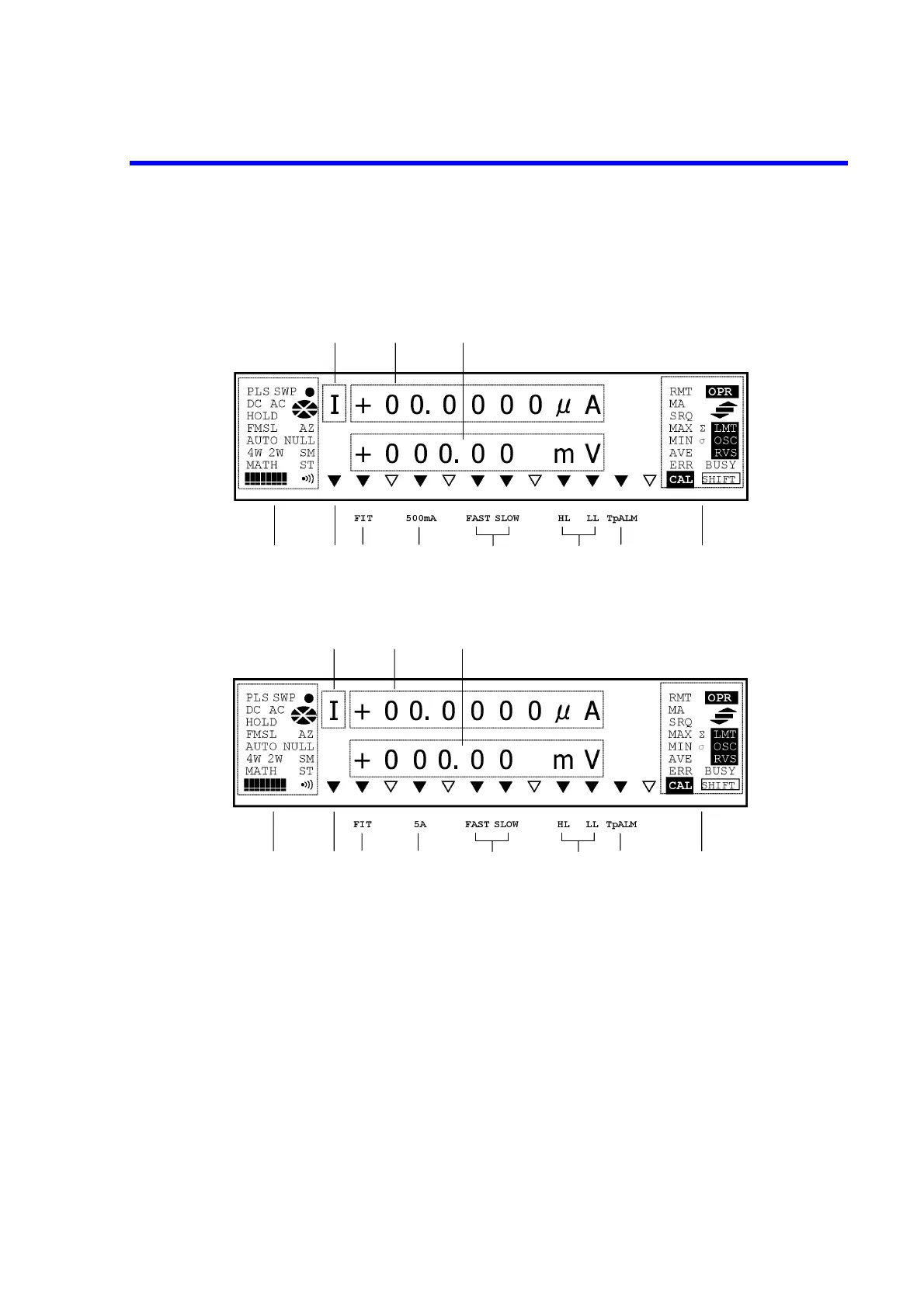

Figure 2-11 Screen Display (Annotations)
1. Source Value: Displays voltage source (VS) or current source (IS) value with a
unit.
2. Measurement Value: In Operation:
Displays measurement value.
In Standby and Suspend:
Displays the suspend voltage. Displays the output impedance
in Suspend status.
HZ: High impedance status
LZ: Low impedance status
(For more information on this operation, refer to Section 5.2,
“Functions in Detail.”)
2
1
3
4811957610
6241A
6242
4811957610
2
1
3
