6241A/6242 DC Voltage Current Source/Monitor Operation Manual
2.2.7 Sweep Measurement
2-44
Preparation
1. Follow the same procedure described in Section 2.2.5, “DC Measurement.”
Setting the current-limiter
2. Press LIMIT, 123…, 3, 0, and ENTER in order.
Set the current-limiter within ±30 mA.
3. Press LIMIT.
The HOME screen is displayed.
Setting the sweep source mode
4. Press MODE. Rotate or press or to select DC-SWP, and press
ENTER.
DC indicator and SWP indicator turn on to show DC Sweep has been set.
5. Press MENU.
6. Press or to select B) SWEEP. Press to go to the Select level.

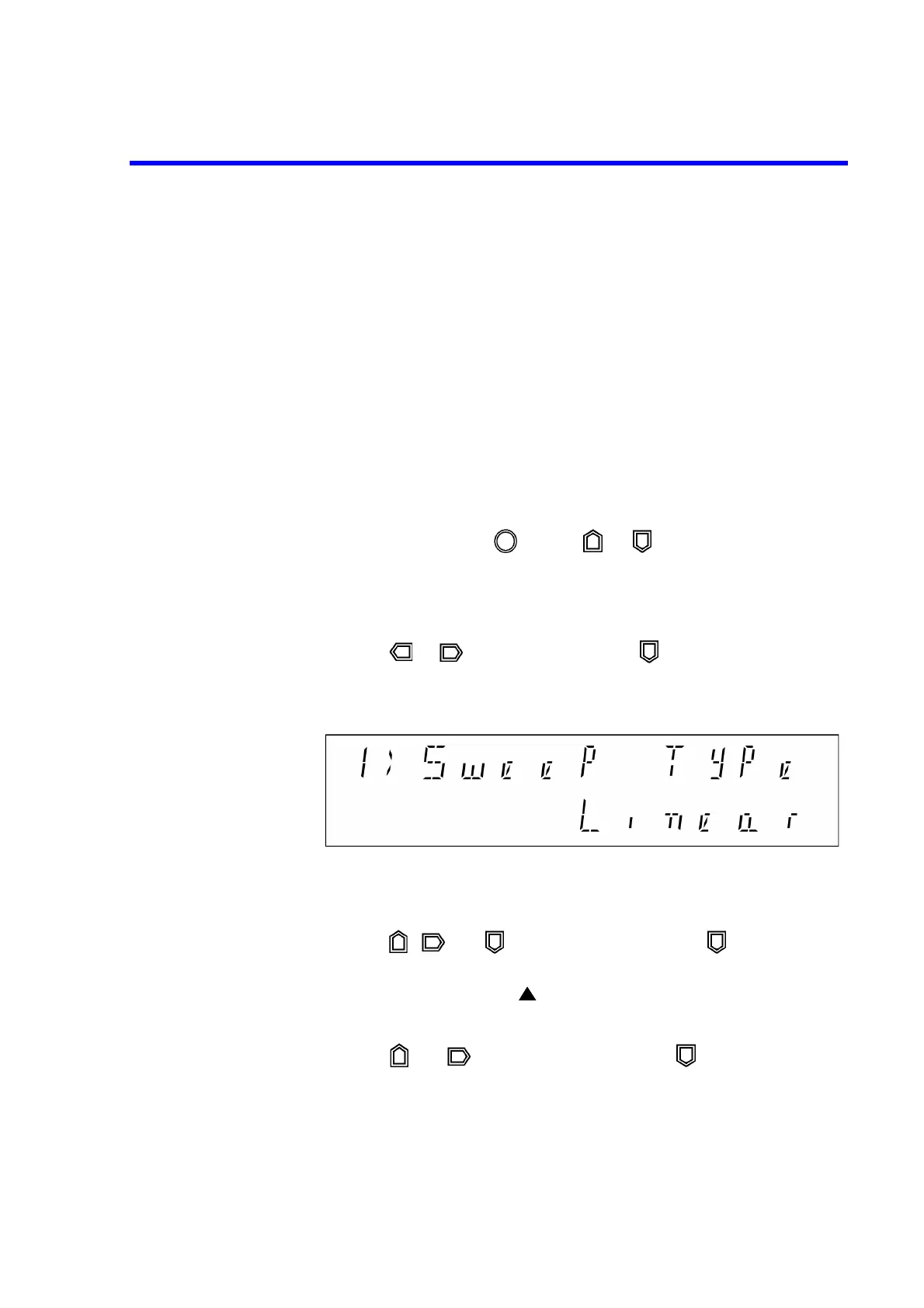

7. Verify that Linear is selected in 1) Sweep Type.
Setting sweep source-voltage
8. Press , , and to select 1) Start Value. Press to go to the Input/
Run level.
9. Press 123…, 0, ., 5, UNIT , and ENTER in order.
Set the start value at 0.5 V.
10. Press and to select 2) Stop Value. Press to go to the Input/Run
level.
To Next Page
