ADCMT 6241A User Manual

6241A/6242 DC Voltage Current Source/Monitor Operation Manual
5.2.11 Operating Multiple 6241A/6242
5-60

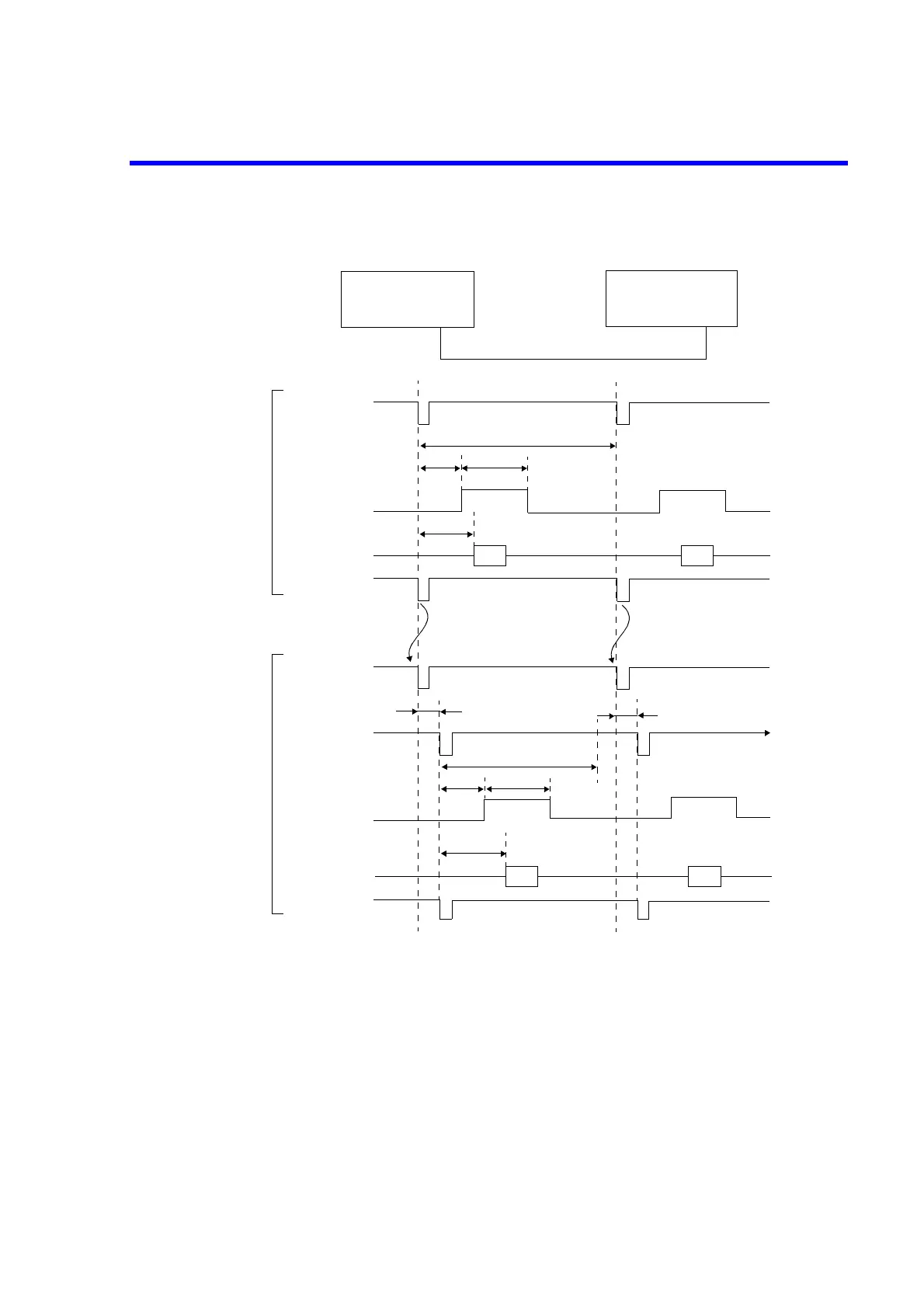

Therefore, consider Tsync time and set the relevant setting as follows:
1. Tds2 ≅ Tds1 - Tsync
2. Td2 ≅ Td1 - Tsync
3. Tw2 ≅ Tw1
4. Tp2 ≤ Tp1-T
A
Measurement
trigger
Source
SYNC OUT
6241A/6242
(Master)
SYNC OUT TRIGGER IN
6241A/6242 (Master) 6241A/6242 (Slave)
(Use with Hold)
Measurement
Tp1
Tds1
Tw1
Td1
Tsync
Tp2
Tds2
Tw2
Td2
TRIGGER IN
Source
SYNC OUT
6241A/6242
(Slave)
Measurement
Internal
measurement
trigger
Tsync
Measure-
ment
Measure-
ment
Measure-
ment
Measure-
ment
