Diagram Conventions
Diagram Conventions
Description
Diagram Description

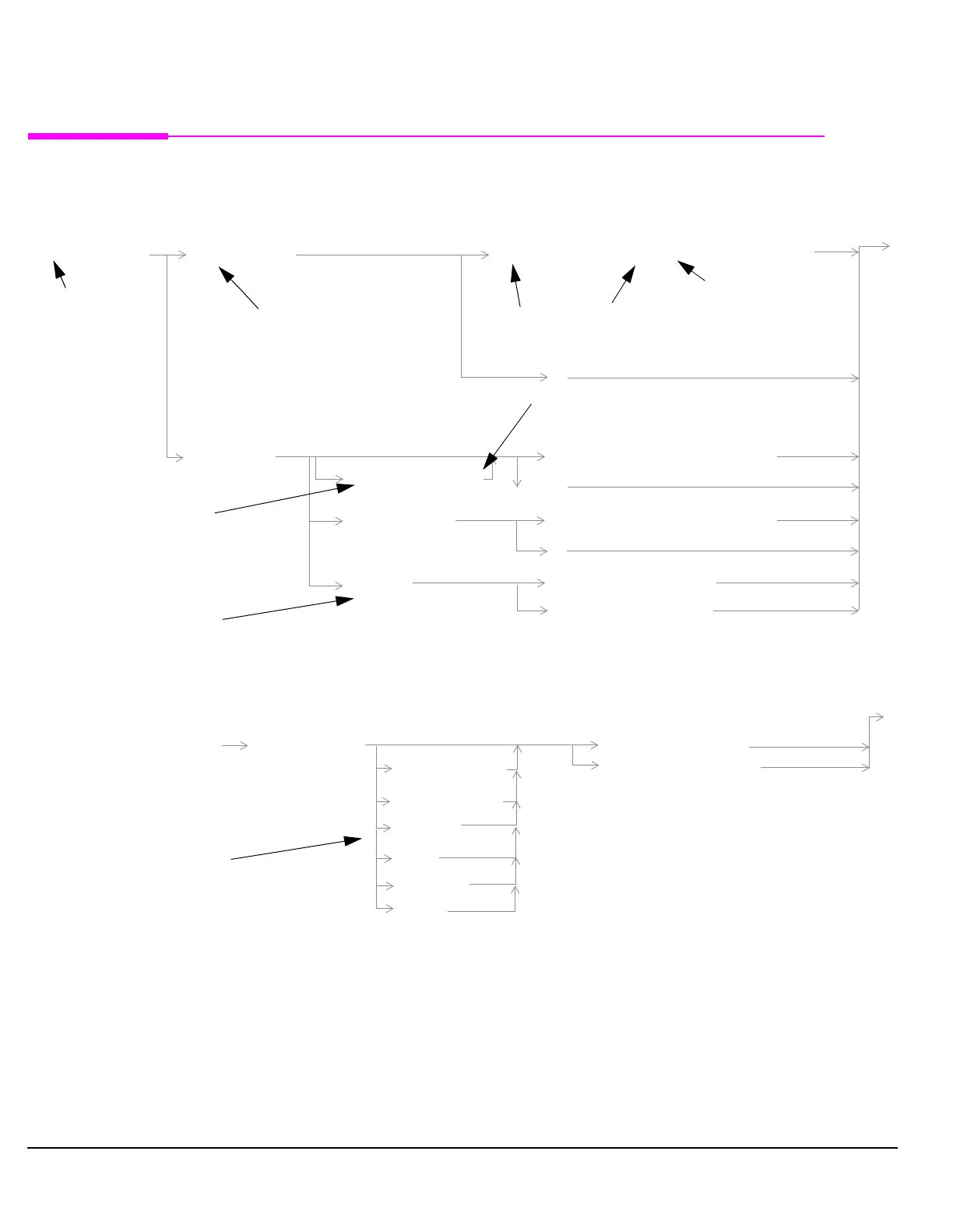

Statement elements are connected by lines. Each line can be followed in only one direction, as indicated by the
arrow at the end of the line. Any combination of statement elements that can be generated by starting at the
Root Element and following the line the direction of the arrow is syntactically correct. The drawings show
the proper use of spaces. Where spaces are required they are indicated by <sp>, otherwise no spaces are
allowed between statement elements.
<sp><num value>[V|MV]
:STATe
?
<sp>1|ON|0|OFF
? (returns 1|0)
[:SAMPlitude]
:VOLTage
:AMPLitude
AFGenerator
:FREQuency
<sp><num value>[HZ|KHZ|MHZ|GHZ]
?
Root Element
Root
Element
Node
Space
required.
Commands enclosed in square
brackets, [ ], are optional.
Vertical bar, |,
separates choices.
Bold indicates
default setting.
Blue indicates a hypertext
link to the command’s
description table.
See Complex Command
Description below.
<sp><num value>[V|MV]
?
See Identifier Description
below.
SETup:<measurement>
:CONTinuous
<sp>1|ON|0|OFF
? (returns 1|0)
:DIGital136
[:SELected]
:TA136
:TA2000
:CDMA
:GSM
