Waveform Quality/Code Domain Measurement Description

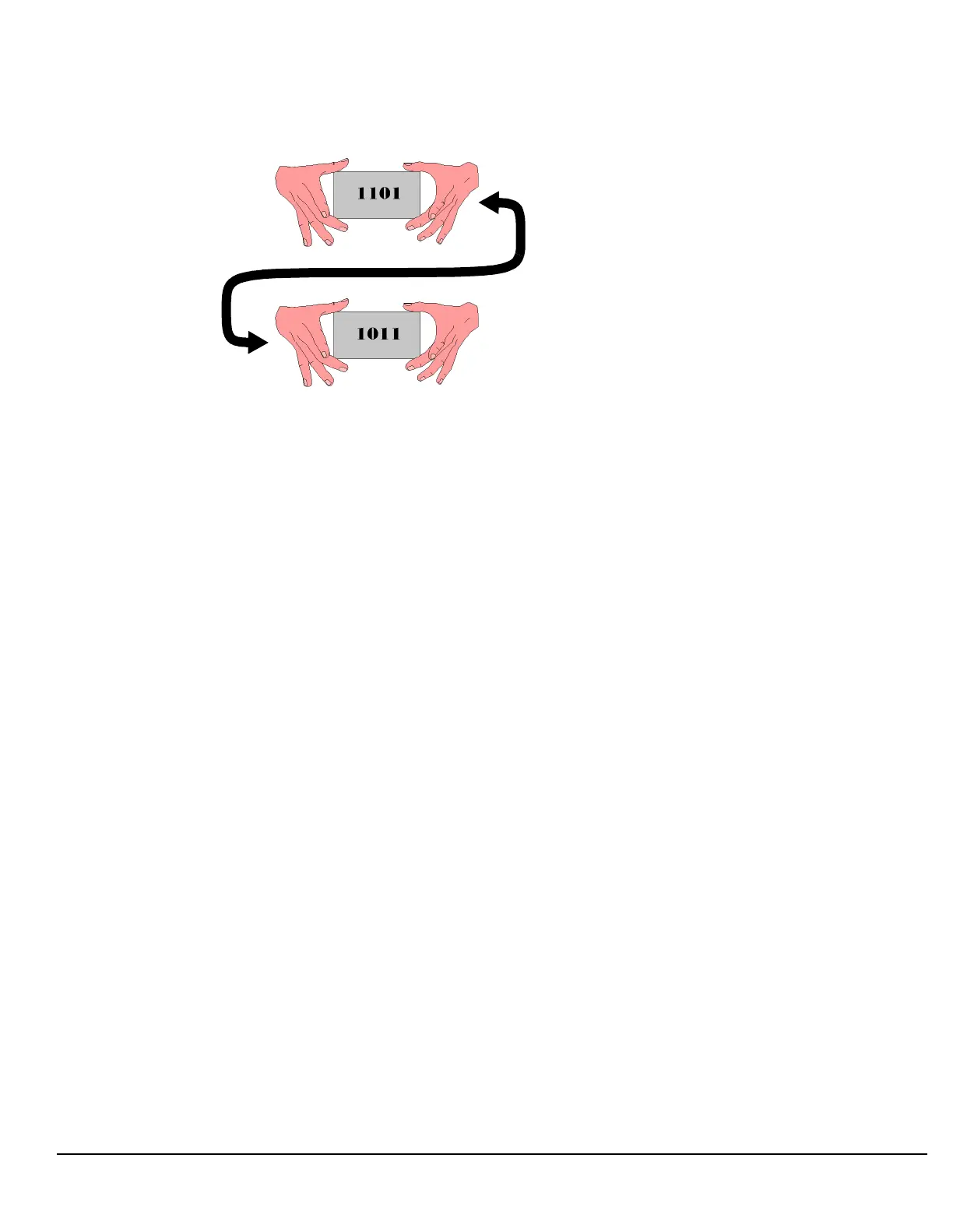

Figure 9. Walsh Channel Bit Reversal
Input Signal Requirements
The Waveform Quality measurement meets or exceeds specifications when the following requirements are
met:
• The frequency of the signal being measured must be in the range of 412 MHz to 483 MHz, 800 MHz to 960
MHz, or 1.7 GHz to 2.0 GHz, and within 100 kHz of the expected frequency.
• The signal level into the test set’s RF IN/OUT connector must be in the range of -25 dBm to +37 dBm, and
within 9 dBm of the expected input power (see “RFANalyzer:AUTO:POWer[:SELected]?” ) to meet
specifications.
Related Topics
“READ? Subsystem”
“SETup:WQUality”
“INITiate”
“FETCh:WQUality”
“Test Adherence to Standards”
