Channel Power Measurement Troubleshooting
Interpreting Integrity Indicator values
If Over Range (5) is returned; the input power has exceeded +37 dBm or is greater than 8 dB above the
expected power level of the receiver.
If Under Range (6) is returned; the input power is below -69 dBm or is less than -20 dB below the expected
power level of the receiver.
See “RFANalyzer:AUTO:POWer[:SELected]?” on page 497 for the GPIB command to query expected power.
If the signal has both over range and under range conditions, only the over range (5) will be indicated.

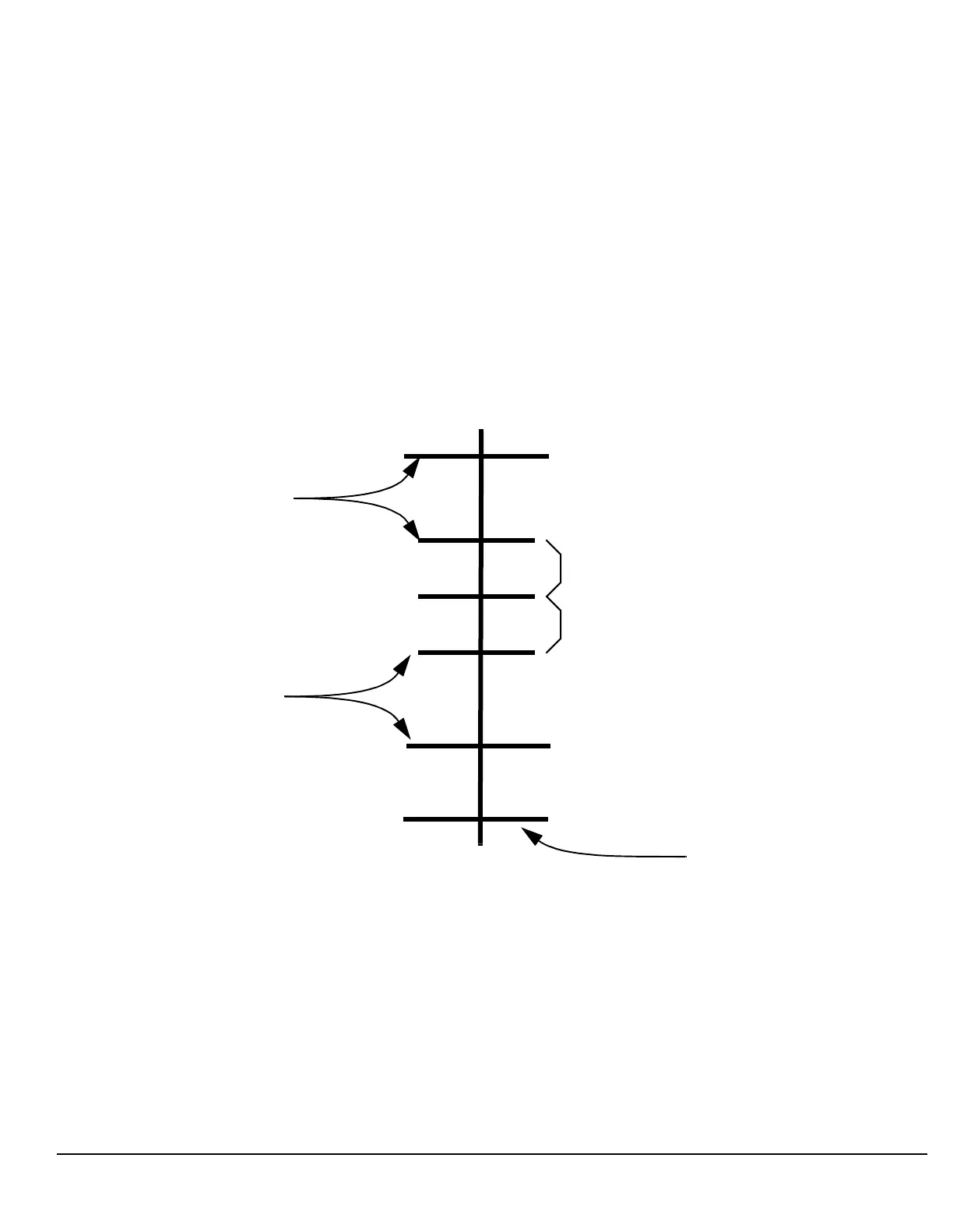

Figure 26. Channel Power Under Range/Over Range Integrity Indicators
Related Topics
“Integrity Indicator” on page 222
“Channel Power Measurement Description” on page 44
+8 dB
-20 dB
-61 dB
-69 dB
+37 dBm
Capture Range
Over Range
Under Range
NAN (Not a Number)
Integrity Indicator
Level (relative to expected power)
Expected
Power
