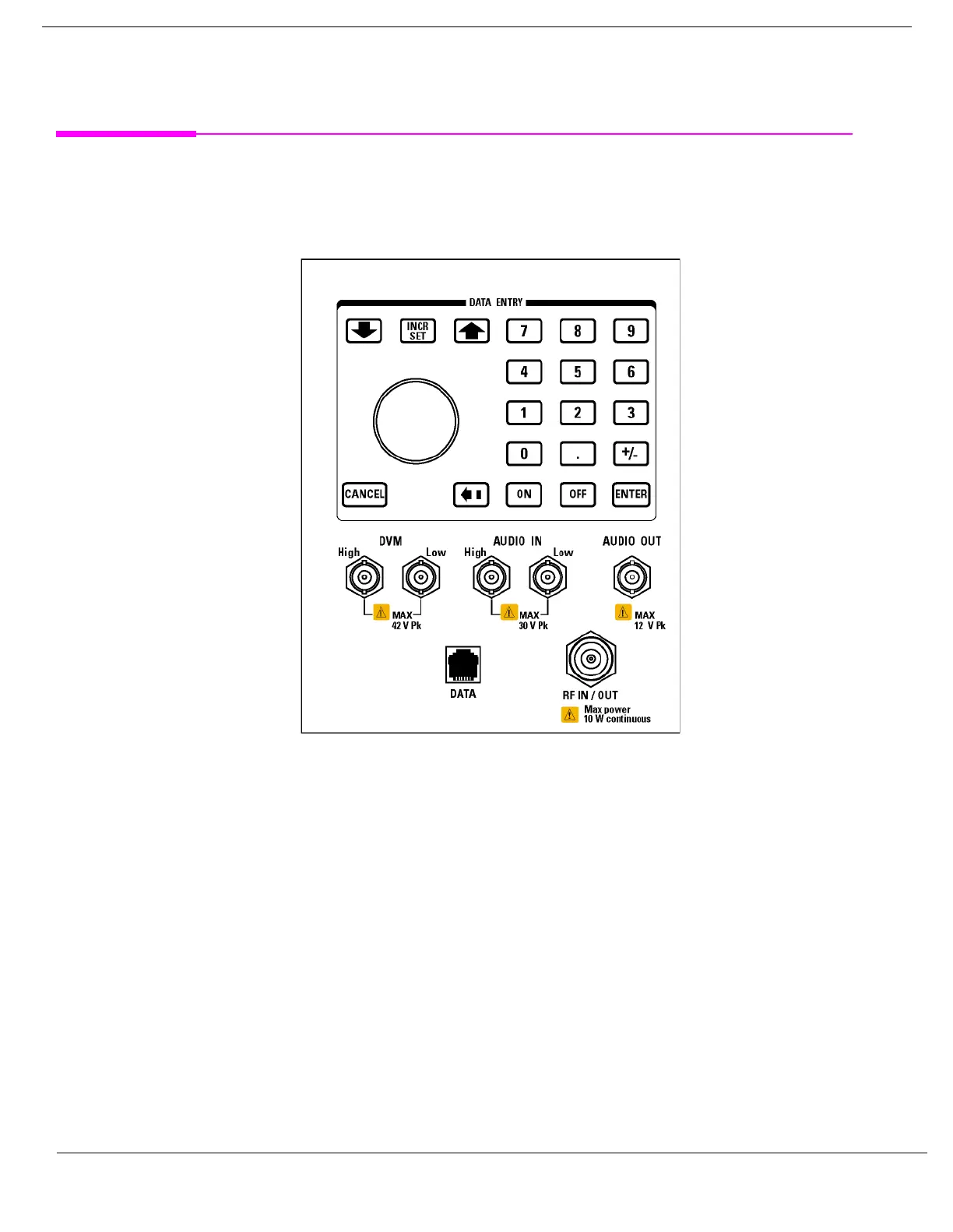

Front Panel Connectors
Front Panel Connectors
Description
AUDIO IN
The input to the audio analyzer is a floating input differential amplifier. Both the AUDIO IN High and AUDIO
IN Low BNC connectors should be connected to provide noise immunity. Refer to the technical specifications
for more information.
AUDIO OUT
This BNC connector accesses to the test set’s audio generator. Refer to the technical specifications for more
information.
