Chapter 4 167

Calibration

Adapter Removal-Insertion

4. Calibration

Adapter Removal-Insertion

About Adapter Removal

Adapter removal is a technique used to remove any adapter characteristics form the

calibration plane. Usually, 2-port network analyzers removes adapter characteristics by

performing two sets of full 2-port calibration as shown below.

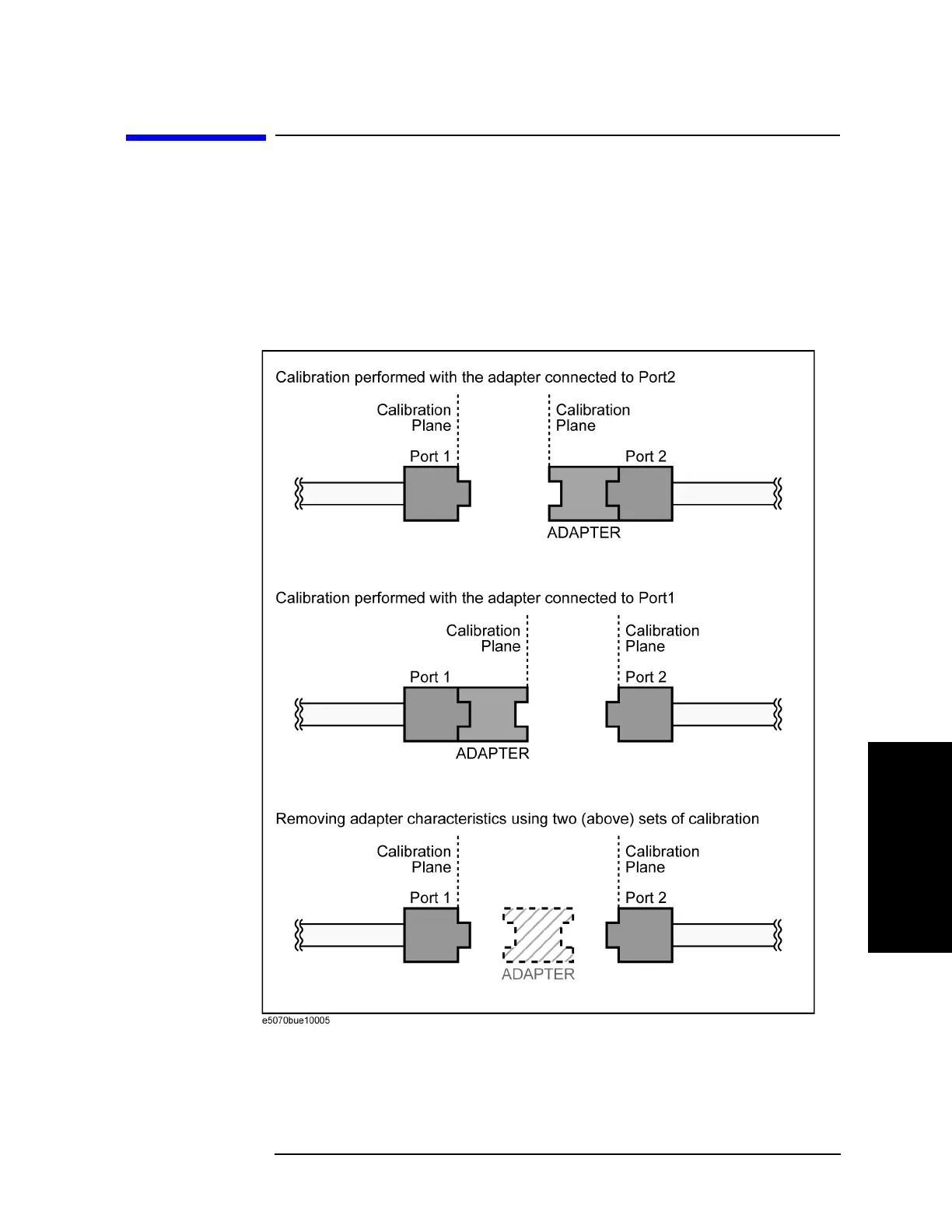

Figure 4-43 Adapter removal
