Chapter 10 357
Data Output
Saving and Recalling Instrument State
10. Data Output
Recall Procedure
Follow the procedure below to recall internal data from the E5070B/E5071B.
NOTE If you recall a file that includes traces (its content was set to State &Trace or All when it
was saved), the trigger source is automatically set to Manual.
Step 1. Press .
Step 2. Press Recall State.
Step 3. When you want to recall State01.sta - State08.sta, Autorec.sta
Press State01 - State08 or Autorec.
When you want to recall other files
1. Press File Dialog... to open the Open dialog box. Figure 10-3 illustrates the Open dialog
box.
2. Select the folder and the file using the external keyboard and mouse.
3. Click Open.

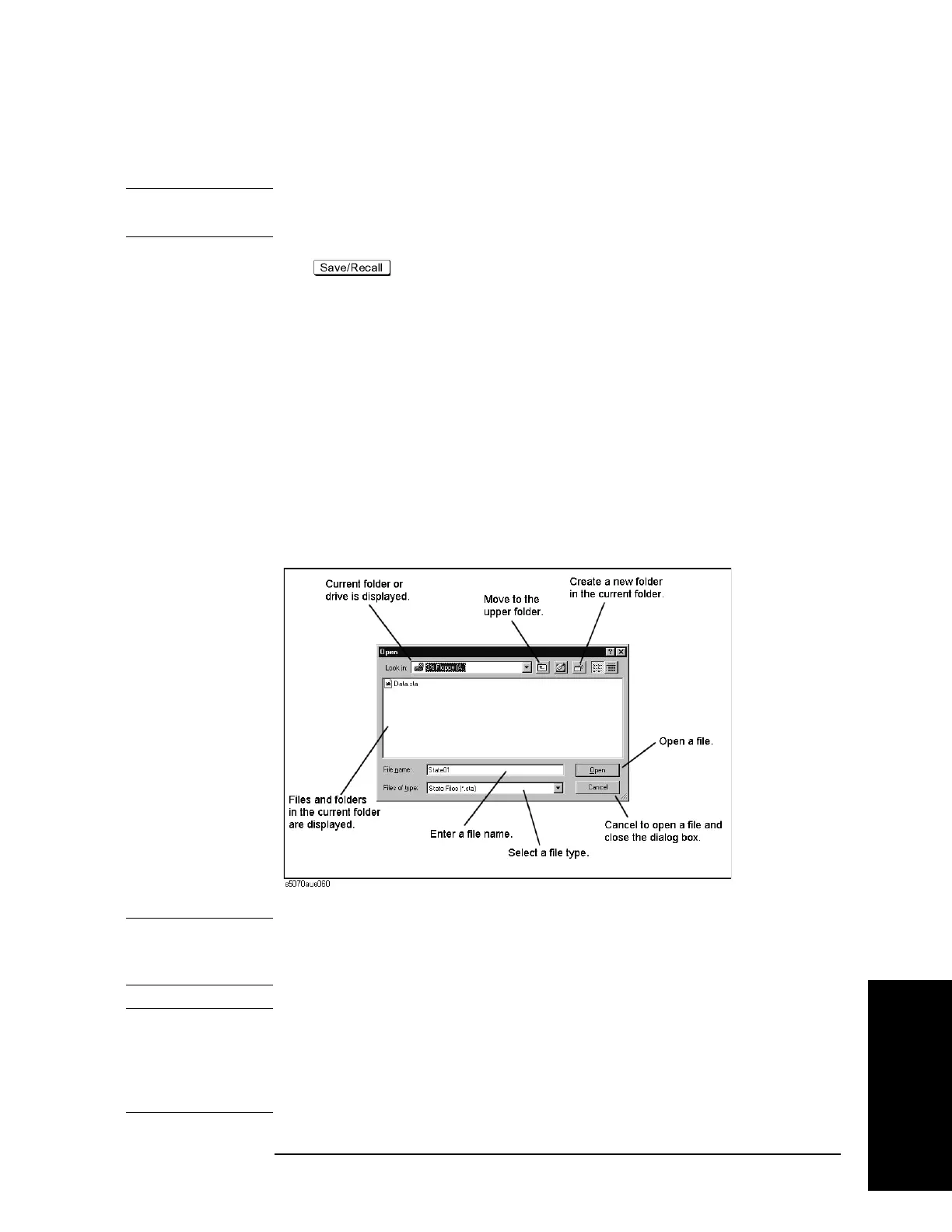

Figure 10-3 Open dialog box
NOTE Do not press the disk eject button while the floppy disk access lamp is on. Trying to
forcefully pull the floppy disk out while the lamp is on may damage the floppy disk or disk
drive.
NOTE When a user file is used in “Extending the Calibration Plane Using Network
De-embedding” on page 285, “Determining Characteristics After Adding a Matching
Circuit” on page 287, or “Determining the Characteristics that Result from Adding a
Matching Circuit to a Differential Port” on page 303 and the setup status is saved, a recall
error will occur if the user file is not located in the same folder as when the state was saved.
