Chapter 15 497

Measurement Examples

Evaluating a Duplexer

15. Measurement Examples

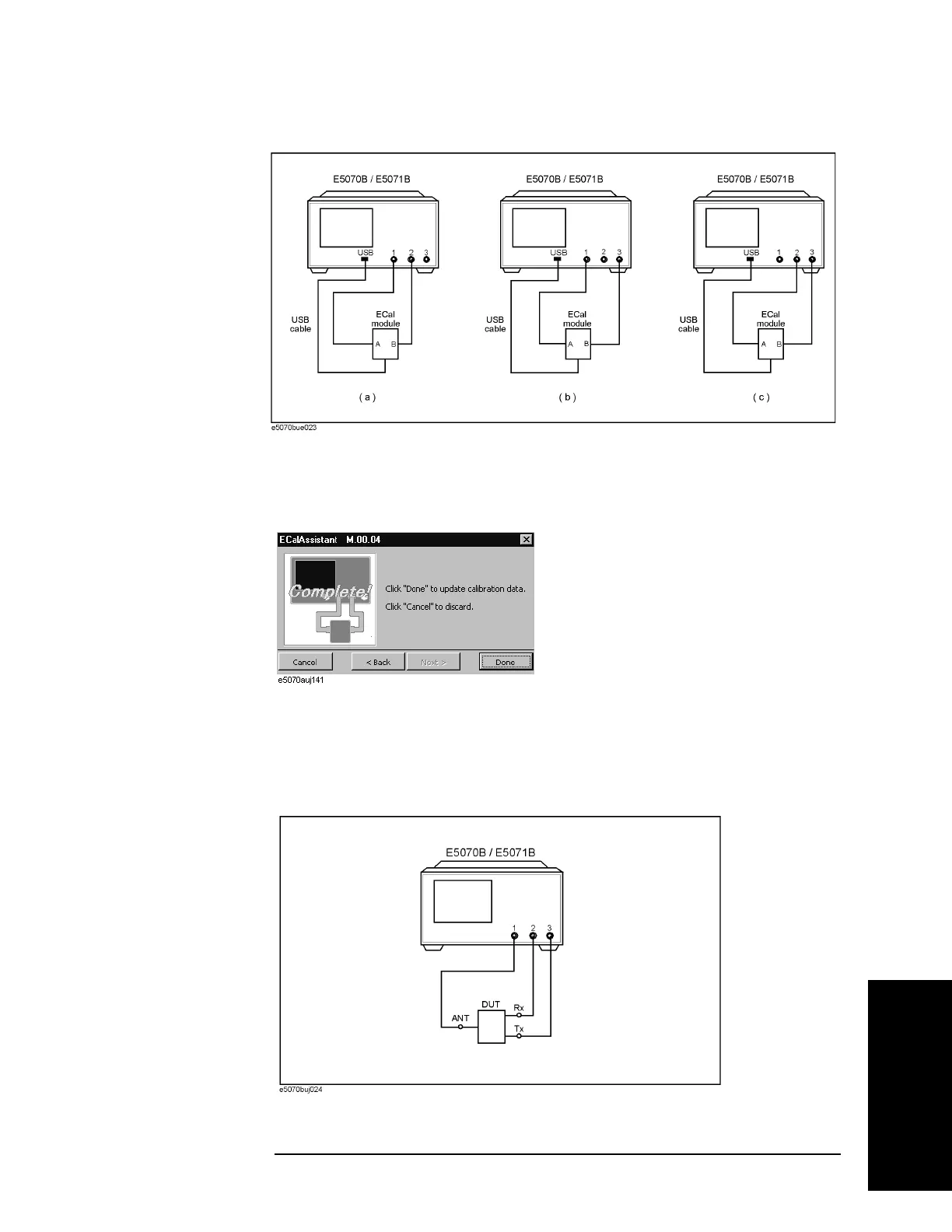

Figure 15-11 Connecting the ECal module

Step 8. The EcalAssistant (complete) dialog box (Figure 15-12) appears. Press the Done button to

terminate the calibration.

Figure 15-12 ECalAssistant (complete) dialog box

5. Connect the DUT

The DUT is connected to test ports 1, 2, and 3.

Figure 15-13 Connecting the DUT
