Chapter 15 529
Measurement Examples
Executing Power Calibration
15. Measurement Examples
Executing Power Calibration
This section shows an example of executing power calibration using the E4418B power
meter and the E4412A power sensor.
Overview of execution procedure
In this example, power calibration is executed according to the steps shown in Table 15-11.
Table 15-11 Execution Procedure of Power Calibration
Step Description
“1. Connecting Power Meter” on page 529 Connects the power meter to the E5070B/E5071B.
“2. Setting Address of Power Meter” on
page 530
Configures the power meter's GPIB address with the
E5070B/E5071B.
“3. Setting Stimulus Condition” on page 530 Sets conditions such as the power level and frequency.
“4. Executing Zero Adjustment and
Calibration of Power Sensor” on page 530
Executes zero adjustment and calibration of the power
sensor.
“5. Setting Calibration Data Measurement
Conditions” on page 530
Selects the port, selects the power sensor, sets the number
of measurements at one point, and sets the
tolerance during
power calibration
.
“6. Connecting Power Sensor” on page 531 Connects the power sensor.
“7. Measuring Calibration Data” on page 531 Executes the measurement of calibration data.
1. Connecting Power Meter
Connect the E4418B (GPIB address: 14) to the E5070B/E5071B as shown in Figure 15-39.

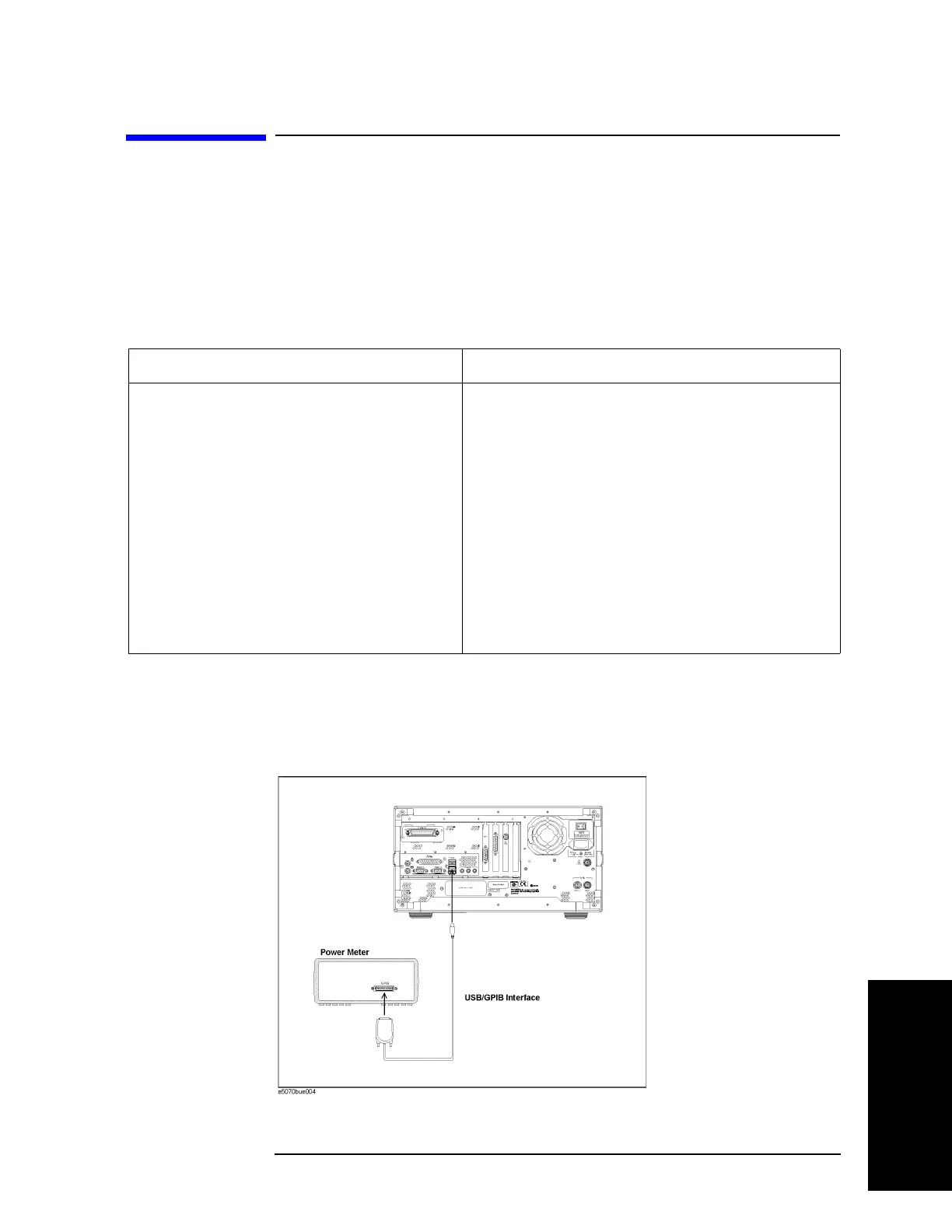

Figure 15-39 Connecting power meter
