Agilent Technologies ENA Series

To Next Page

To Previous Page

Chapter 15 507

Measurement Examples

Measuring the Deviation from a Linear Phase

15. Measurement Examples

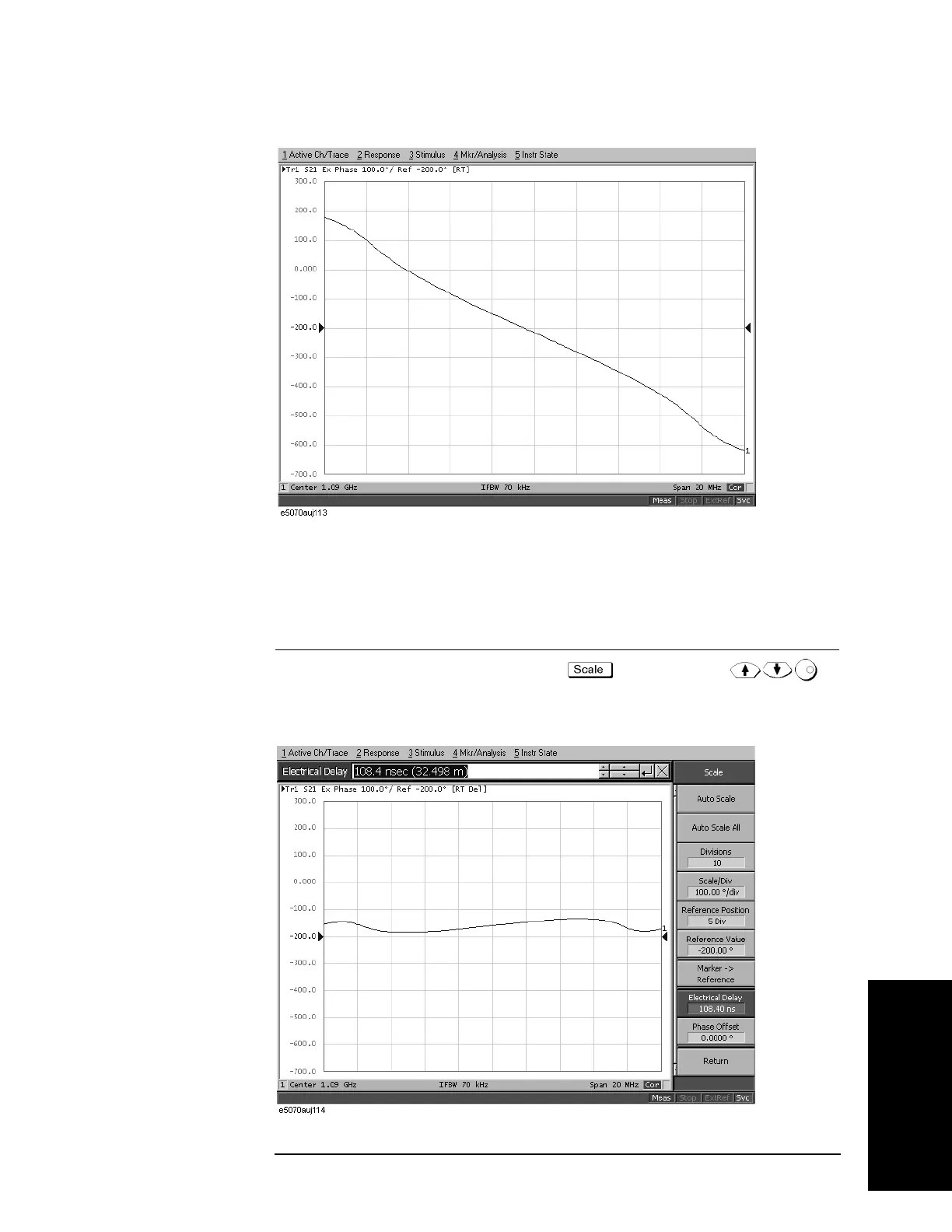

Figure 15-22 Phase characteristics of the DUT

5. Specify the Electrical Delay

The electrical delay is entered to flatten the phase trace.

Setup Description Key Operation

Entering the electrical delay

- Electrical Delay -

(Flattening a trace)

Figure 15-23 Entering the electrical delay
