510 Chapter 15

Measurement Examples

Measuring an Unbalanced and Balanced Bandpass Filter

1. Connecting the DUT

Connect the DUT to the E5070B/E5071B by using the instrument’s three test ports (Figure

15-26).

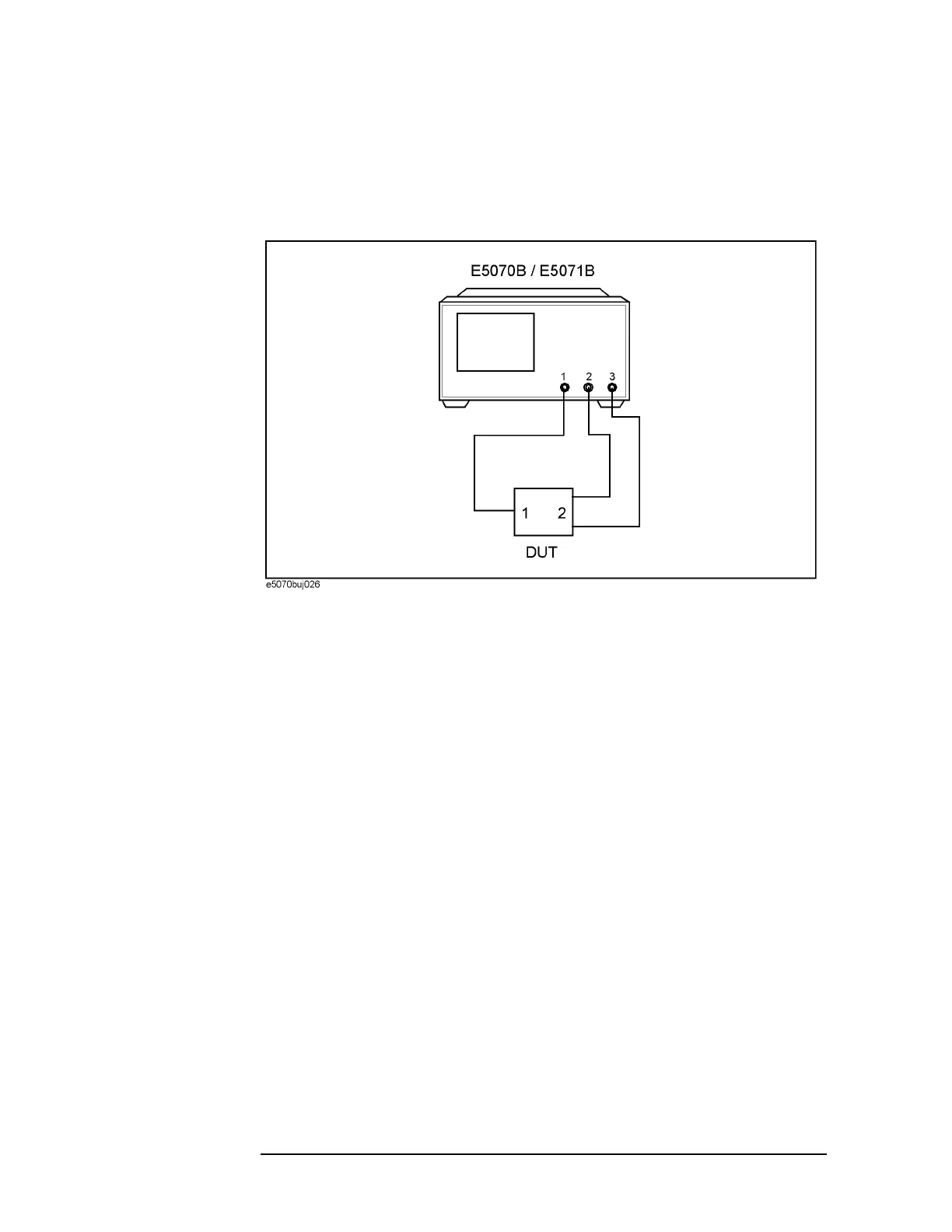

Figure 15-26 Connecting the DUT
