30 Chapter 2
Overview of Functions
Front Panel: Names and Functions of Parts
Front Panel: Names and Functions of Parts
This section describes the names and functions of the parts on the front panel of the
E5070B/E5071B. For more details on the functions displayed on the LCD screen, see
“Screen Area: Names and Functions of Parts” on page 40. For more about the functions of
softkeys, see Appendix D, “Softkey Functions,” on page 645.

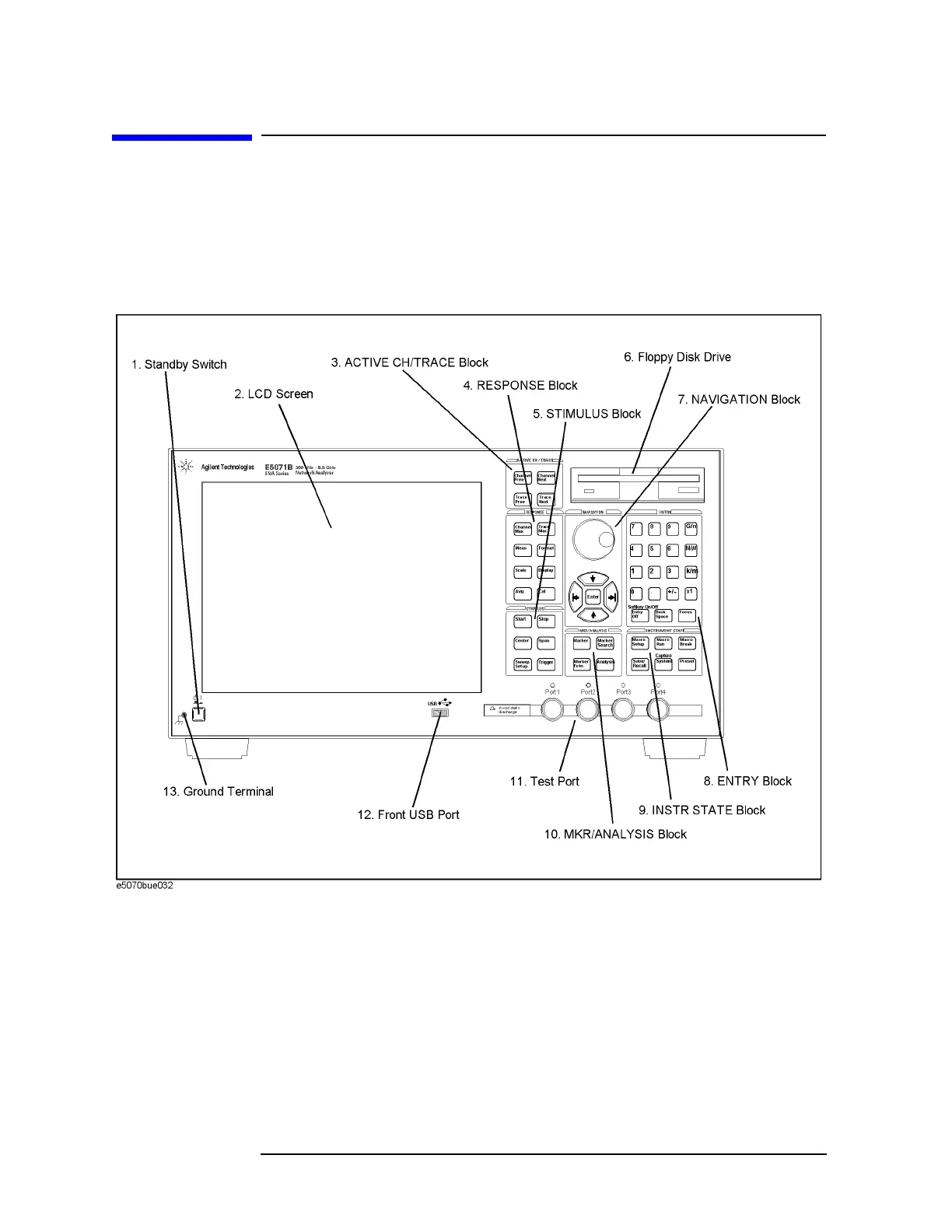

Figure 2-1 Front panel
