Chapter 12 417

Optimizing Measurements

Performing a Segment-by-Segment Sweep (segment sweep)

12. Optimizing Measurements

Sweep delay time and sweep time in a segment sweep

The definitions for sweep delay time and sweep time, which you can specify in the

segment sweep, are shown in

Figure 12-9.

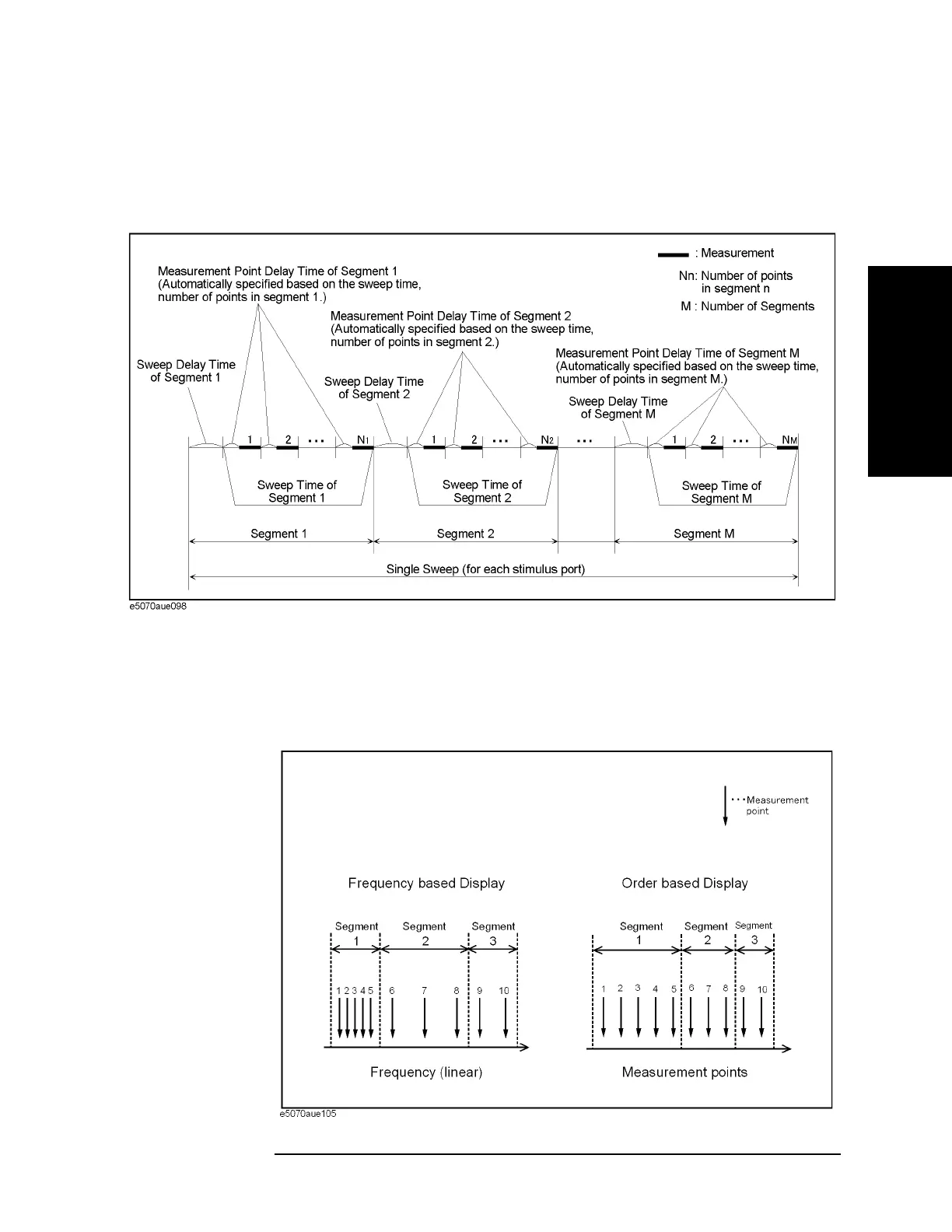

Figure 12-9 Sweep delay time and sweep time in segment sweep

Frequency base display and order base display

You can choose between frequency-based and order-based display as the method of

displaying traces when executing a segment sweep.

Figure 12-10 Concept of segment display
