390 Chapter 11

Limit Test

Bandwidth Test

The bandwidth test function can be used for testing bandwidth for the band-pass filters.

The bandwidth test finds the peak of a signal in the passband and locates a point on each

side of the passband at an amplitude below the peak specified in test setup. The frequency

between these two points is the bandwidth of the filter. Then the obtained bandwidth is

compared to miminum and maximum allowable bandwidth that you specify beforehand.

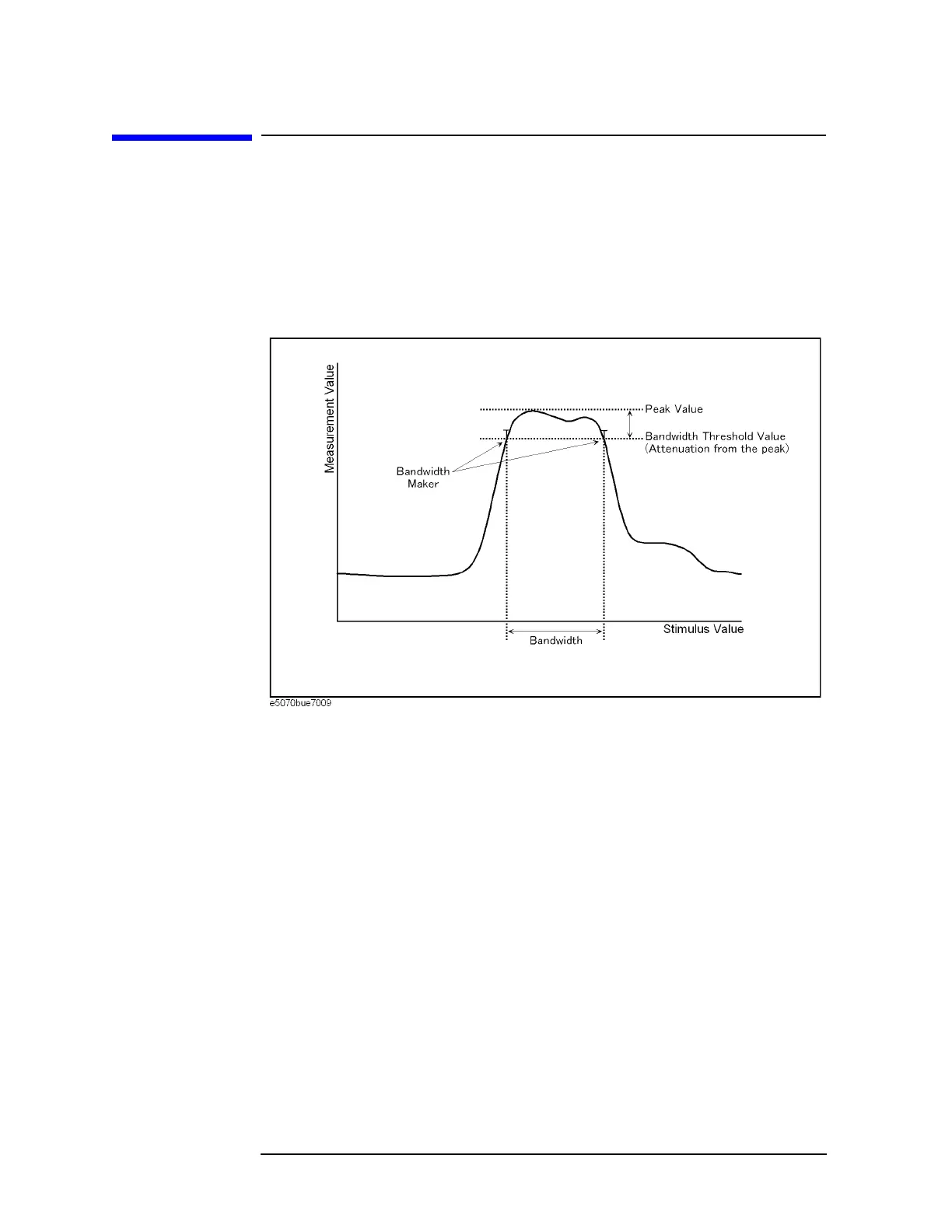

Figure 11-11 Bandwidth Test
