70 Chapter 3
Setting Measurement Conditions
Setting Stimulus Conditions
Setting Stimulus Conditions
You can set the stimulus condition for each channel independently.
Setting sweep type
You can select the sweep type from the following four types.
Sweep type Description
Linear Sweeps frequencies in linear scale.
Log Sweeps frequencies in logarithmic scale.
Segment Performs a sweep with linear sweep conditions (segments) combined. For
more information, refer to
“Performing a Segment-by-Segment Sweep
(segment sweep)” on page 415.
Power Sweeps power levels in linear scale.
The procedure for selecting the sweep type is as follows:
Step 1. Press or to select the channel for which you want to set the
sweep type.
Step 2. Press .
Step 3. Press Sweep Type.
Step 4. Press the desired softkey to select the sweep type.
Setting the Sweep Range
There are two ways to set the sweep range: by specifying the lowest and the highest values
and by specifying the center value and a span. Once the sweep range is set, it is possible to
change the range by substituting the lowest value, the highest value, or the center value
with a value (stimulus value) represented by a marker on the trace.

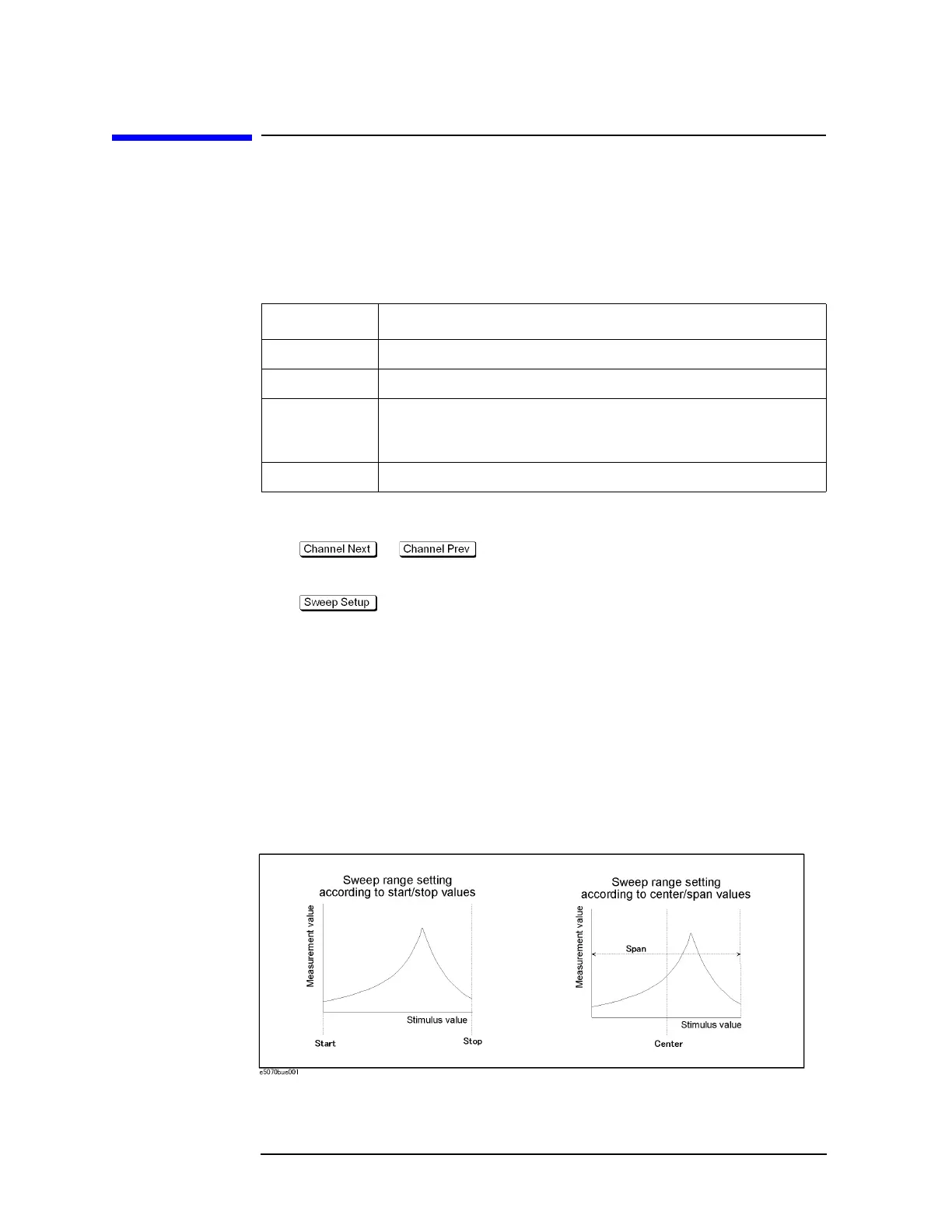

Figure 3-3 Setting the sweep range
