Chapter 6 261

Data Analysis

Analyzing Data on the Trace Using the Marker

6. Data Analysis

Aligning maker value displays

This section describes how to align maker value displays.

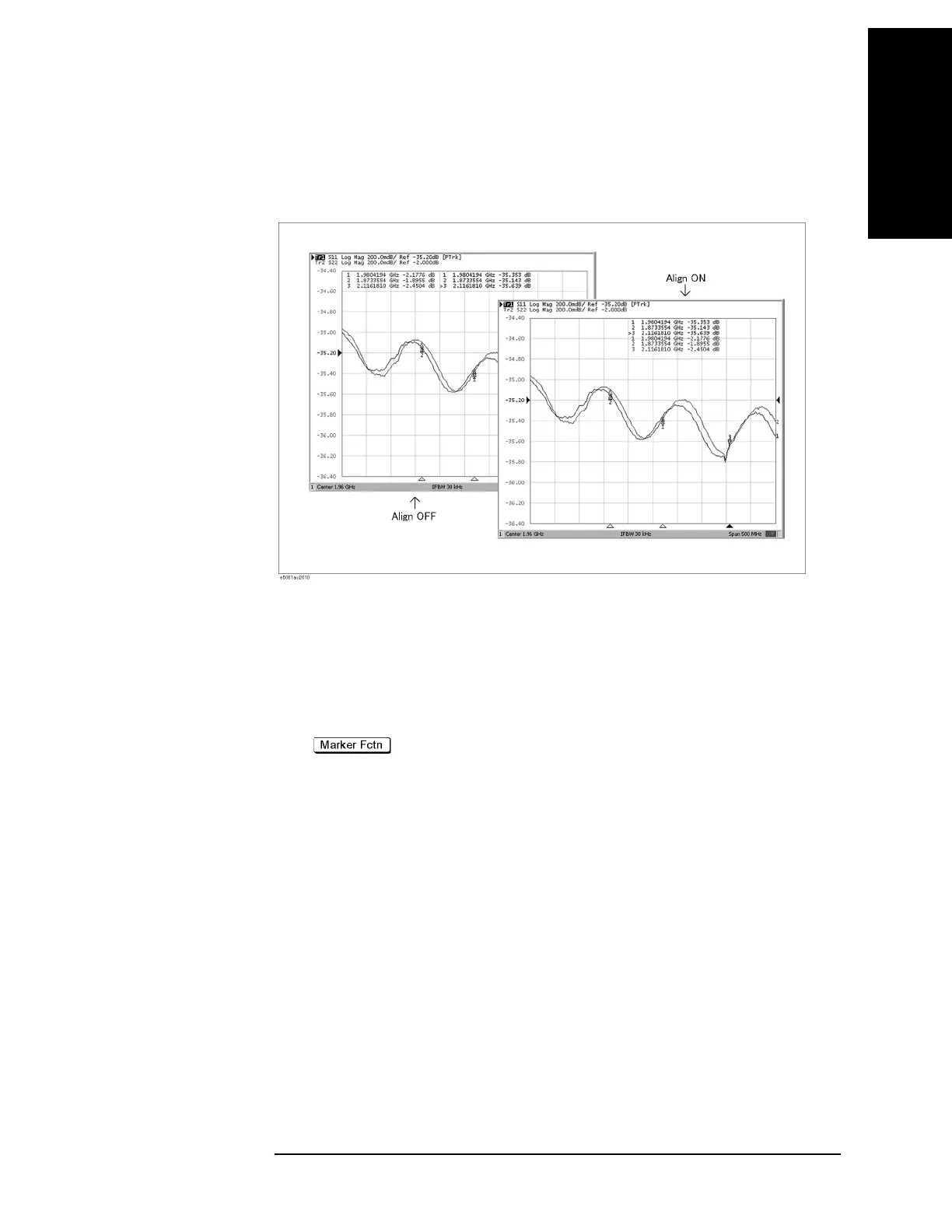

Figure 6-6 Marker coupling

(Align ON)

Displays marker values to align to the display position of trace 1.

Off

(Align OFF)

Displays marker values in the display position defined for each trace.

Operational procedure

Step 1. Press .

Step 2. Press Annotation Options.

Step 3. Press Align to toggle on/off.
