290 Chapter 7
Fixture Simulator
Obtaining Characteristics After Embedding/De-embedding 4-port Network
Obtaining Characteristics After Embedding/De-embedding
4-port Network
The 4-port network embedding/de-embedding feature allows you to add (embed) or
remove (de-embed) data of your desired 4-port network defined in a 4-port Touchstone
data file to or from measurement values through software-based processing. The
embedding/de-embedding supports three types of connection as shown in Figure 7-6.
NOTE This function is available with firmware version 3.50 or greater.

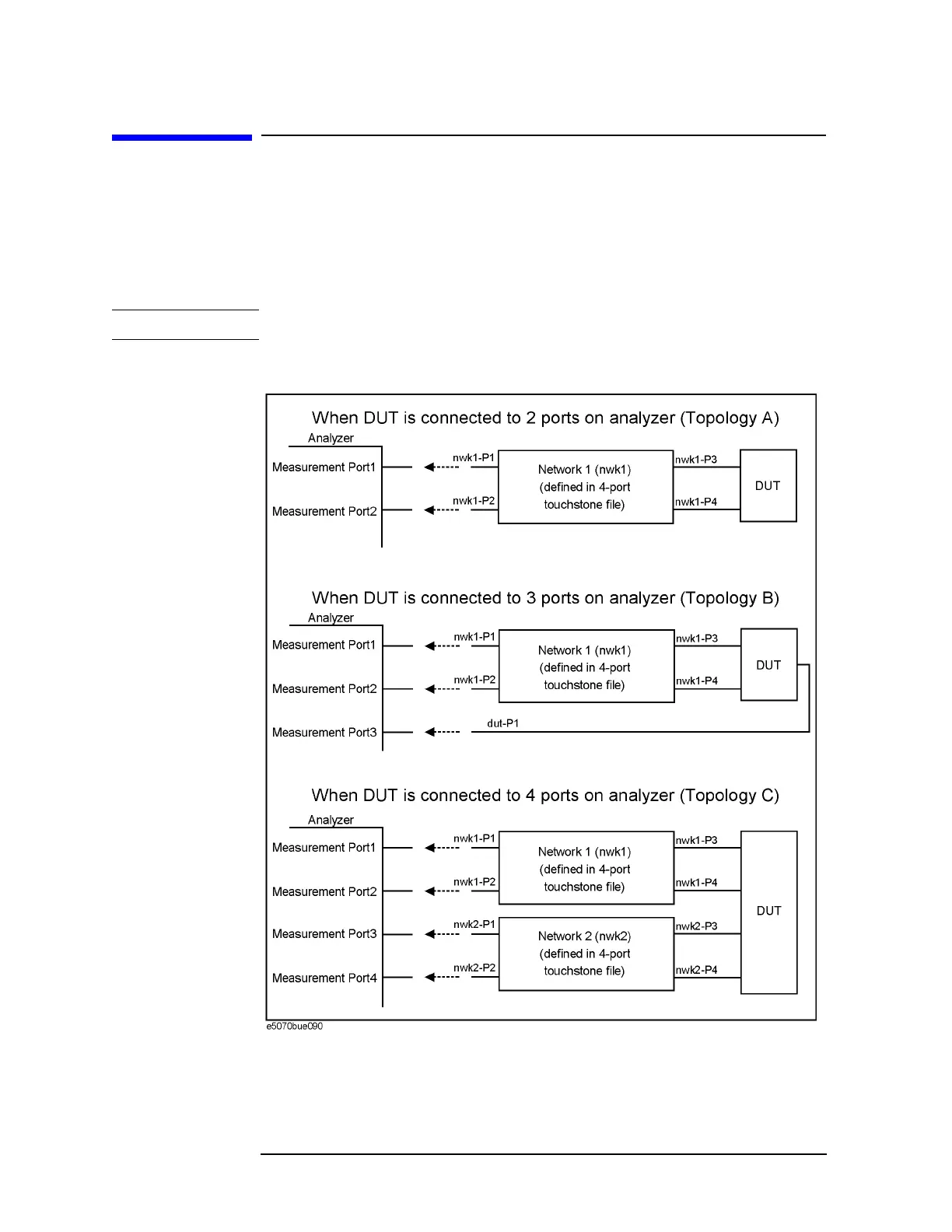

Figure 7-6 Connection that enables embedding/de-embedding network (4-port touchstone data)
