Overview of Functions
Screen Area: Names and Functions of Parts
5. Channel Window
Windows for displaying traces. Because a channel corresponds to a window, it is called a
channel window. When the outer frame of a channel window is displayed in light gray, the
channel is the active channel (the channel for which setup is being performed). In
Figure
2-2 on page 40, channel 1 (the upper window) is the active channel. To make a channel
active, use or . Clicking inside a channel window will also make
the channel active.

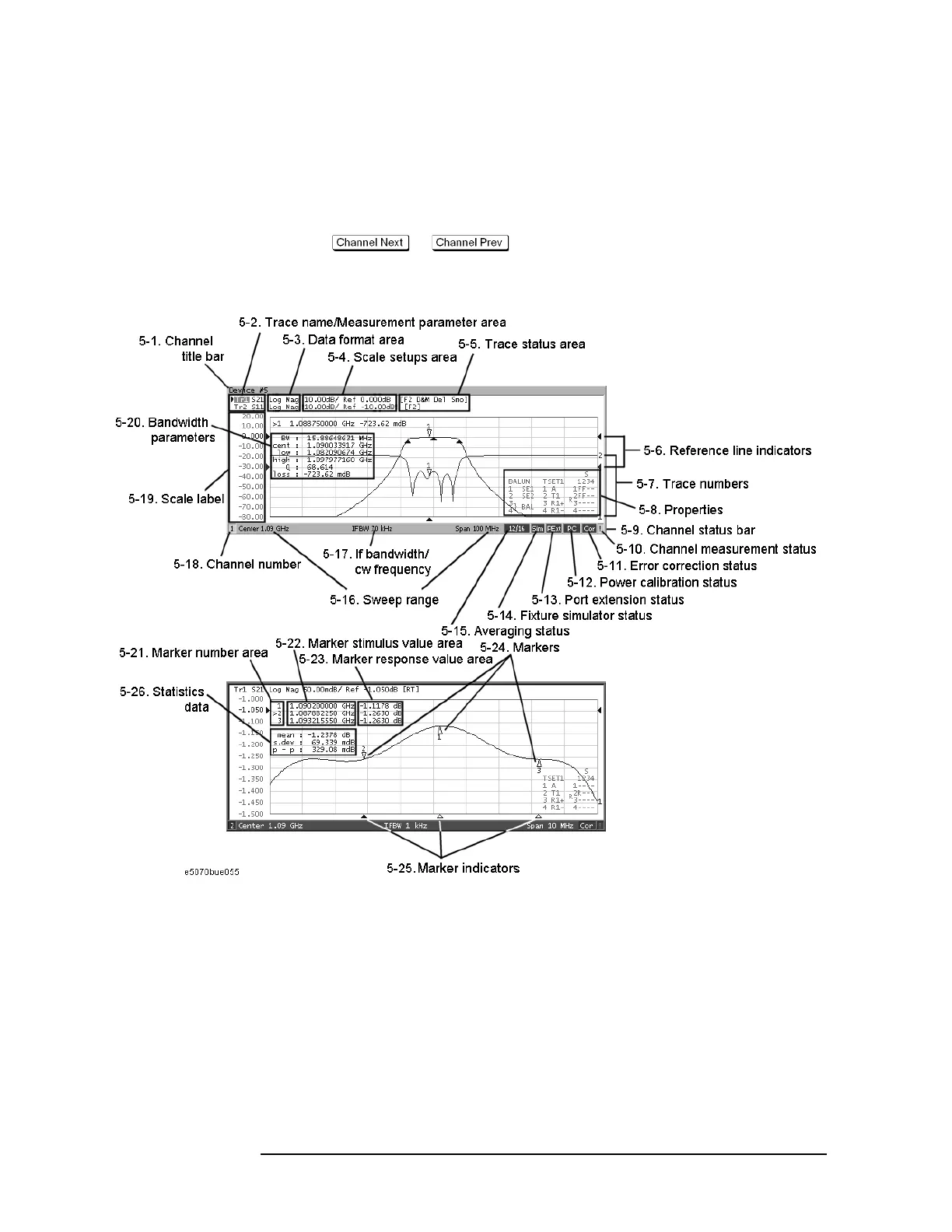

Figure 2-6 Channel Window
