Chapter 6 277

Data Analysis

Using the Equation Editor

6. Data Analysis

Using the Equation Editor

Measurement data (corrected data) can be calculated by creating a equation using the

equation editor.

The equation editor can create a equation label, too. The created equation label is displayed

on the measurement parameter area of the screen. For details, refer to

“Entering the

equation label” on page 279

The following describes how to use the equation editor.

Procedure to start the equation editor

Step 1. Press or to activate the channel for which you want to use the

equation editor.

Step 2. Press or to activate the trace for which you want to use the equation

editor.

Step 3. Press .

Step 4. Press Equation Editor....

Procedure to use the equation editor

The following screen appears when starting the equation editor.

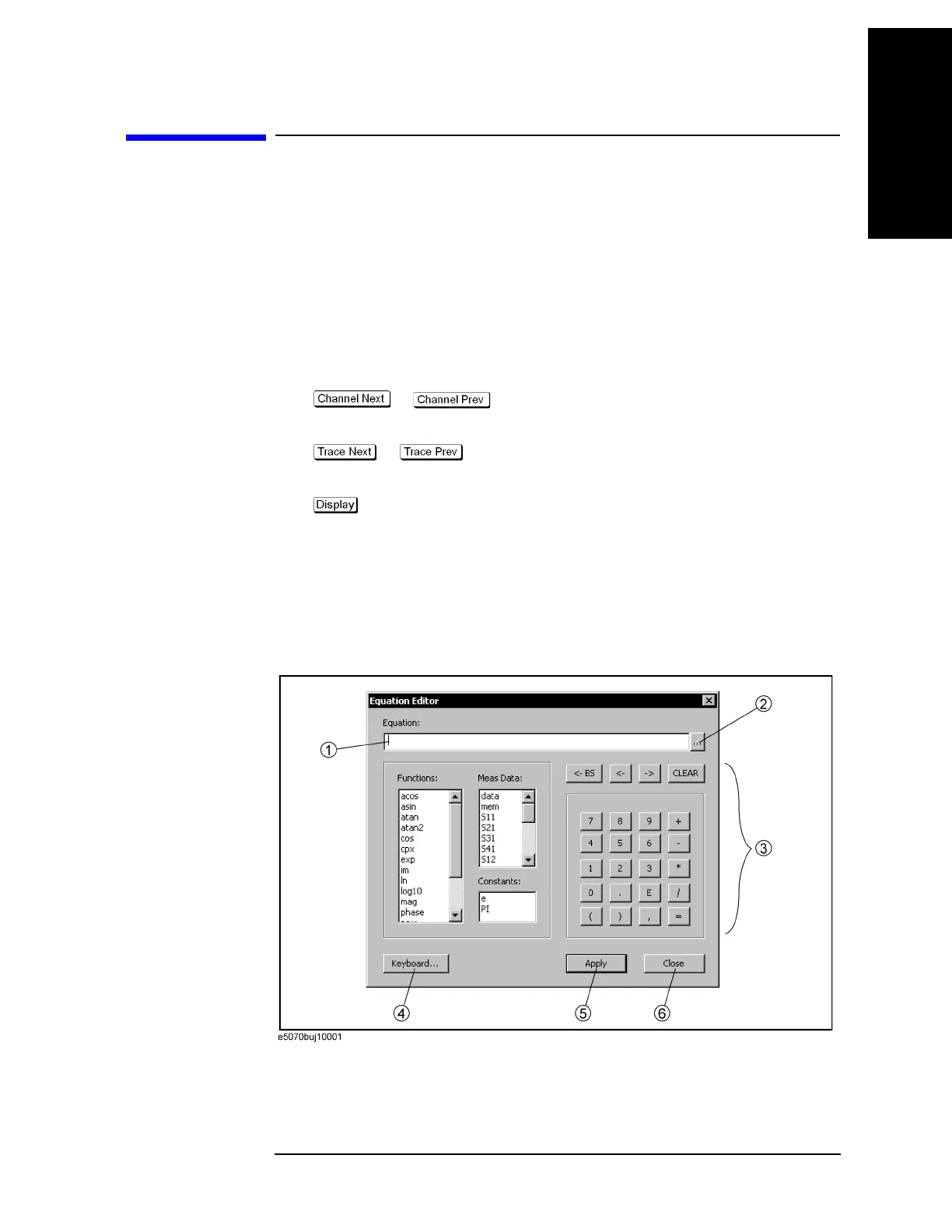

Figure 6-16 Equation editor
