258 Chapter 6
Data Analysis
Analyzing Data on the Trace Using the Marker
Setting up markers for each trace/Setting up markers for coupled
operations between traces
Makers can be set up and moved either in coupled operation for all traces in a channel or
independently for each trace.

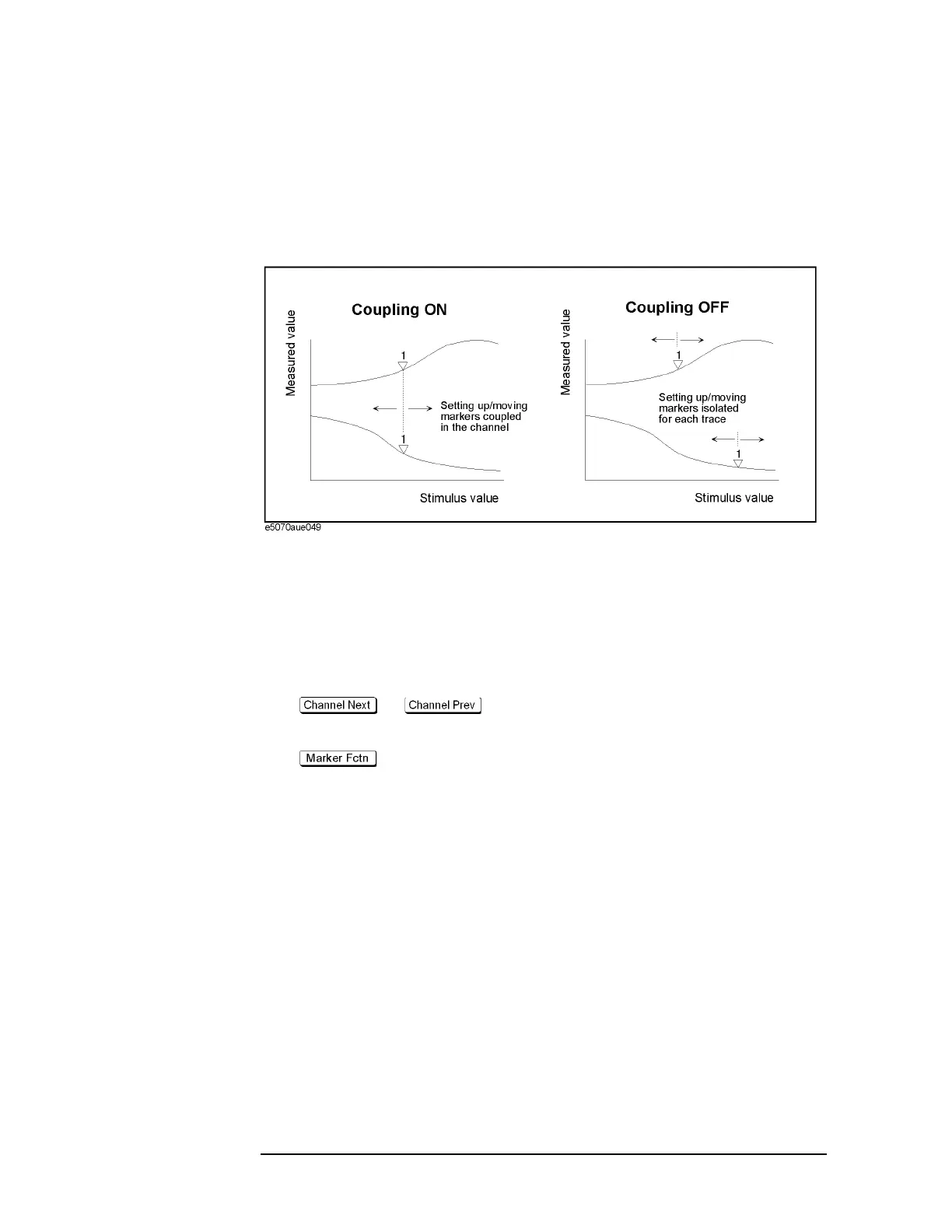

Figure 6-3 Marker coupling
Marker Couple is on
(Coupling ON)
Markers are set up and moved in coupled operation on all traces in a
channel.
Marker Couple is off
(Coupling OFF)
Markers are set up and moved independently for each trace.
Turning Marker Coupling On or Off
Step 1. Press (or ) to activate the channel on which the marker couple
will be set.
Step 2. Press .
Step 3. Press Couple to turn the marker coupling on or off.
To Next Page
