480 Chapter 14
Controlling E5091A
Setting the E5091A
Setting control line
The E5070B/E5071B can control the output from the control line (Figure 14-5) of the
E5091A and control the DUT (for example, switching the frequency band of the front end
module). The procedure is shown below. For the specifications of the DUT control line,
refer to E5091A Users & Service Guide.

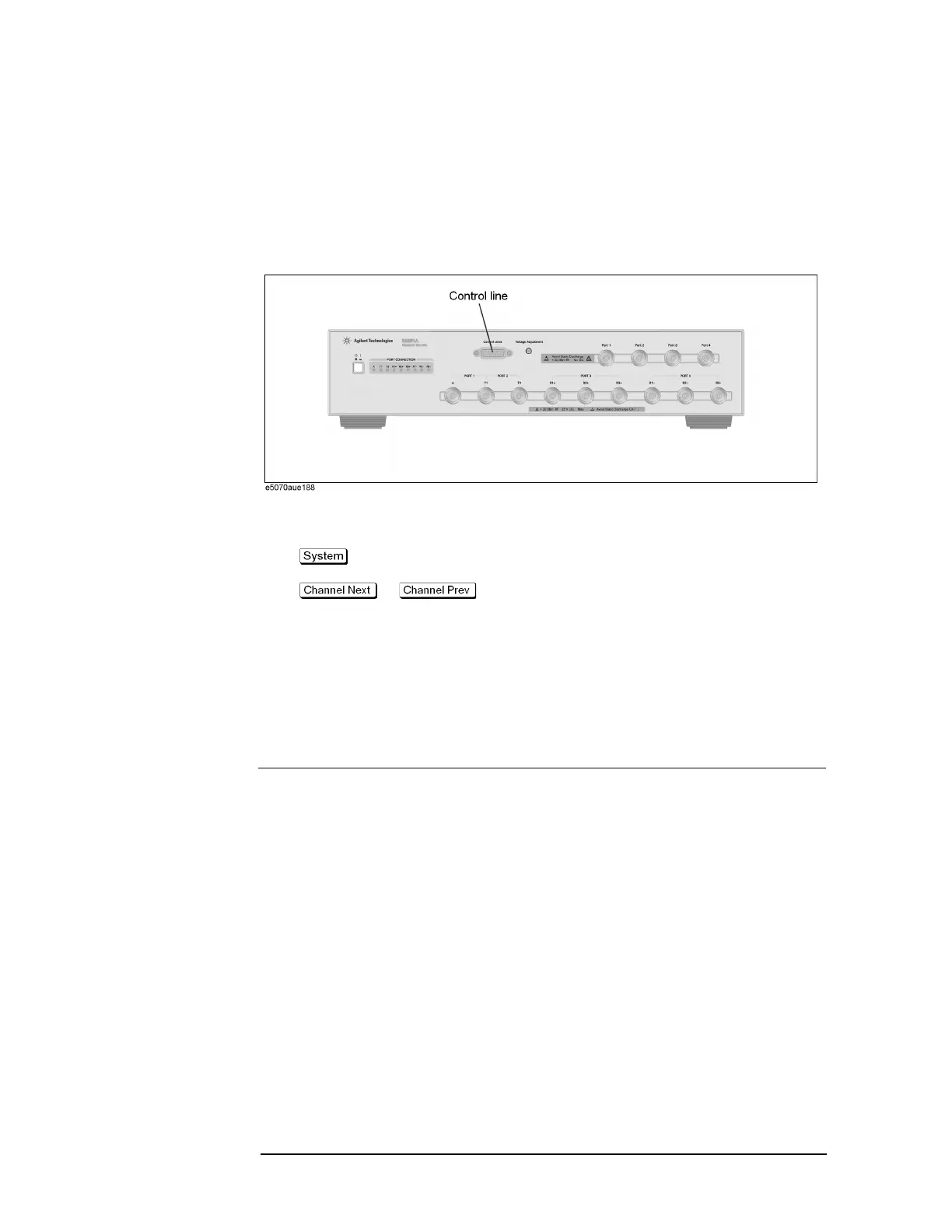

Figure 14-5 Control line
Operational procedure
Step 1. Press - E5091A Setup to display the E5091A setup menu.
Step 2. Press or to activate the channel for which you want to set the
control line.
Step 3. After the execution of “Selecting ID for E5091A” on page 476 and “Selecting the E5091A
Model” on page 477, press Control Lines to display the settings menu for the DUT control
line.
Step 4. Use the corresponding softkey to set the control line of the E5091A.
Softkey Function
Line 1, Line 2, Line 3, Line 4,
Line 5, Line 6, Line 7, Line 8
Set High/Low of each line of the control line.
Step 5. Execute Step. 3 through Step. 4 for all channels that you want to sweep.
