222 Chapter 4

Calibration

Receiver Calibration

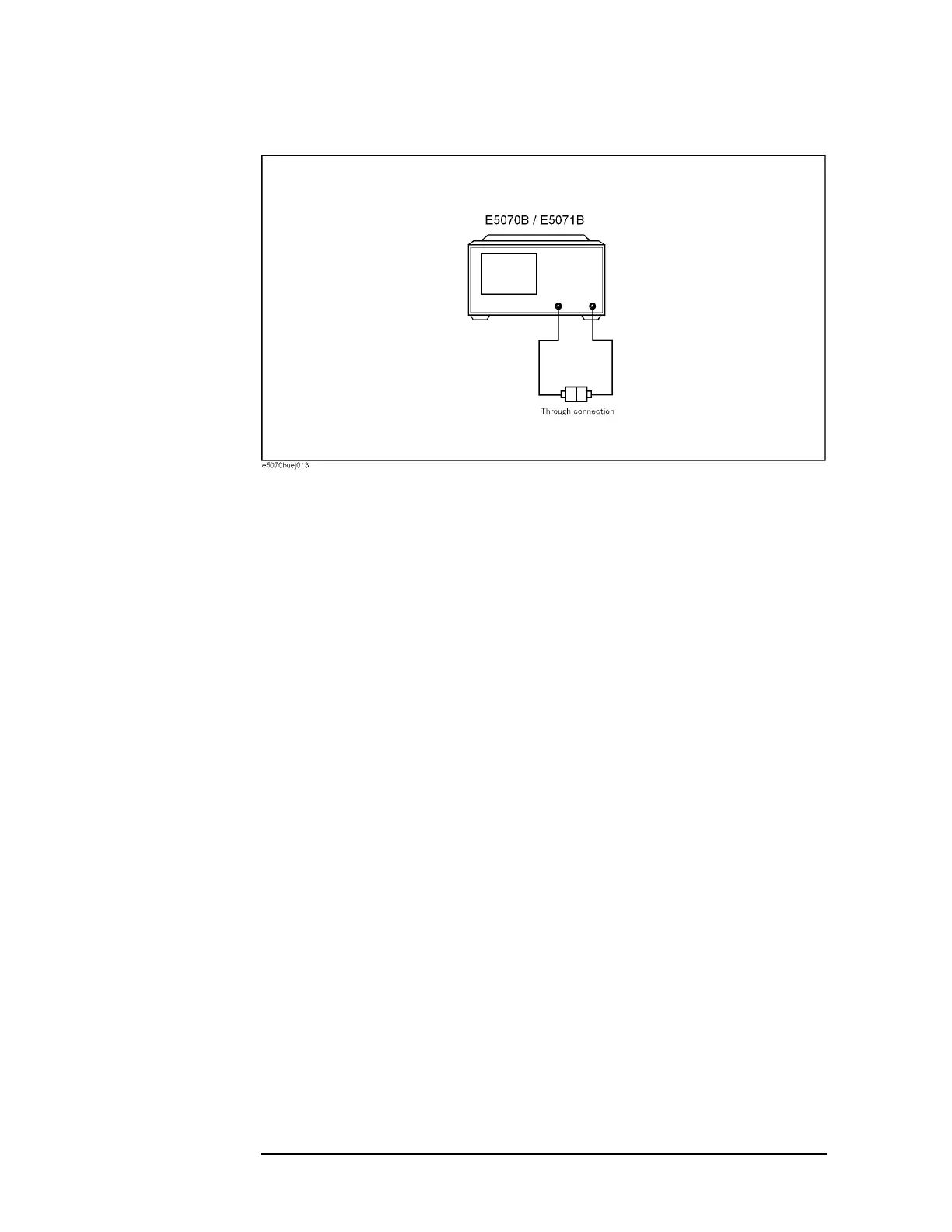

Figure 4-64 Example of connection between output port and receiver port

Step 7. Press Take Cal Sweep to start measurement of calibration data. This step allows the gain

of the receiver to be calibrated, turning on the error correction function automatically.
