296 Chapter 7

Fixture Simulator

Evaluating Balanced Devices (balance-unbalance conversion function)

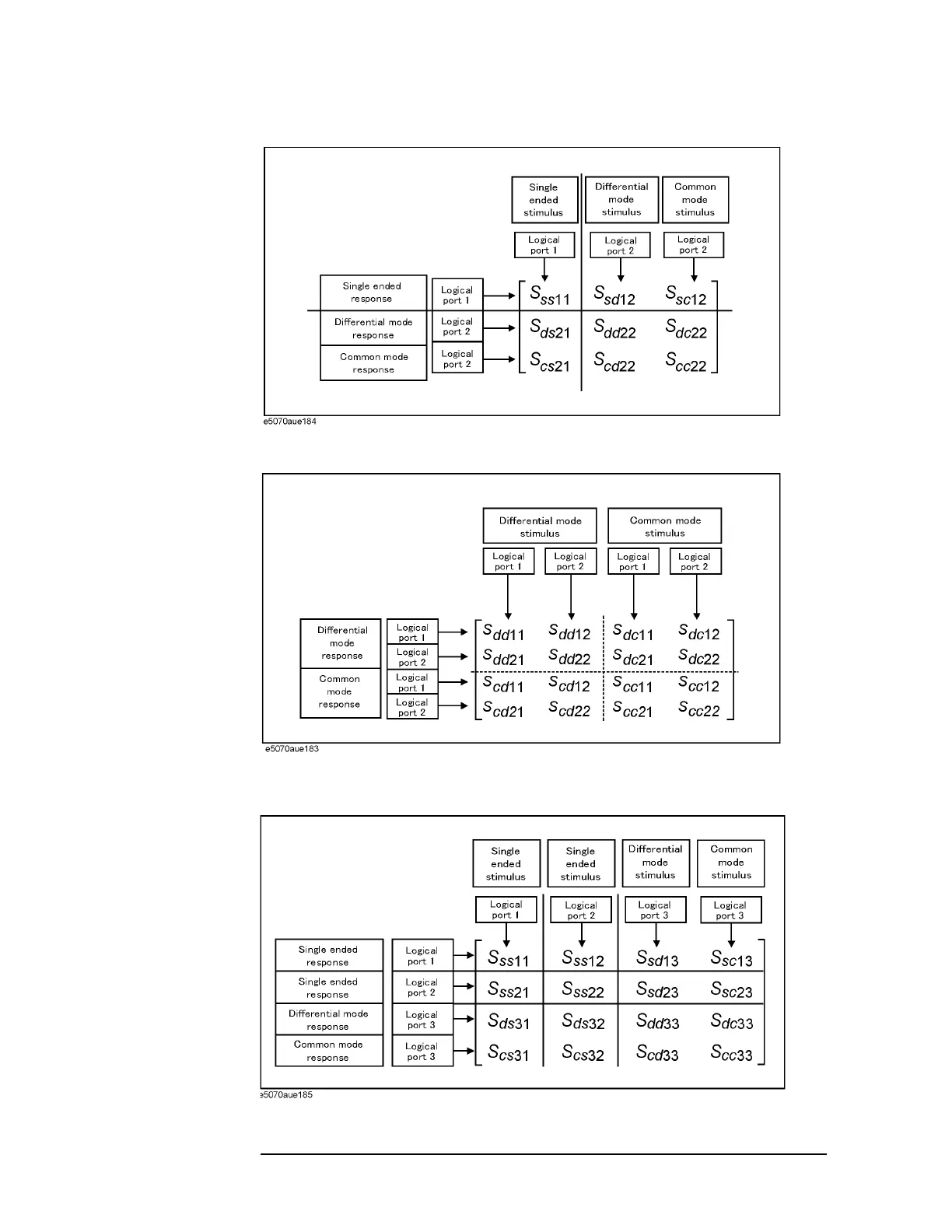

Figure 7-10 Mixed mode S-parameter when measuring a single-ended - balanced device

Figure 7-11 Mixed mode S-parameter when measuring a balanced - balanced device

Figure 7-12 Mixed mode S-parameter when measuring a single-ended - single-ended - balanced

device
