Chapter 15 525
Measurement Examples
Evaluating Transmission Characteristics of a Front End Module
15. Measurement Examples
Step 2. Set channel 1 to the active channel.
Setting Description Key Operation
Switch the active channel.
Step 3. Check the test ports assigned to ports 1 to 4 in the E5091A properties and connect the
4-port ECal module to those ports.

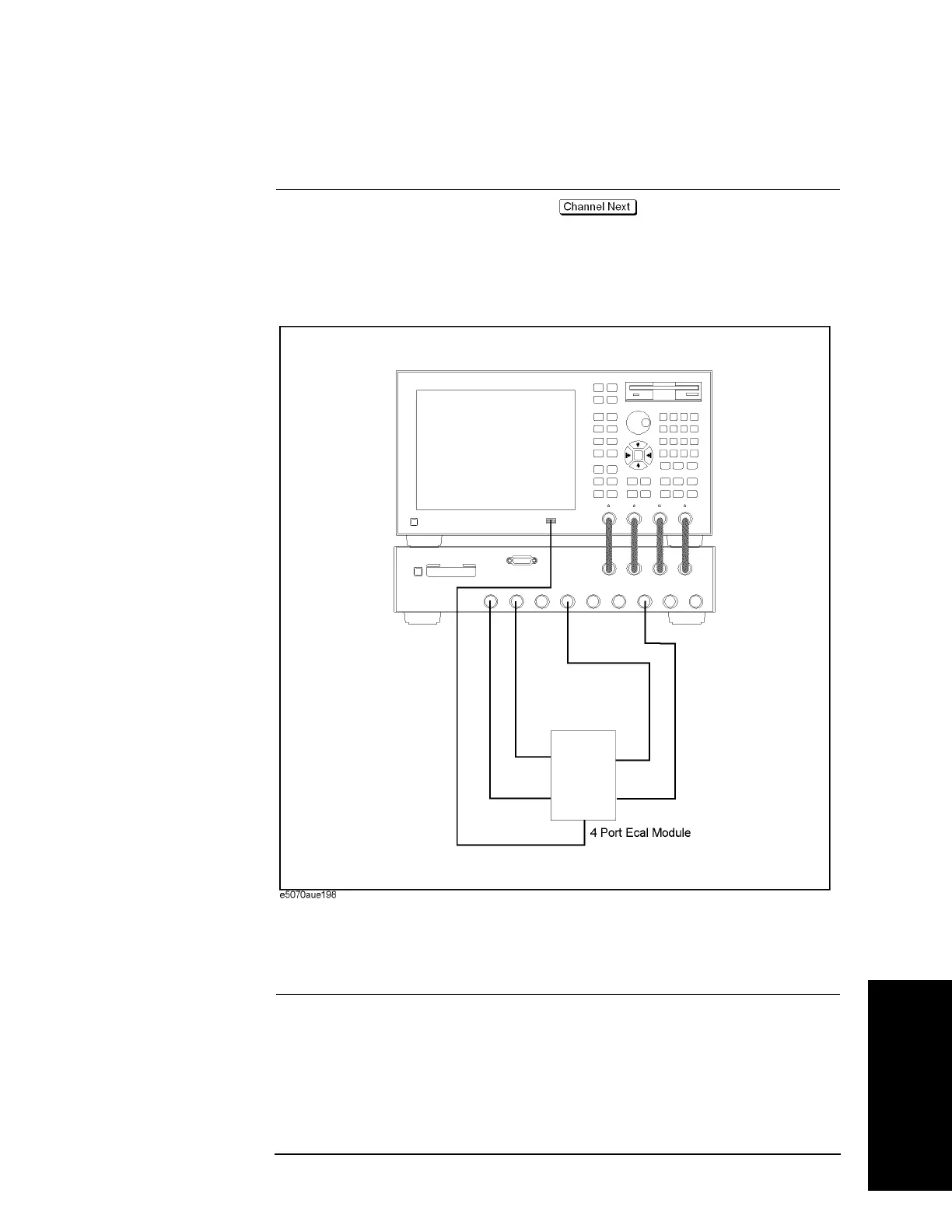

Figure 15-36 Connecting the 4-port ECal
Step 4. Execute the calibration.
Setting Description Key Operation
Select full 2-port calibration. 2-Port ECal
Select the port and execute the calibration. 1-2
