Chapter 3 63

Setting Measurement Conditions

Setting Channels and Traces

3. Setting Measurement

Conditions

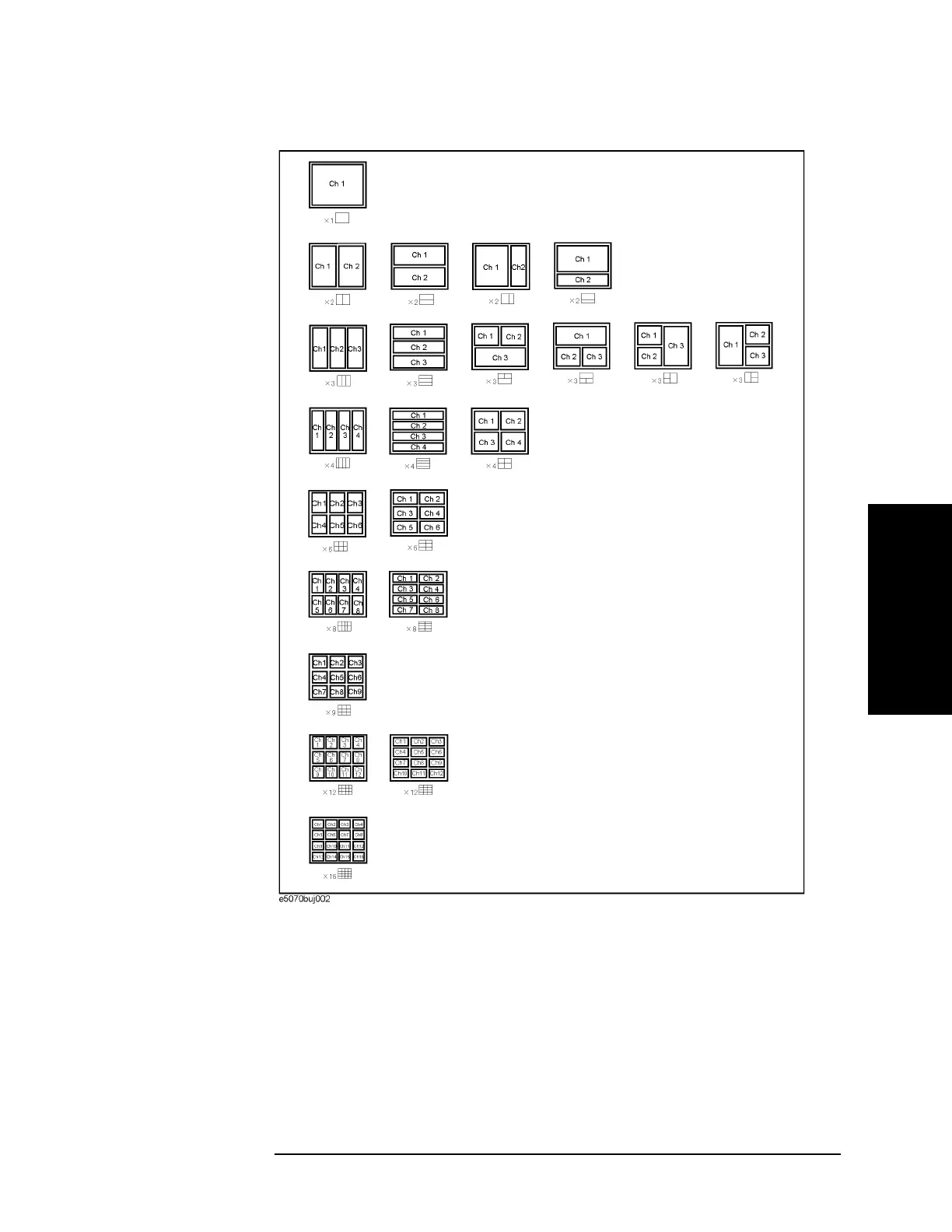

Figure 3-1 Layout of channel windows
