NanoSuite Explorer D
Agilent Nano Indenter G200 User’s Guide D-51

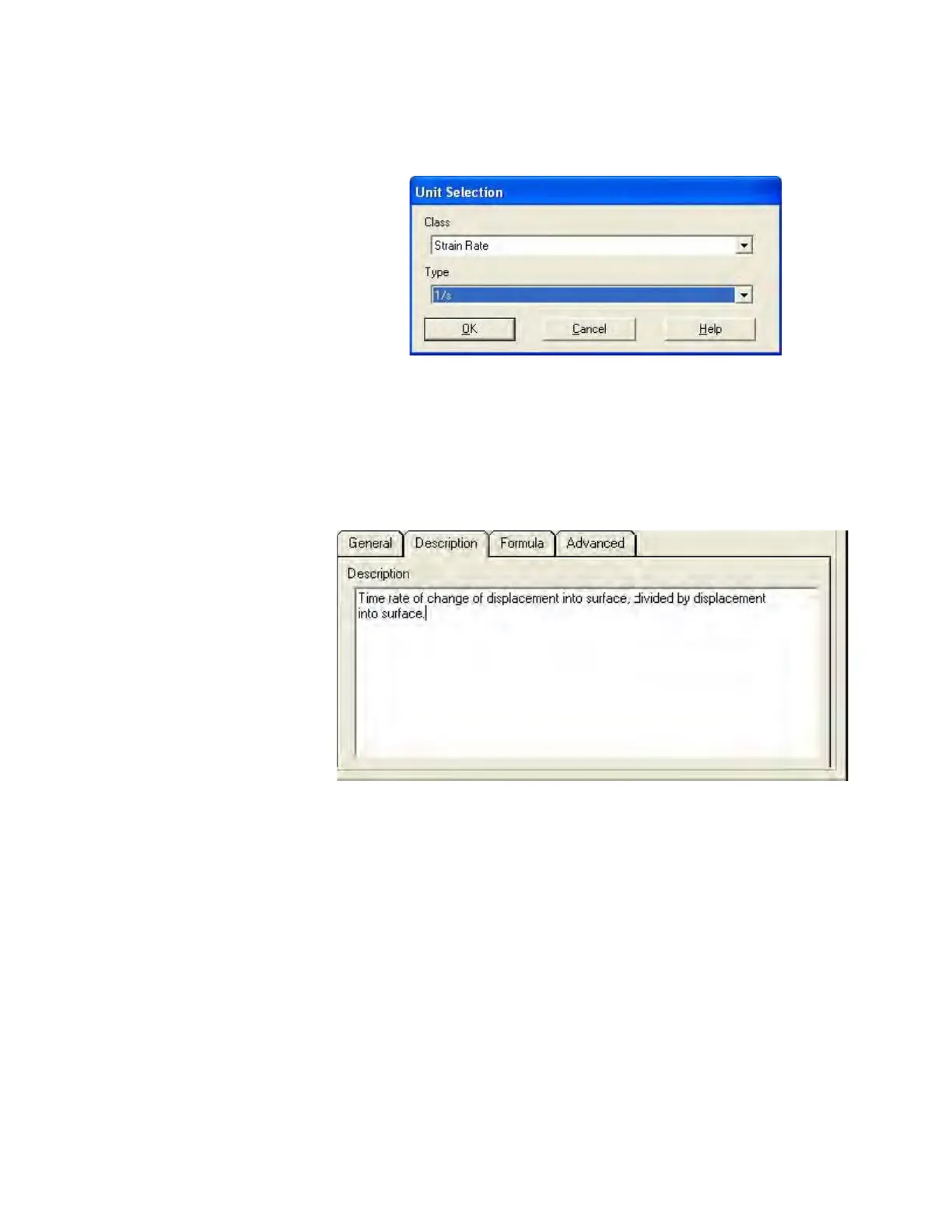

Figure D-62Unit Selection dialog box
24 Click OK.
25 Click the Description tab.
26 Edit the existing description to read as shown in Figure D-63.
Figure D-63New description
27 Click the Formula tab.
28 Click the Edit… button.
29 In the Formula Editor dialog box, delete the current formula.
30 In the left pick list, click on Value Functions.
31 In the right pick list, double-click on SlopeValue. The syntax for this
function is now in the formula window.
32 In the formula window, highlight the placeholder text Y-channel.
33 In the left pick list, select Channels.
34 In the right pick list, double-click on Displacement Into Surface.
35 Following the same procedure, replace the X-channel placeholder
text with Time.
