The following entries will be site- and installation-specific. Contact your customer support
representative for more information regarding your particular installation.
Table 2-7 Default Outbound SIP Proxy Fields
OXE 9.0 Spatial Redundancy Mode Check this box if you are using an Alcatel-
Lucent OmniPCX 9.0 as your proxy server. The
following screen shows the fields that are
displayed if OXE 9.0 Spatial Redundancy
Mode is enabled for the default outbound SIP
proxy.

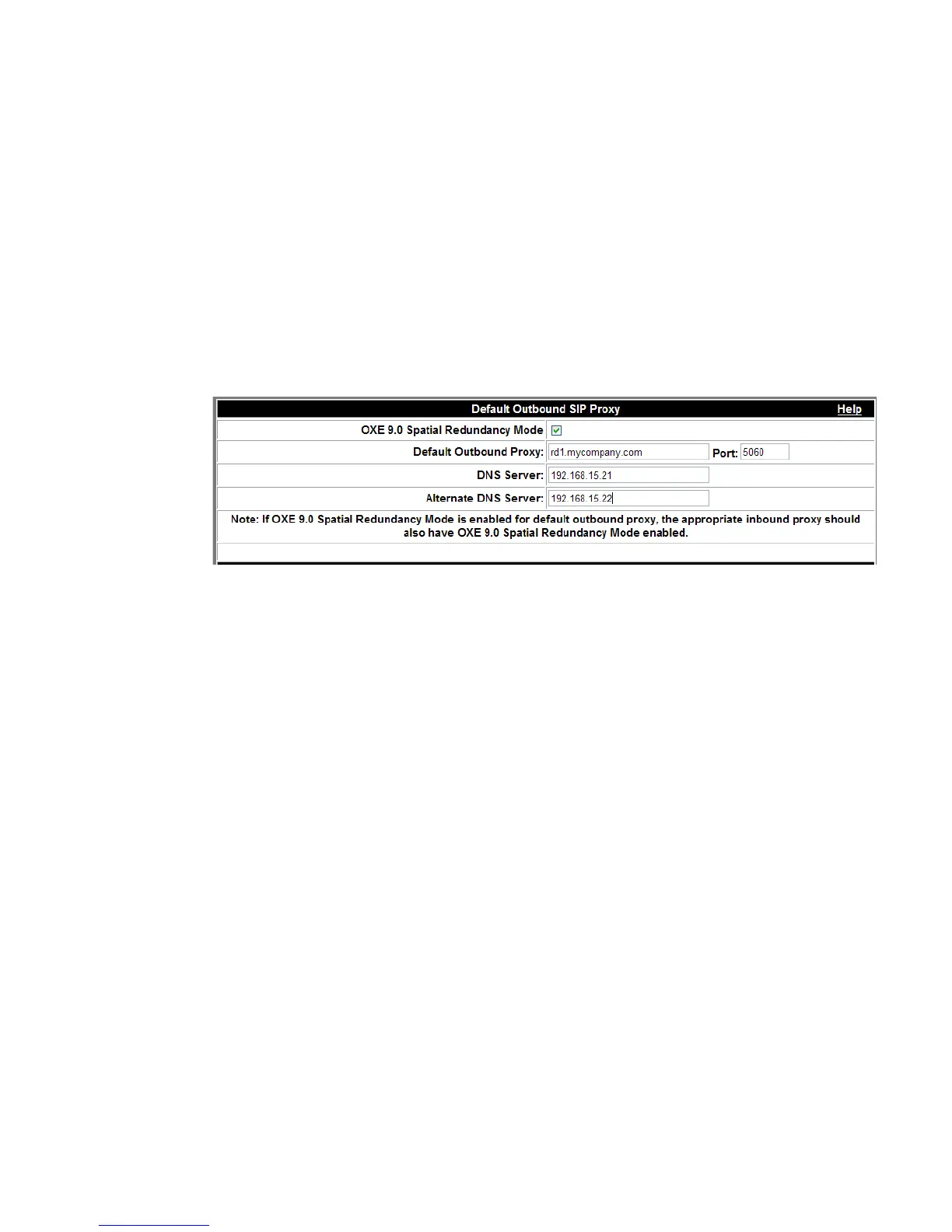

Figure 2-13 Outbound OXE 9.0 Spatial Redundancy Mode
Default Outbound Proxy (Port) If specified, all SIP invites will first go to this IP
address (When OXE 9.0 Spatial Redundancy
Mode is enabled, this can only be a name). If
other realms are specified, this address will be
overridden. (Port number associated with the
Default Outbound Proxy.)
DNS Server
(Only appears if OXE 9.0 Spatial Redundancy
Mode is enabled.)
This is the IP Address of the primary OXE 9.0
server.
Alternate DNS Server
(Only appears if OXE 9.0 Spatial Redundancy
Mode is enabled.)
This is the IP Address of the secondary OXE 9.0
server.
Alternate Outbound Proxy (Port)
(Appears if OXE 9.0 Spatial Redundancy Mode
is NOT enabled.)
If specified, all SIP invites will go to this IP
address (or name) if the Default Outbound
Proxy is unavailable. (Port number associated
with the Alternate Outbound Proxy.)
Failover Timeout (Seconds)
(Appears if OXE 9.0 Spatial Redundancy Mode
is NOT enabled.)
If the Default Outbound Proxy cannot be
contacted within this amount of time (in
seconds), the Alternate Outbound Proxy is
contacted.
